Design of the frequency converter
2
2.1
Identifying the converter
Main components of the inverter
Each SINAMICS G120 inverter comprises a
Control Unit and a Power Module.
•
The Control Unit controls and monitors the
Power Module and the connected motor.
•
The Power Modules are available for motors
with a power range of between 0.37
kW and
250 kW.

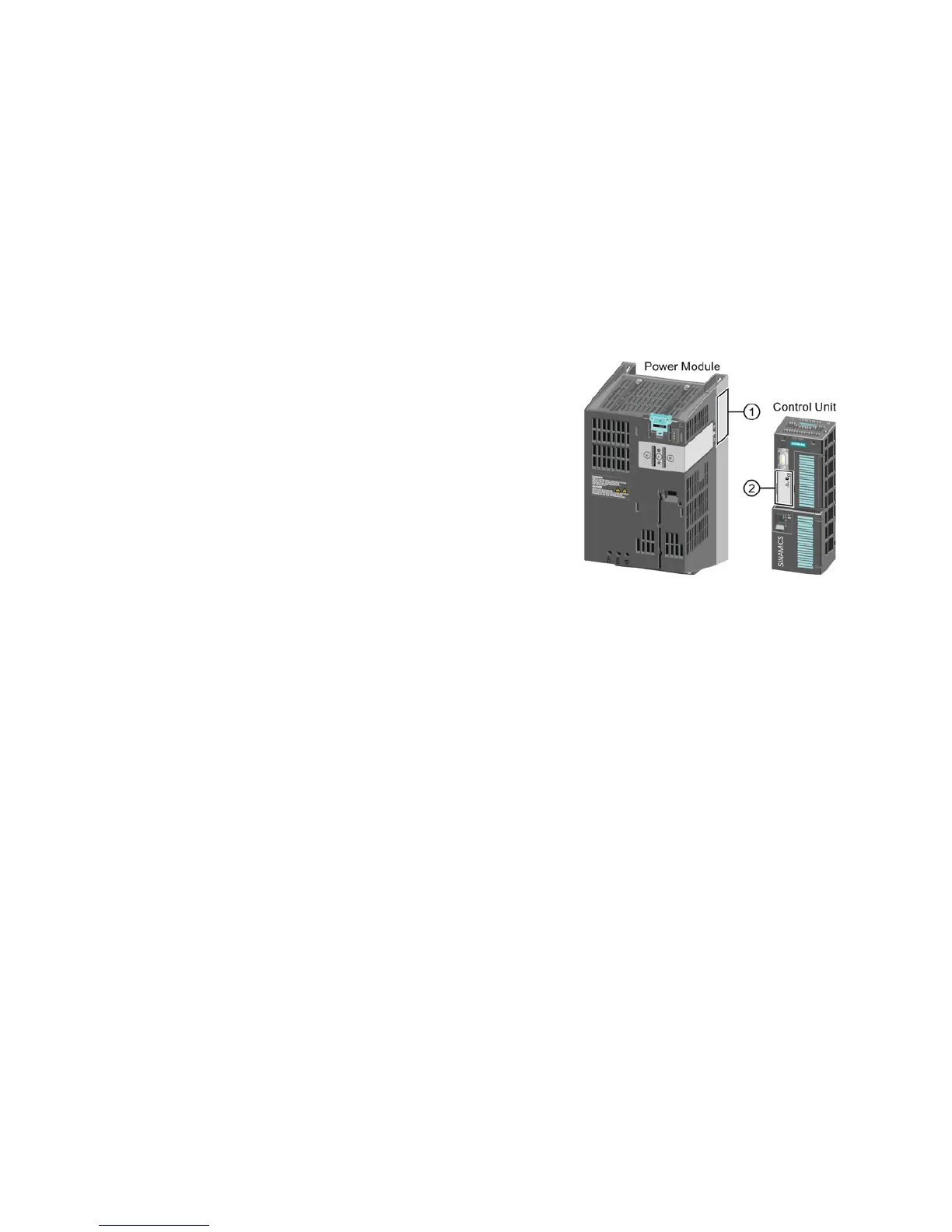

The following data is provided on the Power Module type plate (①
):
●
Designation:
e.g. Power Module 240
●
Technical data:
Voltage and current
●
Order number:
e.g. 6SL3224
-0BE13-7UA0
●
Version:
e.g. A02
The following data can be found on the Control Unit type plate (②):
●
Designation:
e.g. Control Unit CU240E
-2 DP-F
●
Order number:
e.g. 6SL3244-0BB13-1PA0
●
Version:
e.g. A02 (hardware)
