Installing
3.2 Installing Control Unit
Converter with Control Units CU230P-2; CU240B-2; CU240E-2
32 Getting Started, 11/2013, A5E32885834B AA

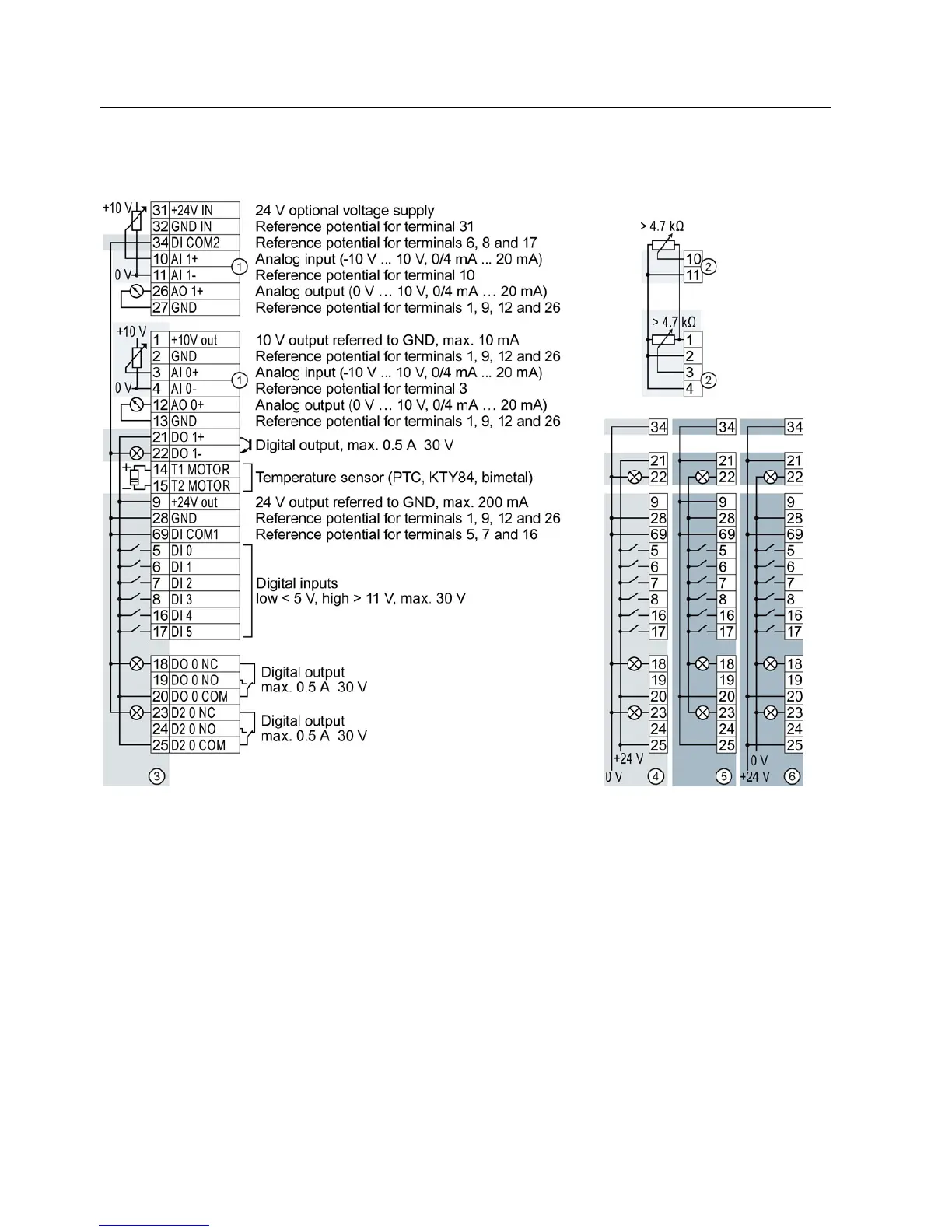

Terminal strips on CU240E-2 Control Units
The analog inputs are supplied from an external 10 V source.
The analog inputs are supplied from the internal 10 V voltage.
Wiring when using the internal power supplies. Connection of a contact switching to P potential.
Wiring when using external power supplies. Connection of a contact switching to P potential.
Wiring when using the internal power supplies. Connection of a contact switching to M potential.
Wiring when using external power supplies. Connection of a contact switching to M potential.
