Installing
3.1
Instal
ling the
Power Mo
dule
Converter with Control Units
CU230P
-
2; CU240B
-
2; CU240E
-2
Getting Started
,
11/
2013
,
A5E32885834B AA
25

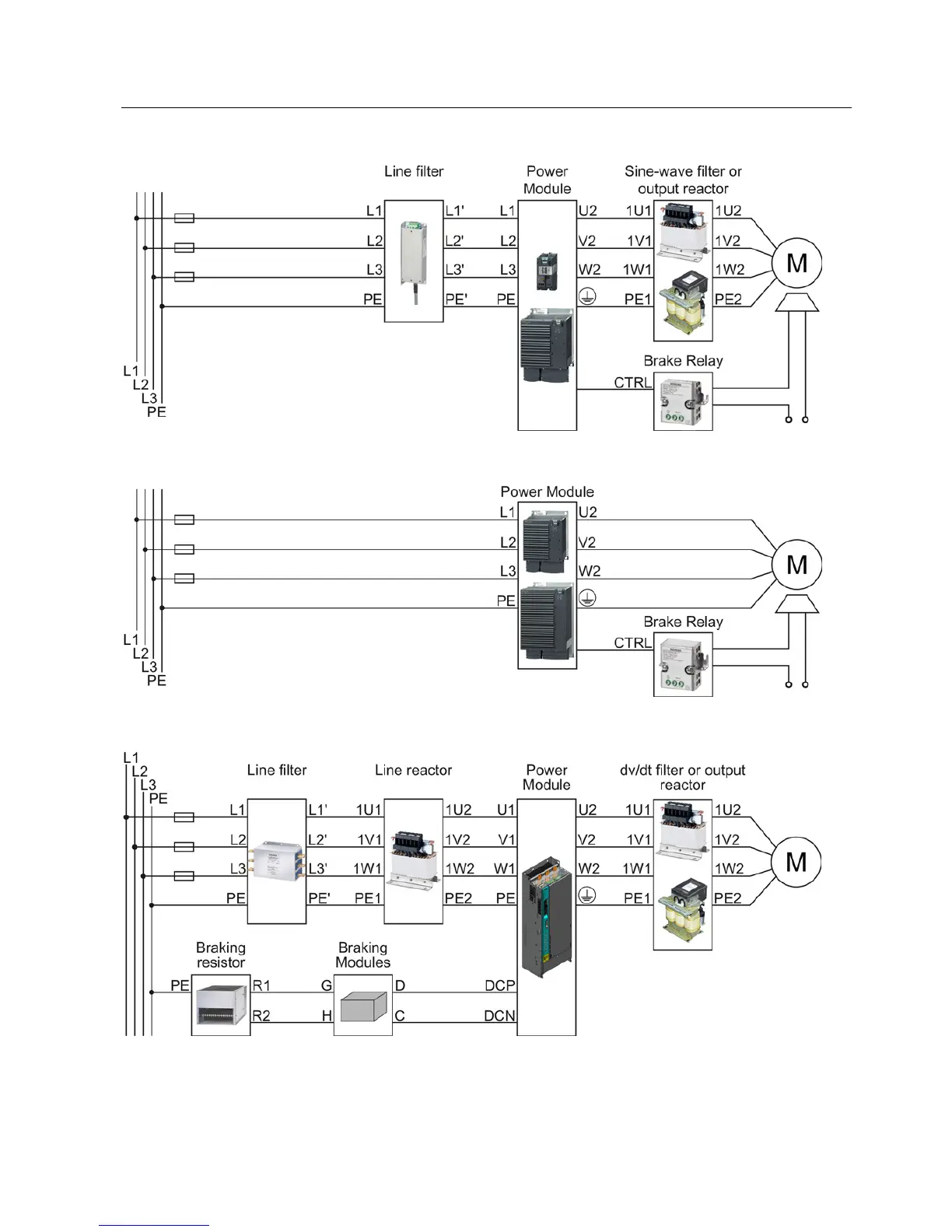

Figure
3-5
C
onnecting the
PM250 Power
Module
Figure
3-6
C
onnecting the
PM260 Power
Module
Figure
3-7
C
onnecting the
PM330 Power
Module
24
26
Table of Contents
Default Chapter
5
Table of Contents
5
1 Safety Information
7
General Safety Instructions
7
Safety Instructions for Electromagnetic Fields (EMF)
11
Handling Electrostatic Sensitive Devices (ESD)
11
Residual Risks of Power Drive Systems
12
2 Design of the Frequency Converter
15
Identifying the Converter
15
Control Units
16
Power Module
17
Assembling Frequency Converter Components
20
IOP Intelligent Operator Panel
21
3 Installing
23
Installing the Power Module
23
Installing Control Unit
26
CU230P-2 Control Unit
26
Interfaces of the CU230P-2
26
Terminal Strips of the CU230P-2
28
CU240B / CU240E Control Unit
29
Interfaces of the CU240B-2 and CU240E-2
29
Terminal Strips on CU240B-2 Control Units
31
Terminal Strips on CU240E-2 Control Units
32
Selecting the Pre-Assignment for the Terminal Strip
33
Wiring the Terminal Strip
41
Description Files for Fieldbuses
42
4 Commissioning
43
Tools to Commission the Converter
43
Commissioning
44
Settings in the Basic Commissioning Menu
45
Enable "Safe Torque Off" Safety Function
46
The most Important Parameters at a Glance
48
5 More Information
53
Manuals for Your Inverter
53
Product Support
54
