Open plastic fire (TF4)
4.3 Combustible material
The zone factor is determined on the basis of the area of the room (not to be
confused with the monitoring area per detector) and the room height (Figure 5).
This zone factor can then be used to determine the number of mats required for
the test as shown in Table 4.
1
2

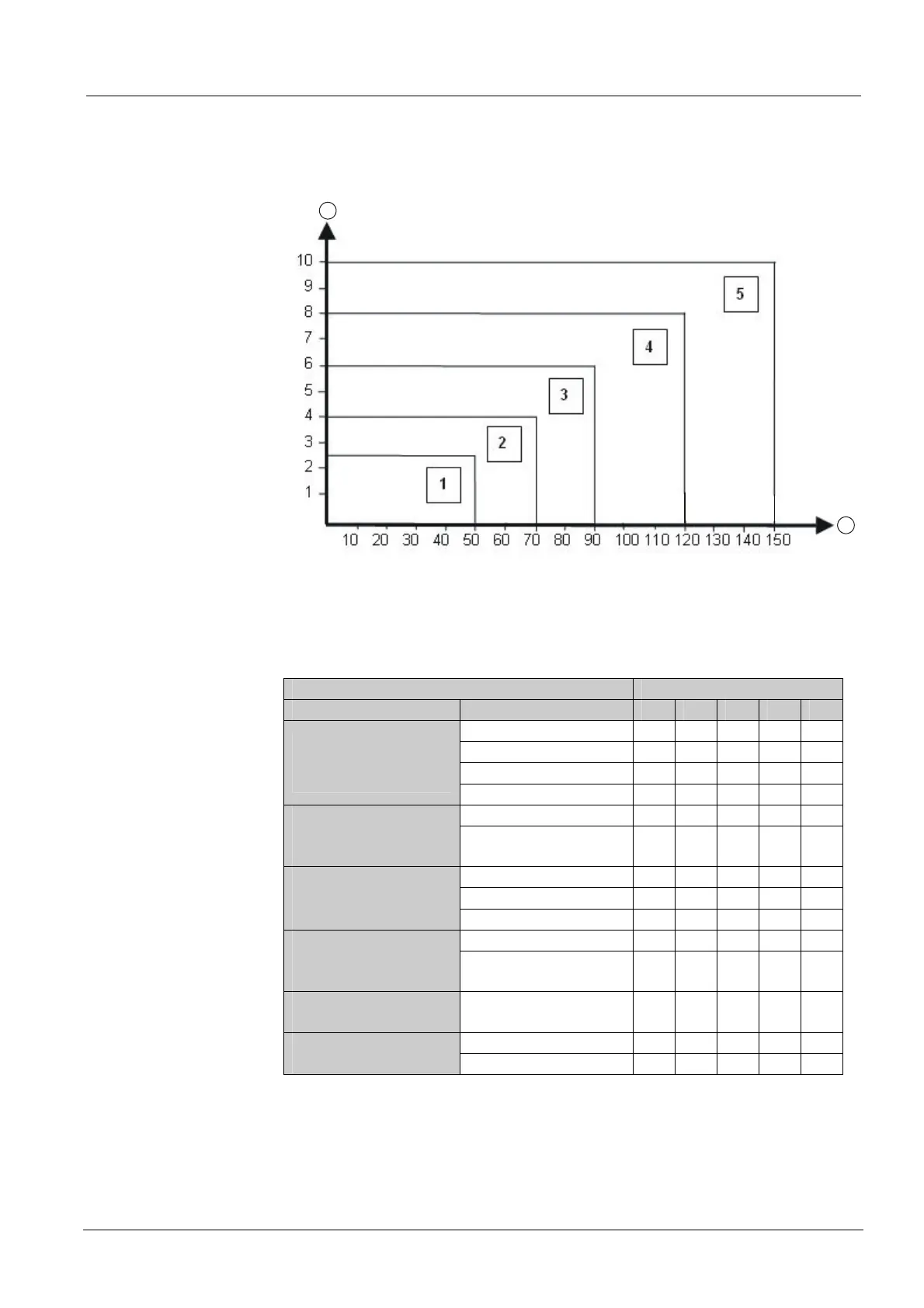

Fig. 5 Zone factor for TF4
Achsen
1 Room height [m]
2 Room area [m
2
]
Detector Zone factor
Type Setting
1 2 3 4 5
5 / Suppression
1 2 3 4 6
2 / Robust
1 2 3 4 6
4 / Balanced
1 2 2 3 5
ASA Neuronal fire
detector
FDOOT241
6 / Fast Response ½ 1 2 2 4
2 / Standard 1 2 3 4 6
DA Neuronal fire
detector
FDOOT221
4 / Standard plus
1
2
2
3 5
2 / Robust 1 2 3 4 6
1 / Universal 1 2 2 3 5
ASA Wide spectrum
smoke detector
FDO241
3 / Sensitive ½ 1 2 2 4
2 / Standard 1 2 3 4 6
DA Wide spectrum
smoke detector
FDO221
3 / Standard plus
1
2
2
3 5
Linear smoke detector
FDL241
3 / Sensitive
1 2 3 3 4
Normal sensitivity
1 1 2 3 3
Flame detector
FDF241 / FDF221
High sensitivity
½ ½ 1 2 2
Tab. 4 Number of polyurethane mats (air exchanged < 7 times/h)
15
Building Technologies 009977_b_en.doc
Fire Safety & Security Products 10.2007
