4.2 Manual call point FDM223
The manual call point FDM223 triggers alarm when the glass pane is pushed in
and the alarm button is pressed (indirect operation). The alarm is immediately
transmitted to the control panel.
1
43
6
5
2
7

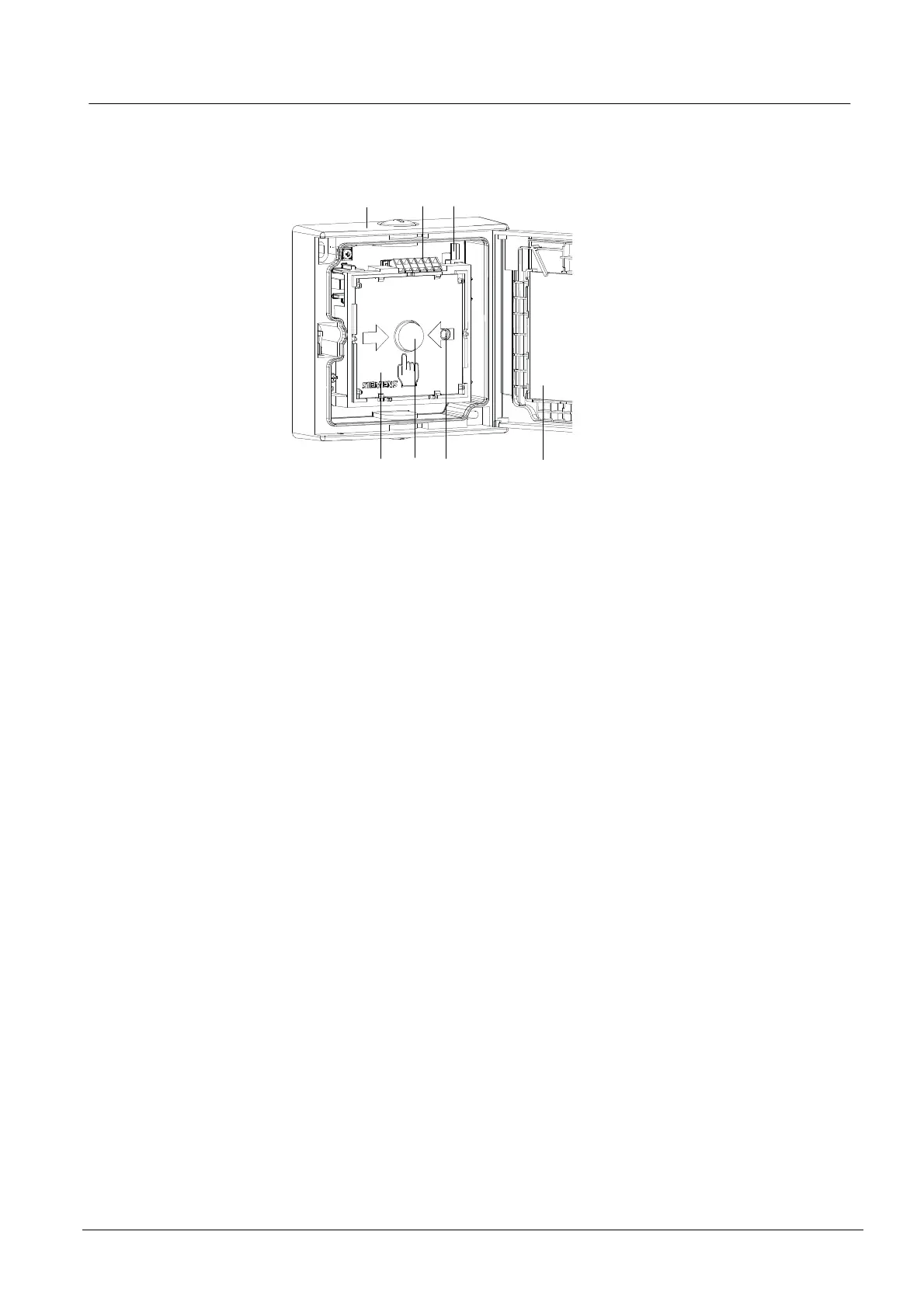

Legend
1 Housing bottom
2 Switching unit
3 Terminals
4 Stopping lever
5 Alarm button
6 LED
7 Glass
