5BInstallation
6 Installation
6.1 Preparation
Depending on the cabling (recessed or surface cabling), the housing must be
prepared for inserting the cables.

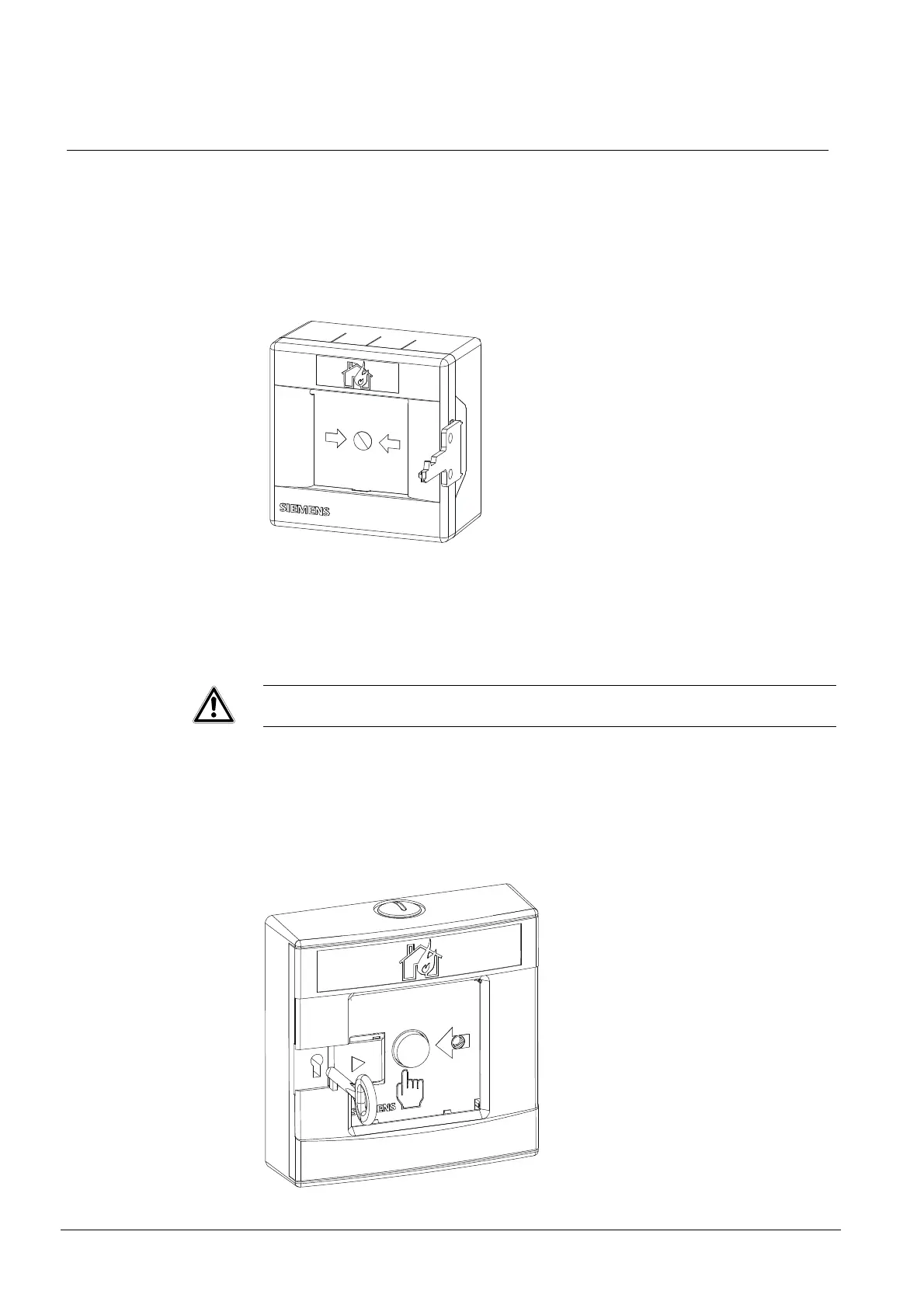

FDM221
1. Break out the key from the housing cover.
2. Press the two key knobs into the recesses (see figure below).
3. Pull the lid forwards.
Keep the key in a safe place.
4. Determine the entry opening(s) in the housing:
Recess cabling: Breakout point at the back of the housing base
Surface cabling: Markings on the top and bottom of the housing for the drill
hole(s), with a diameter of max. 25 mm
5. Clamp the housing in a bench vice.
6. Drill the entry opening(s).
Danger of injury Observe the tool manufacturer's safety notes!
FDM223/FDM224
1. Pull the cover of the keyhole to the right.
2. Open the housing with the key enclosed in the delivery.
Keep the key in a safe place.
3. Determine the entry openings in the housing and break them out from the
bottom, top or rear panel.
16
007002_e_en_--.doc
Fire Safety & Security Products 11.2007
