6.2 Installation
6.2.1 Fixation
FDM221
1. Install the housing at a height of 1.3 … 1.6 m on an even surface.
2. Pull the cables through the entry opening(s) into the housing.
3. For surface mounting, use screwed cable glands (max. M20 with nut).
FDM223/FDM224
1. Install the housing at a height of 1.3 … 1.6 m on an even surface. In wet areas,

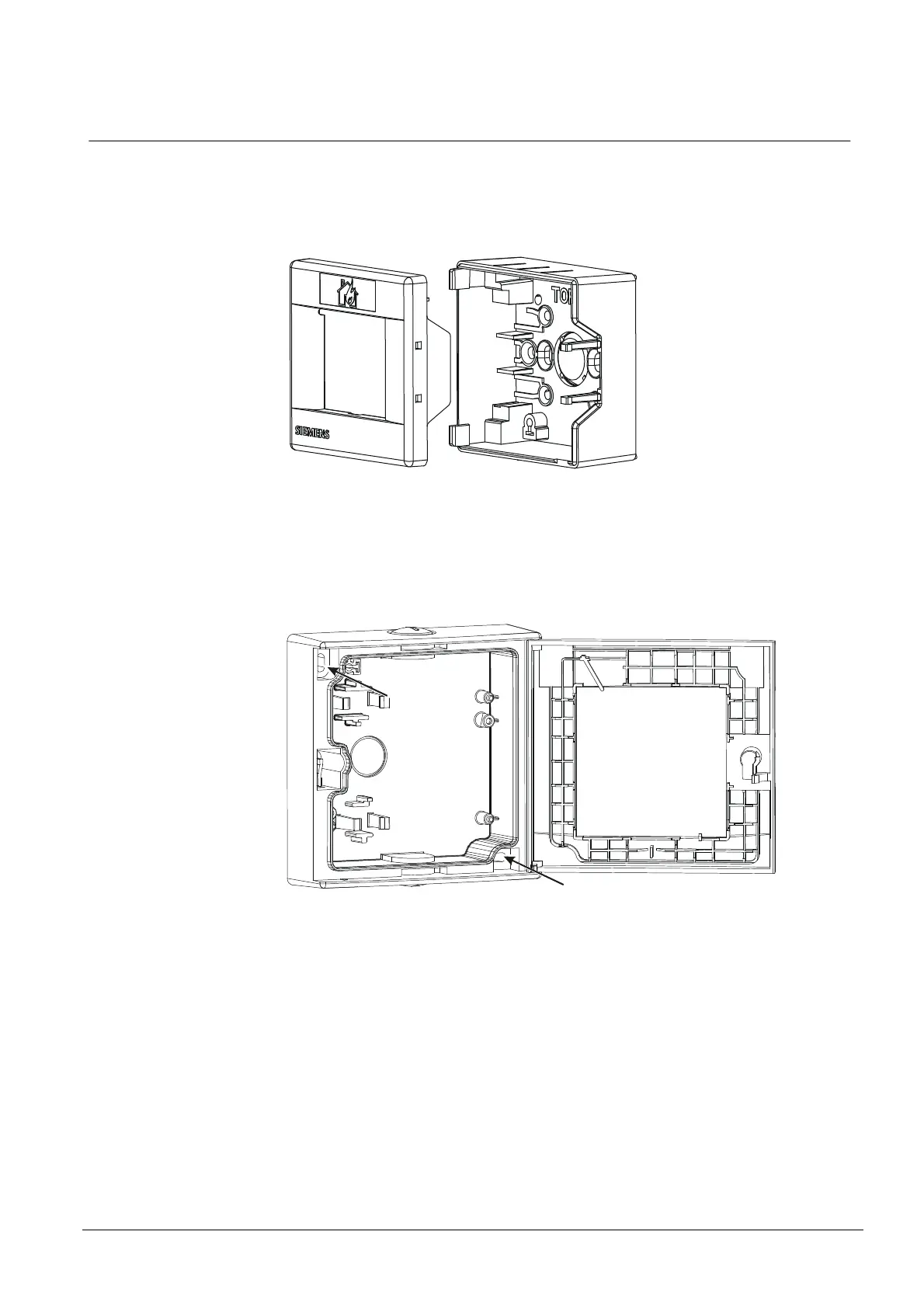

only use the screw holes marked by arrows (see figure below).
2. Pull the cables through the entry opening into the housing.
3. For surface mounting, use screwed cable glands (max. M20).
