3.3 Rating plate
WOGeneric TEAAC / 2008
14 Siemens AG Operating Instructions 1.03 1RQ671...-Z
3.3 Rating plate
Technical specifications
The rating plate shows the technical specifications for the supplied motor.
Item Description Item Description
① Type of motor ⑫ Type
② Three-Phase High-Voltage Motor ⑬ Degree of protection
③ Rated voltage [V] and winding connections ⑭ Thermal class
④ Rated frequency [Hz] ⑮ Service Factor
⑤ Surface temperature code ⑯ Certificate number
⑥ Rated current [A] ⑰ Omitted
⑦ Rotor class ⑱ Rated speed [rpm]
⑧ Omitted ⑲ Rated efficiency factor
⑨ Direction of rotation ⑳ Rated output [hp]
⑩ Serial number
Motor weight [lbs]
⑪ Operating mode

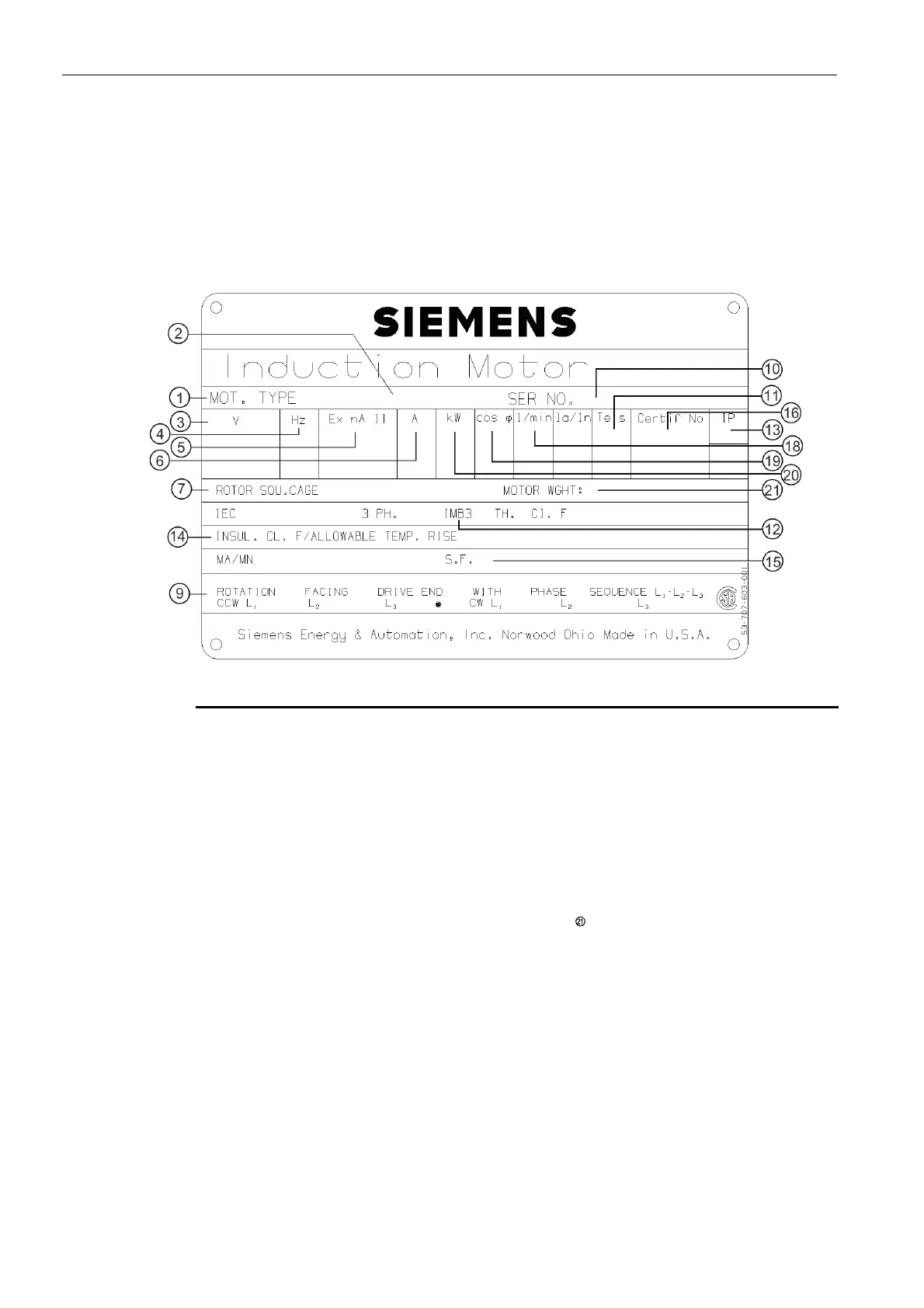

Figure 3-1 Example of rating plate
[ID 1164.01)
