Description
3.4 Arrangement of the plates on the motor
WOGeneric TEAAC / 2008
Siemens AG Operating Instructions 1.03 1RQ671...-Z 15
3.4 Arrangement of the plates on the motor
Horizontal construction type
① Additional plate - transportation warning ⑪ Rating plate
② Company name plate ⑫ Lubricant plate
③ Additional plate - purging air outlet ⑬ Additional plate - bearing insulation drive end and
non-drive end
④ Additional plate: fan unit direction of rotation ⑭ Rating plate - anti-condensation heating data
⑤ Additional plate - transport of construction type B3 ⑮ Additional plate - running-up time
⑥ Additional plate - type of ignition protection Ex e
1)
⑯ Additional plate - asset number
⑦ Additional plate - purging air inlet ⑰ Additional plate - blank
⑧ Additional plate - balancing type 1/1 and 1/2 ⑱ Additional plate - purging air data
⑨ Additional plate - balancing type 1/2 ⑲ Additional plate - type of ignition protection Ex i
2)
⑩ Additional plate - anti-condendation heating warning ⑳ CE label
1
) only on terminal boxes in protection type Ex e, installed on motor in other protection types
2
) only on terminal boxes with intrinsically safe circuits

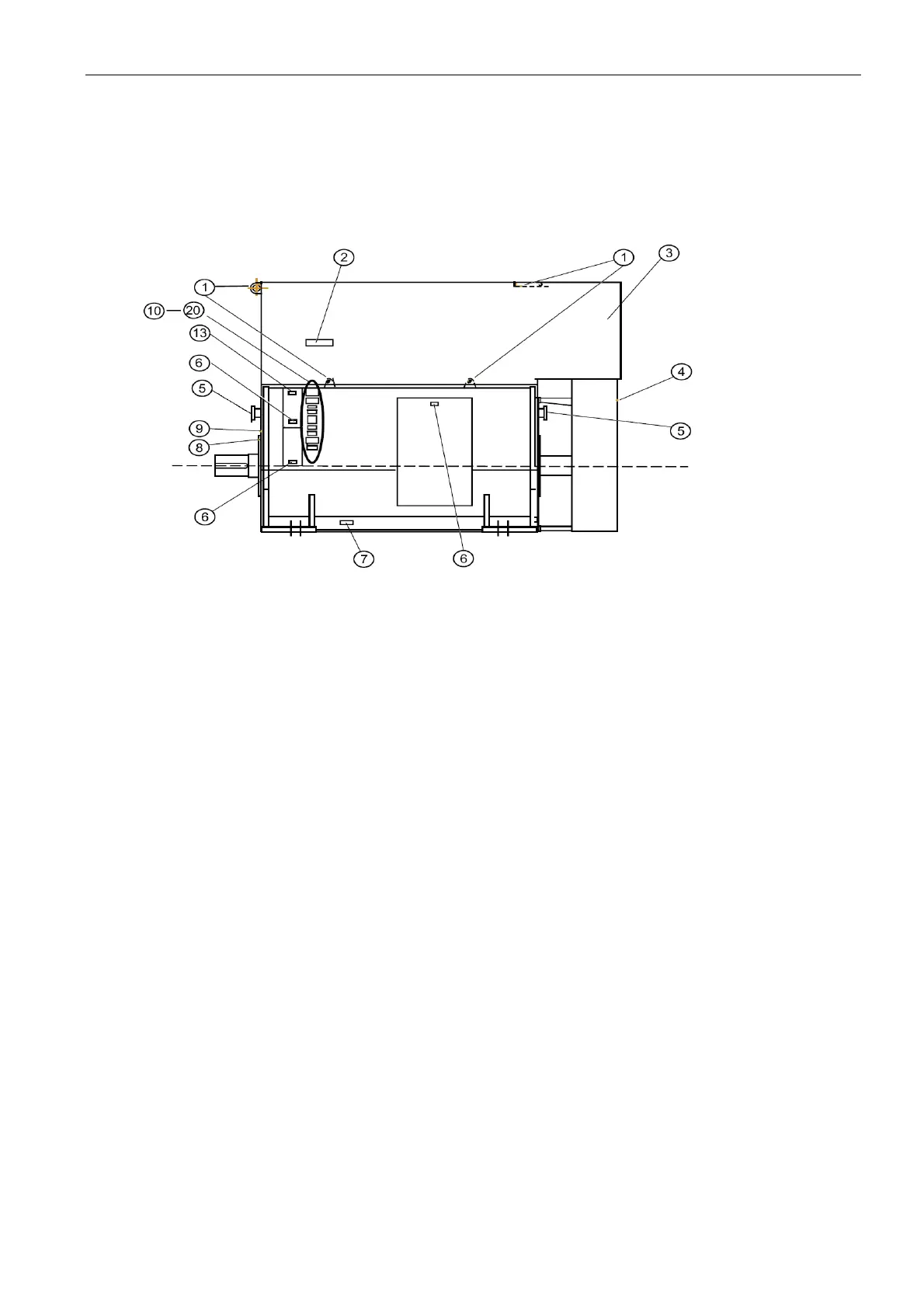

Figure 3-2 Example: Arrangement of the plates on the horizontal construction type
