10.4 Stator and rotor
WOGeneric TEAAC / 2008
60 Siemens AG Operating Instructions 1.03 1RQ671...-Z
10.4 Stator and rotor
Spare Parts

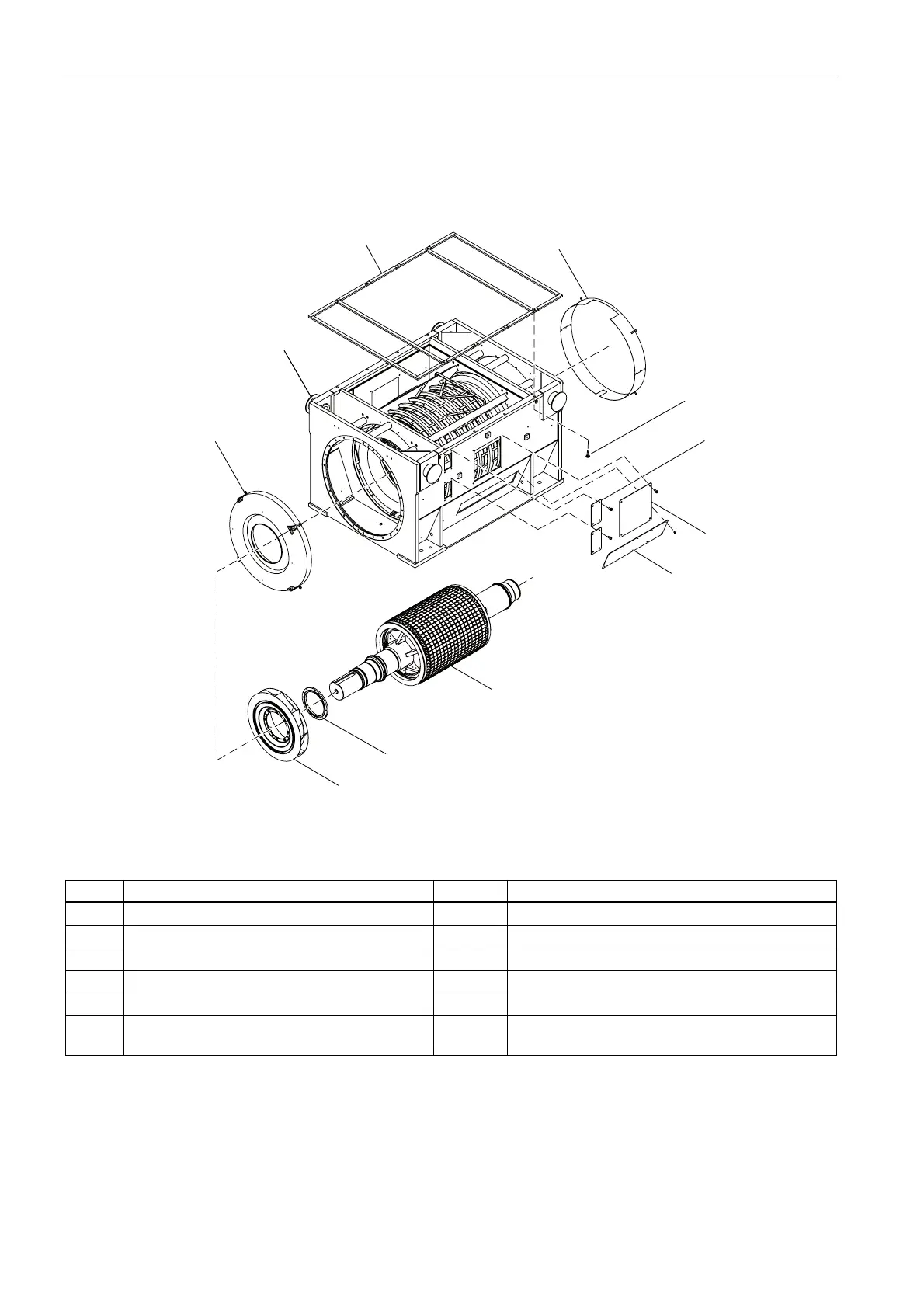

Figure 10-1 Stators and rotors with ventilation on one side.
Table 10-1 Spare parts - Stator and rotor
Part Description Part Description
7.20 Fan impeller 10.70 Cover
7.30 Fan hub 10.71 Cover
8.03 Rotor, complete (with spider shaft) 10.72 Cover
10.00 Stator frame with core and winding 30.15 Seal
10.30 Air guide panel, drive end 30.89 Fastening elements
10.40 Non drive end air guide panel, two-part
(optional)
[ID 1159.01]
