Spare Parts
10.7 Rolling-contact bearings, drive end
WOGeneric TEAAC / 2008
Siemens AG Operating Instructions 1.03 1RQ671...-Z 63
10.7 Rolling-contact bearings, drive end
Spare parts















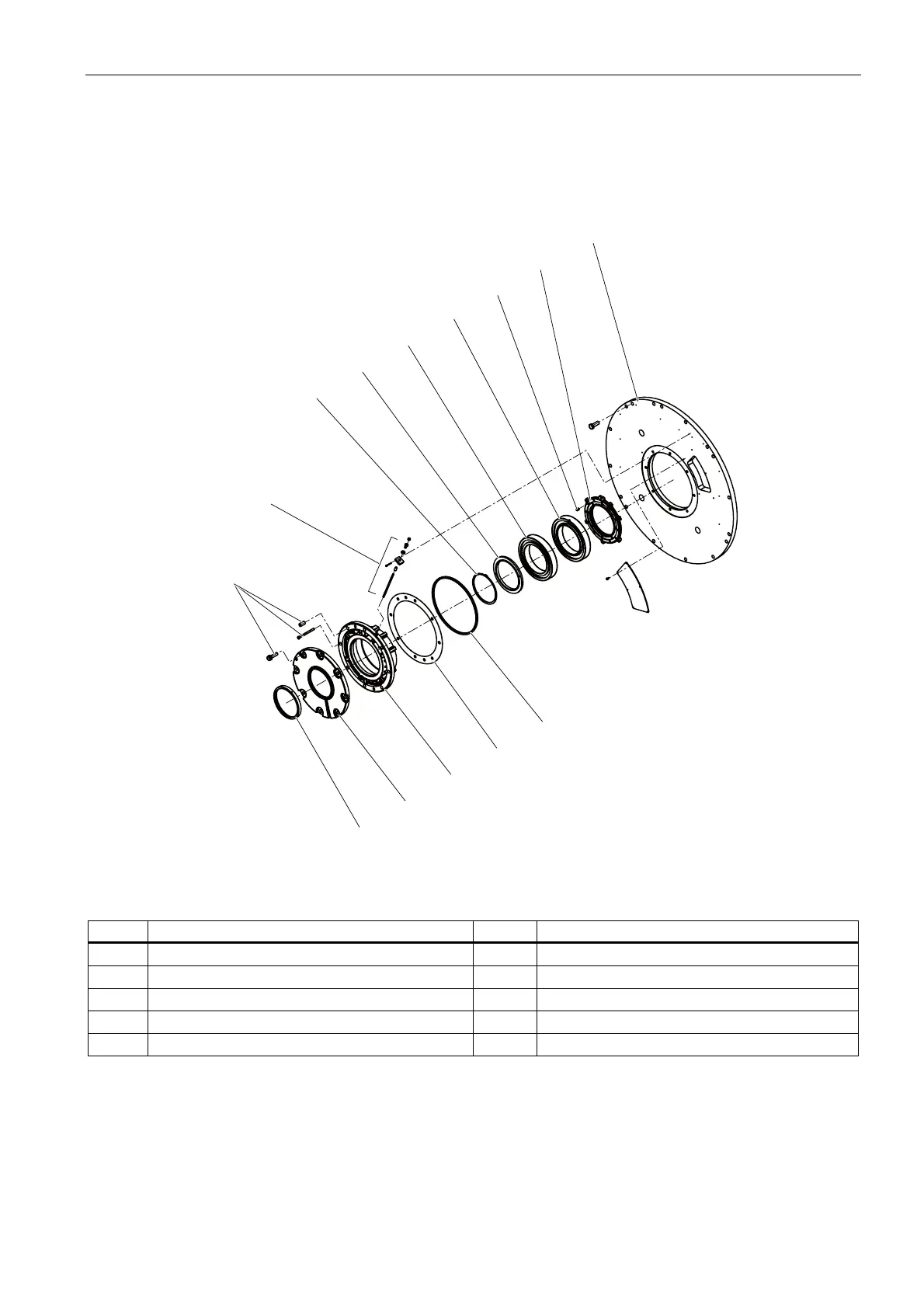

Figure 10-4 Rolling contact bearings drive end for model B3
Table 10-4 Spare parts for the rolling contact bearing on the drive end
part Description part Description
3.15 Sealing ring (circular) 3.50 Bearing housing
3.20 Outer bearing cover 3.51 Insulating washer
3.30 Locking ring 3.52 Insulating ring
3.35 Grease slinger 3.61 Inner bearing cover
3.40 Deep-groove ball bearing (locating bearing) 3.85 Grease feed
