Siemens H-compact PLUS - Upper Part of the Enclosure; Table 10-2 Spare Parts for the Upper Part of the Enclosure

Spare Parts
10.5 Upper part of the enclosure
WOGeneric TEAAC / 2008
Siemens AG Operating Instructions 1.03 1RQ671...-Z 61
10.5 Upper part of the enclosure
Spare parts












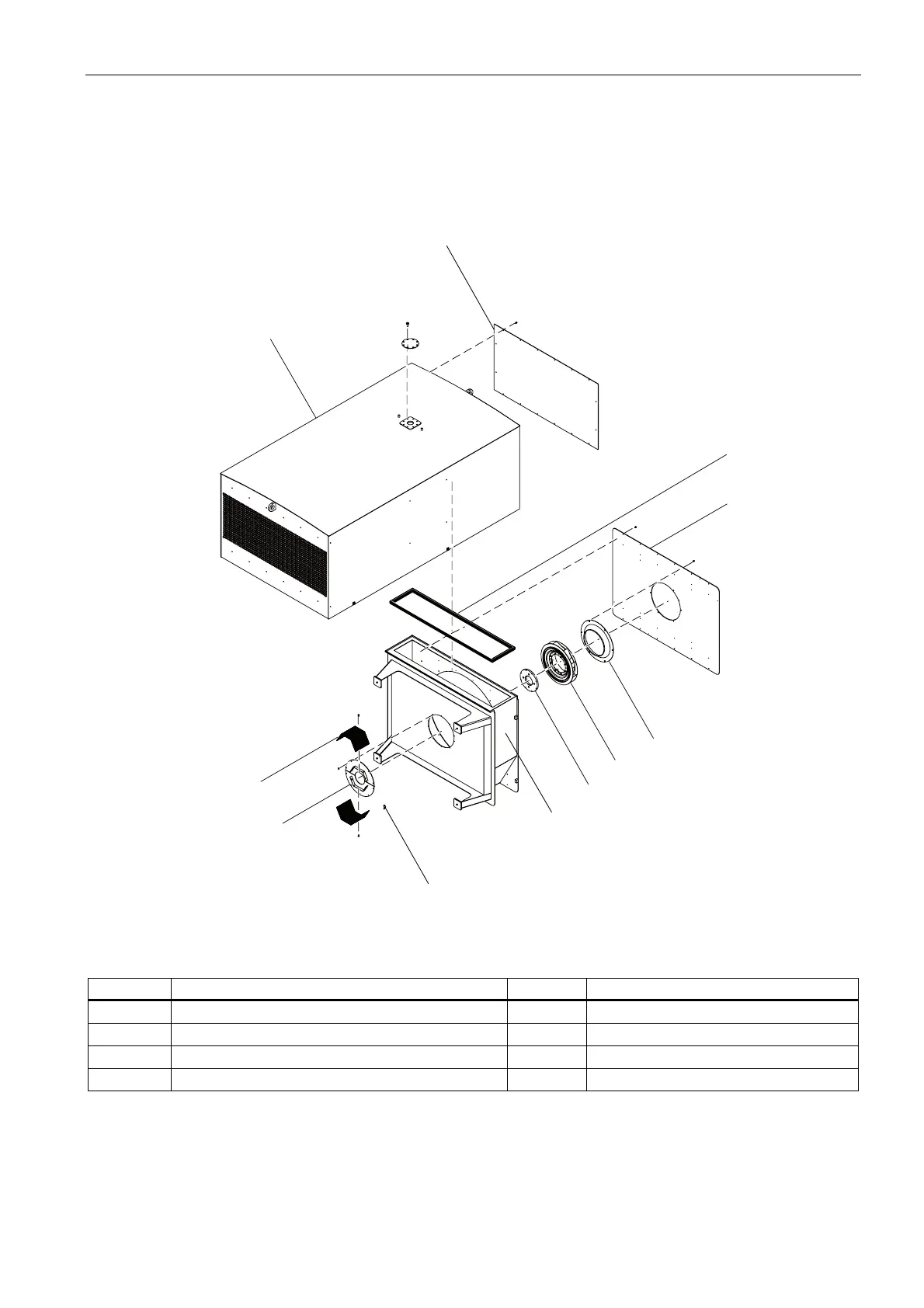

Figure 10-2 Upper part of the enclosure
Table 10-2 Spare parts for the upper part of the enclosure
Part Description Part Description
17.01 Air intake housing 17.10 Enclosure seal
17.02 Deflecting baffle with nozzle 17.26 Fan impeller
17.04 Sealing wall, two-section 17.27 Fan hub (shrunk on)
17.05 Cover (shaft protection) 31.10 enclosure
