Spare Parts
10.8 Rolling-contact bearings, non-drive end
WOGeneric TEAAC / 2008
64 Siemens AG Operating Instructions 1.03 1RQ671...-Z
part Description part Description
3.41 Cylindrical-roller bearing (floating bearing) 3.94 Fastening elements
3.45 Compression spring 5.00 Bearing shield, drive end
[ID 1045.00]
10.8 Rolling-contact bearings, non-drive end
Spare parts













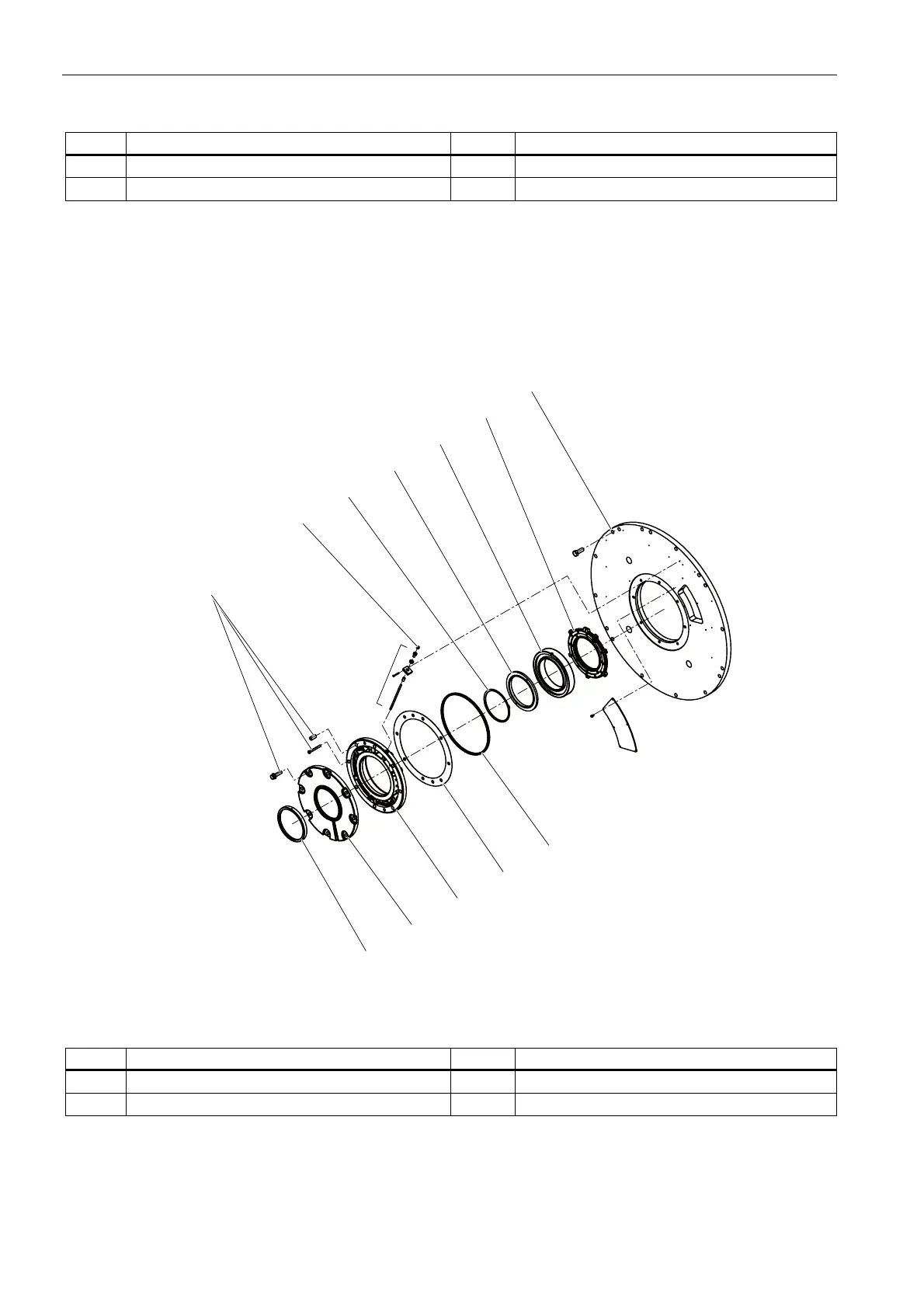

Figure 10-5 Rolling contact bearings non-drive end for model B3
Table 10-5 Spare parts for the rolling contact bearing with cover on the non-drive end
part Description part Description
4.15 Sealing ring (circular) 4.51 Housing without axial guide, for floating bearing
4.20 Outer bearing cover 4.52 Bearing housing bushing
