Setting Up the Telephone
10

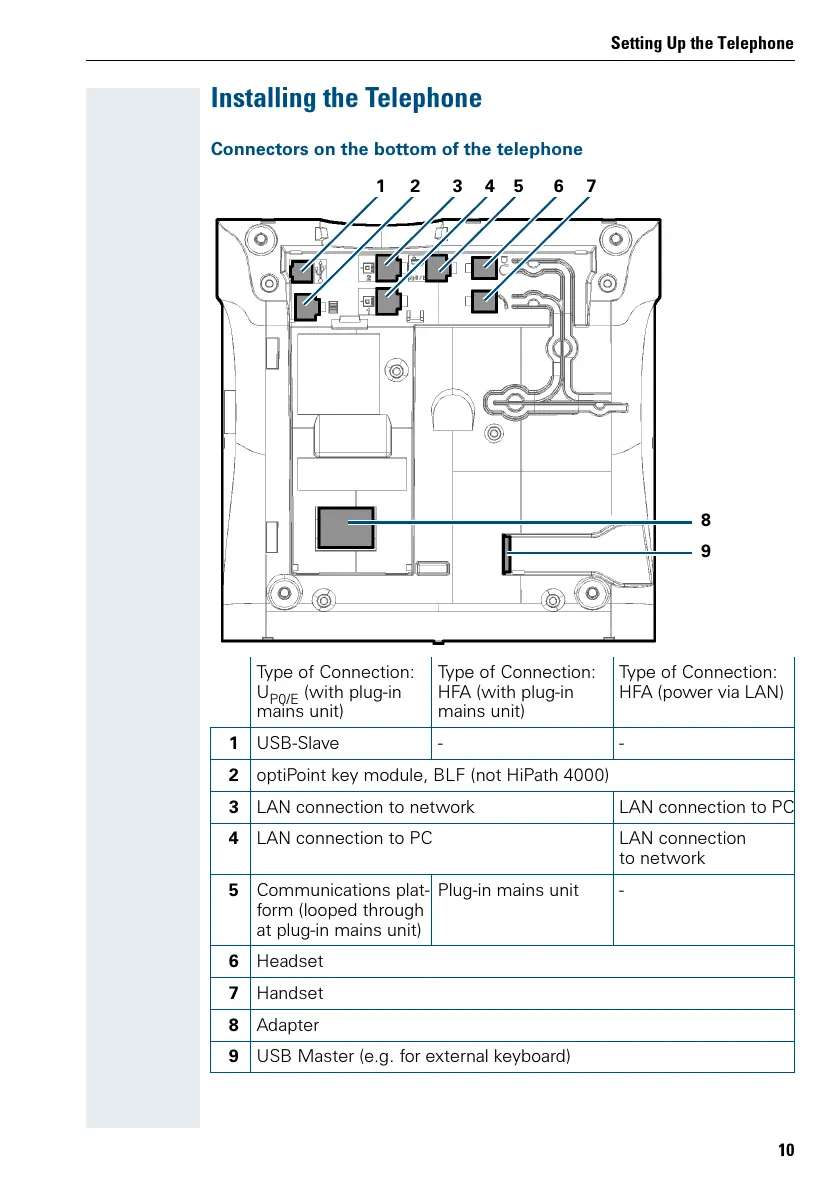

Installing the Telephone
Connectors on the bottom of the telephone
Type of Connection:
U
P0/E
(with plug-in
mains unit)
Type of Connection:
HFA (with plug-in
mains unit)
Type of Connection:
HFA (power via LAN)
1 USB-Slave - -
2 optiPoint key module, BLF (not HiPath 4000)
3 LAN connection to network LAN connection to PC
4 LAN connection to PC LAN connection
to network
5 Communications plat-
form (looped through
at plug-in mains unit)
Plug-in mains unit -
6 Headset
7 Handset
8 Adapter
9 USB Master (e.g. for external keyboard)
5432167
8
9
