Siemens HiPath 1100 Series Service Manual

Installation of Expansion and Option Module
s
A31003-K1250-S100-12-7619
HiPath 1100, Service Manual
4-19
For internal distribution only Installation
Table 4-2 Slot / Type of module for the HiPath 1130/1150
● On the HiPath 1190/1190R
HiPath 1130 HiPath 1150 HiPath 1150 only
Slot 1
Type of Module
Slot 2
Type of Module
Expansion Modules
EB 010
Expansion Modules
EB 010
--- EB 012 EB 012
EB 202 EB 202
EB 206 EB 206
EB 210 EB 210
EB 200 EB 200
EB 400 EB 400
EB 800 EB 800
Slot 3
Type of Module
Slot 4
Type of Module
Expansion Modules
EB 010
Expansion Modules
EB 010
--- EB 012 EB 012
EB 202 EB 202
EB 206 EB 206
EB 210 EB 210
EB 200 EB 200
EB 400 EB 400
EB 800 EB 800
Option Modules
S
0 Module
Option Modules ADSL ModuleADSL Module
TME1 Module

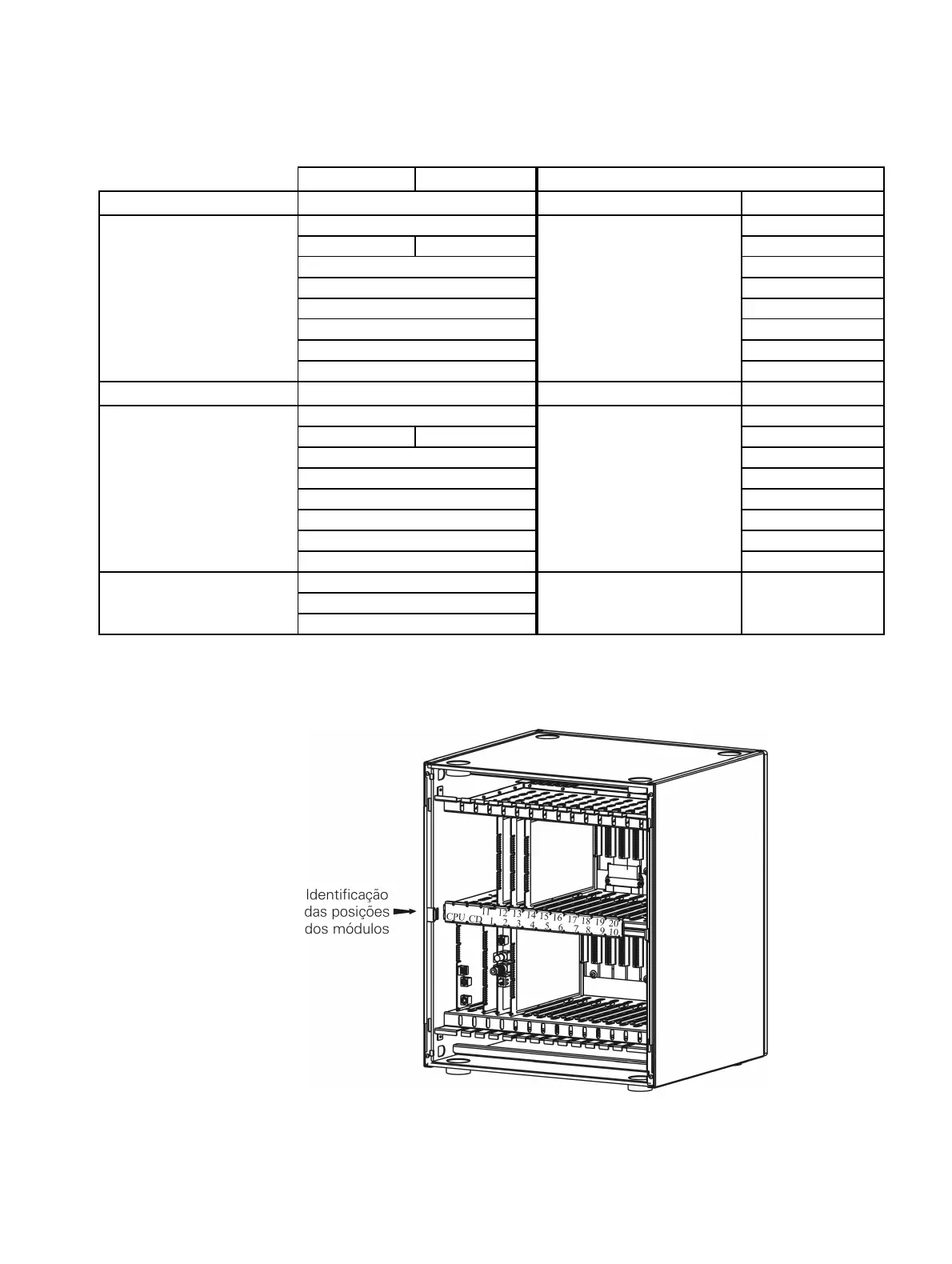

Figure 4-19 Location of the Modules on the HiPath 1190/1190R
