102/327
Building Technologies Basic Documentation LMV5... CC1P7550en
7 Boiler controller / load controller 22.05.2018
Internal load controller
In this operating mode, the load controller inside the LMV5 is used (standard application).
The manipulated variable and the request for heat are internally generated and
handled.
Terminals X62 pin 1 and X62 pin 2 can be used to make an external changeover
between the internal setpoints W1 and W2.
Internal
load controller
FARC (BU) BC (BU)
Manipulated variable,
demand for heat
Manipulated variable,
demand for heat
7550b02E/0302
Manipulated
variable
0...100 %
Demand for
heat
AZL
CAN module
(basic unit)
X62.1
X62.2
= W1
= W2
CAN bus

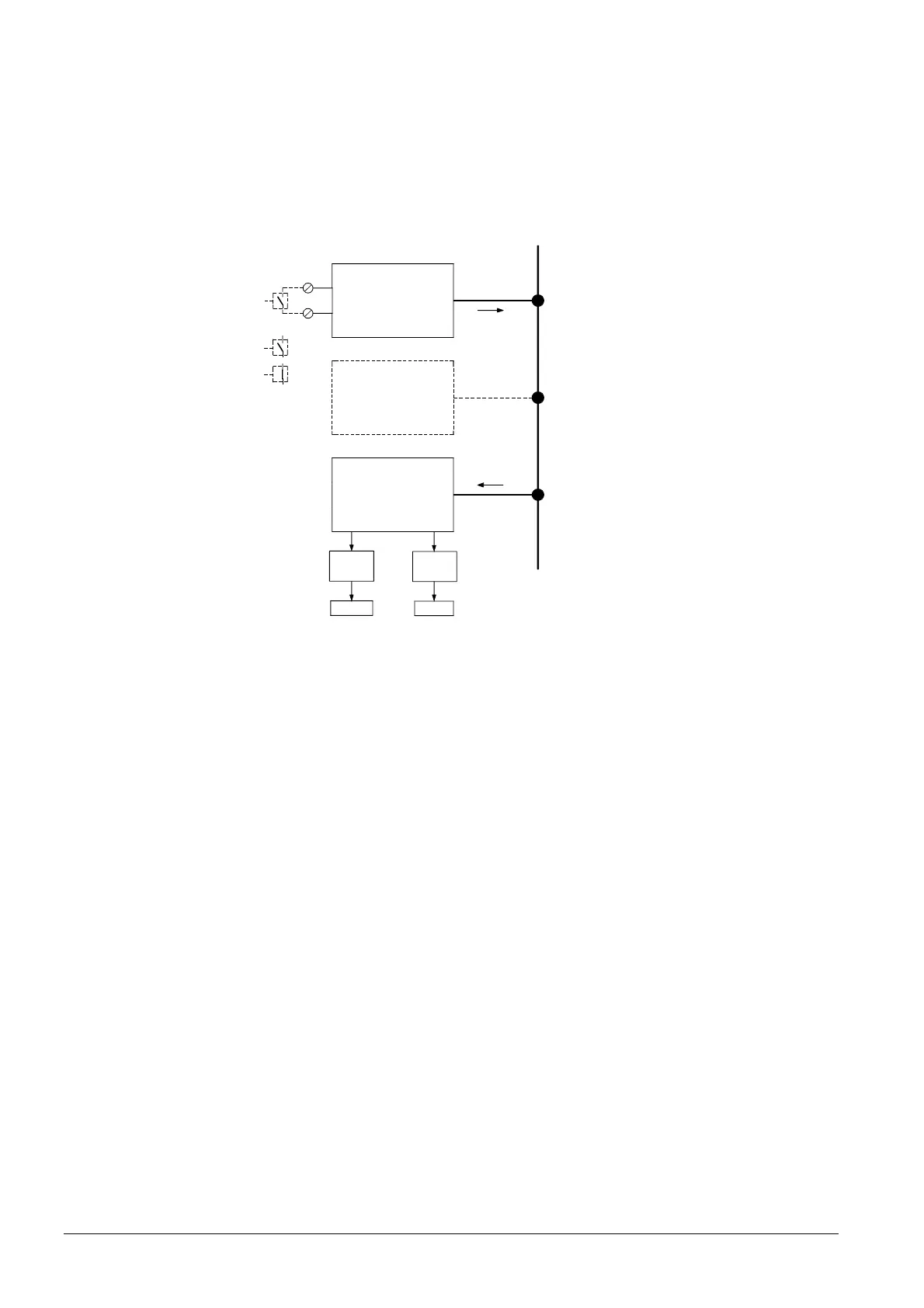

Figure 48: Operating mode 2 with load controller
Operating mode 2
(intLC)
