158/327
Building Technologies Basic Documentation LMV5... CC1P7550en
8 Display and operating unit AZL5 22.05.2018
100 %
90°
7550d09e/0704
Pos.
Load
0 %
0°
AIR
AUX
FUEL
Low fire
2nd curve point
Ignition

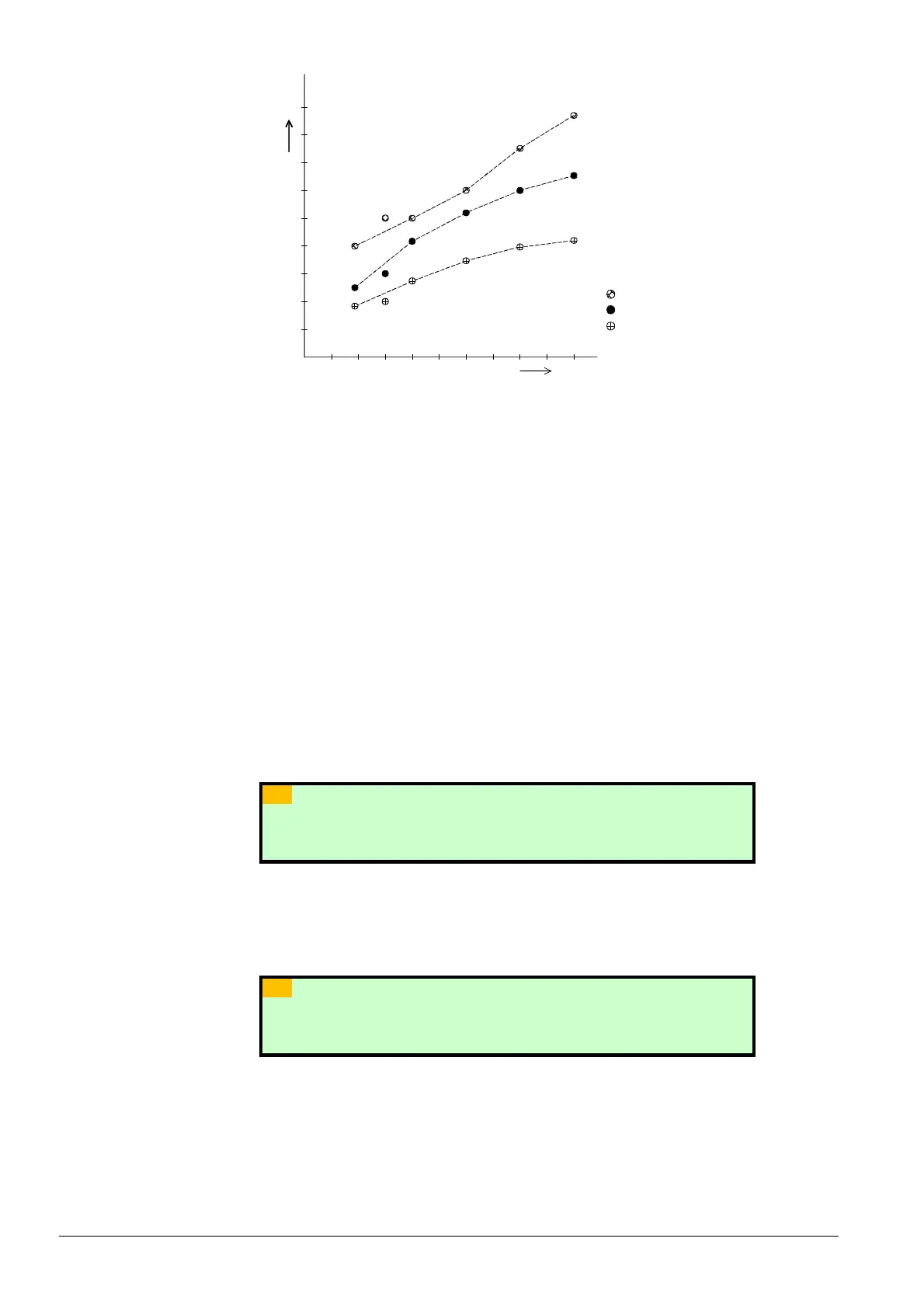

Figure 80: Adjustment of the actuator positions via the load with multiple points
Using this method, up to 15 points can be defined.
6. Shutdown
Via menu: Params & Display ↑ Ratio Control ↑ Autom/Manual/Off
or via: Manual Operation ⇓ Autom/Manual/Off to Burner off
and confirm
7. Setting the postpurge positions
The system shuts down and stops in phase Driving to postpurge 72.
Now, the postpurge positions can be set via menu Special positions.
Then, set Program Stop to deactivated.
The system continues the shutdown sequence and stops in phase Standby 12.
Selection menu setting oil
Only the data associated with the currently active type of fuel can be parameterized.
S p e c i a l P o s i t i o n s 1)
C u r v e P a r a m s 2)
L o a d L i m i t s 3)
A u x A c t u a t o r 4)
Selection of 1) (HomePos, PrepurgePositions), 3) and 4) leads to standard
parameterizations of the specified parameters.
Selection of 2) leads to:
C u r v e S e t t i n g s 1)
O p e r a t i o n M o d e 2)
Selection of 2) leads to the standard parameterization of the operation mode
(modulating or multistage).
Selection of 1) leads to curve settings – modulating (refer to Gas) or to curve settings –
multistage, depending on the parameterized operation mode.
