11 Description of connection terminals (AC 120 V) 22.05.2018

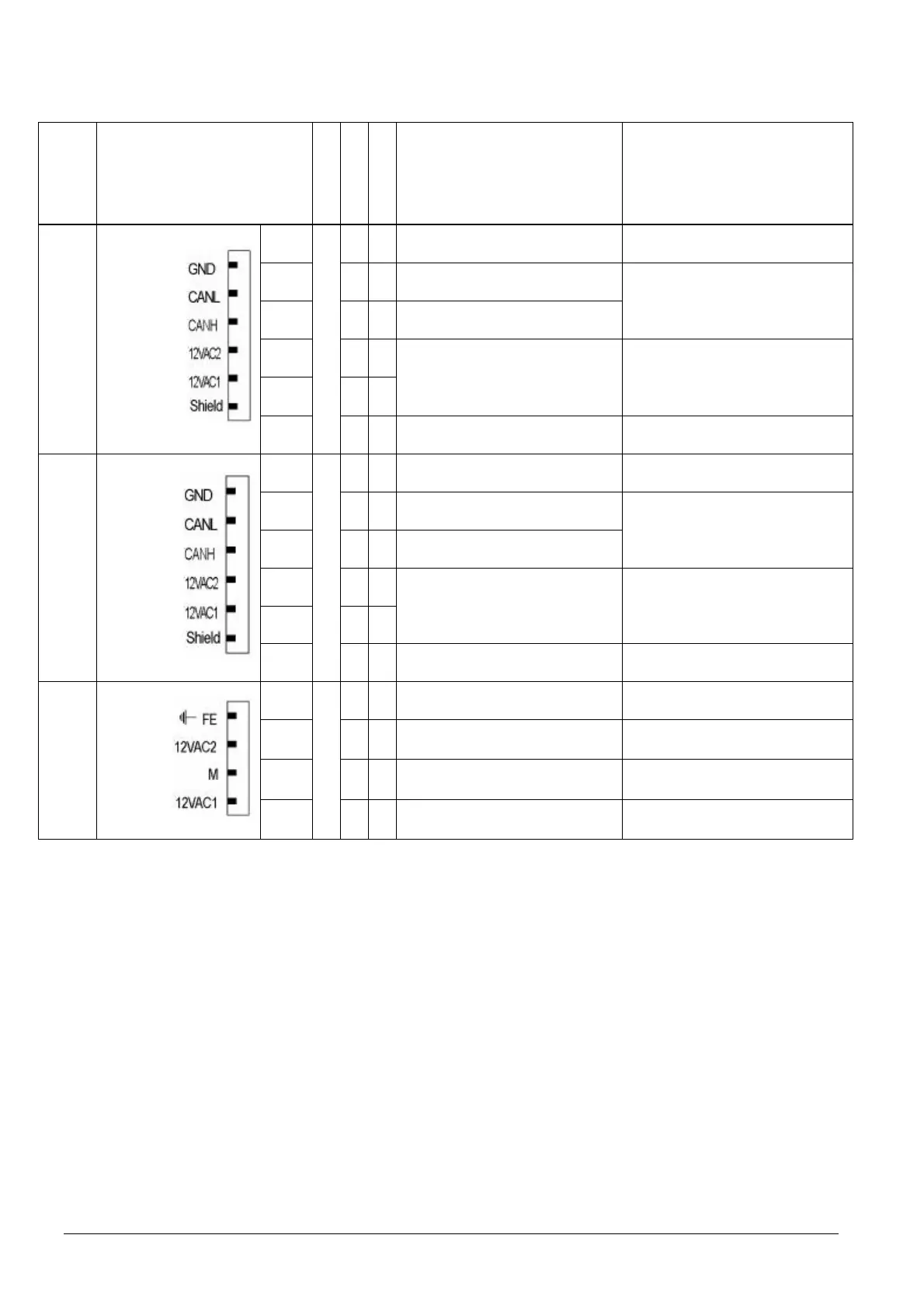

Description of connection terminals (cont’d)
Terminal marking
Connection symbol
Safety class Input Output
Description of connections Electrical rating
X50
PIN 6
III
˜ Reference ground (PELV)
PIN 5
˜ Communication signal (CANL)
DC U ↔ 5 V, Rw = 120 ς,
level to ISO-DIS 11898
PIN 4
˜ Communication signal (CANH)
PIN 3
˜
AC power supply for actuators /
display and operating unit AZL5
AC 12 V +10 % / -15 %,
50...60 Hz,
Fuse max. 4 A
PIN 2
˜
PIN 1
˜ Shield connection (functional earth)
X51
PIN 6
III
˜ Reference ground (PELV)
PIN 5
˜ Communication signal (CANL)
DC U ↔ 5 V, Rw = 120 ς,
level to ISO-DIS 11898
PIN 4
˜ Communication signal (CANH)
PIN 3
˜
AC power supply for actuators /
display and operating unit AZL5
AC 12 V +10 % / -15 %, 50...60 Hz,
Fuse max. 4 A
PIN 2
˜
PIN 1
˜ Shield connection (functional earth)
X52
PIN 4
III
˜ Functional earth
PIN 3
˜
AC power supply from transformer to
LMV5 system
AC 12 V +10 % / -15 %, 50...60 Hz
PIN 2
˜ Reference ground (PELV)
PIN 1
˜
AC power supply from transformer to
LMV5 system
AC 12 V +10 % / -15 %, 50...60 Hz
