11 Description of connection terminals (AC 120 V) 22.05.2018

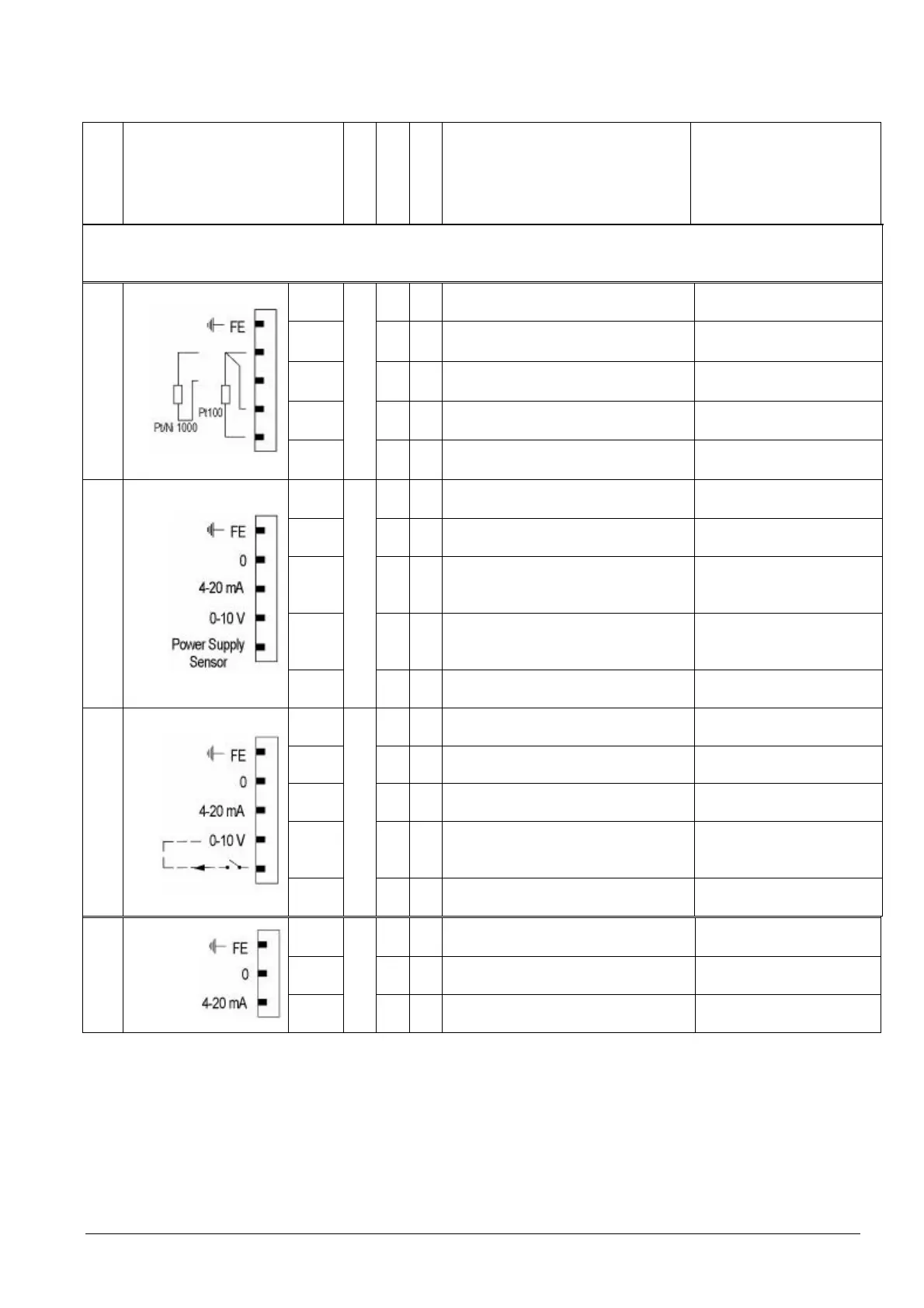

Description of connection terminals (cont’d)
Terminal markings
Connection symbol
Safety class Input Output
Description of connections Electrical rating
Temperature / pressure controller
X60
PIN 5
III
˜ Functional earth for shield connection
PIN 4
˜ Reference ground
PIN 3
˜
Temperature sensor input Pt / LG-Ni 1000
(Input 4, TEMP.)
PIN 2
˜
Line compensation temperature sensor
Pt100
PIN 1
˜
Temperature sensor input Pt100 (input 1,
TEMP.)
X61
PIN 5
III
˜ Functional earth for shield connection
PIN 4
˜ Reference ground
PIN 3
˜
Current input for temperature / pressure
signal (input 2, TEMP / PRESS INPUT
4...20 mA)
DC 0...20 mA
PIN 2
˜
Voltage input for temperature / pressure
signal (input 2, TEMP / PRESS INPUT
DC 0...10 V)
DC 0...10 V
PIN 1
˜
Power supply for temperature / pressure
transmitter
Approx. DC 20 V,
Max. 25 mA
X62
PIN 5
III
˜ Functional earth for shield connection
PIN 4
˜ Reference ground
PIN 3
˜
Current input for setpoint or load (input 3,
SETPOINT INPUT)
DC 0...20 mA
PIN 2
˜
Voltage input for setpoint or load (input 3,
SETPOINT INPUT)
DC 0...10 V
(up to DC 24 V on setpoint
change of X62 / pin 1)
PIN 1
˜ Power supply for setpoint changeover
Approx. DC 24 V,
Max. 2 mA
X63
PIN 3
III
˜ Functional earth for shield connection
PIN 2
˜ Reference ground
PIN 1 ˜
Current output for burner load (LOAD
OUTPUT)
DC 4...20 mA,
RLmax = 500 ς
