29/327
Building Technologies Basic Documentation LMV5... CC1P7550en
3 Fuel train (examples) 22.05.2018
Heavy oil (direct transformer ignition)

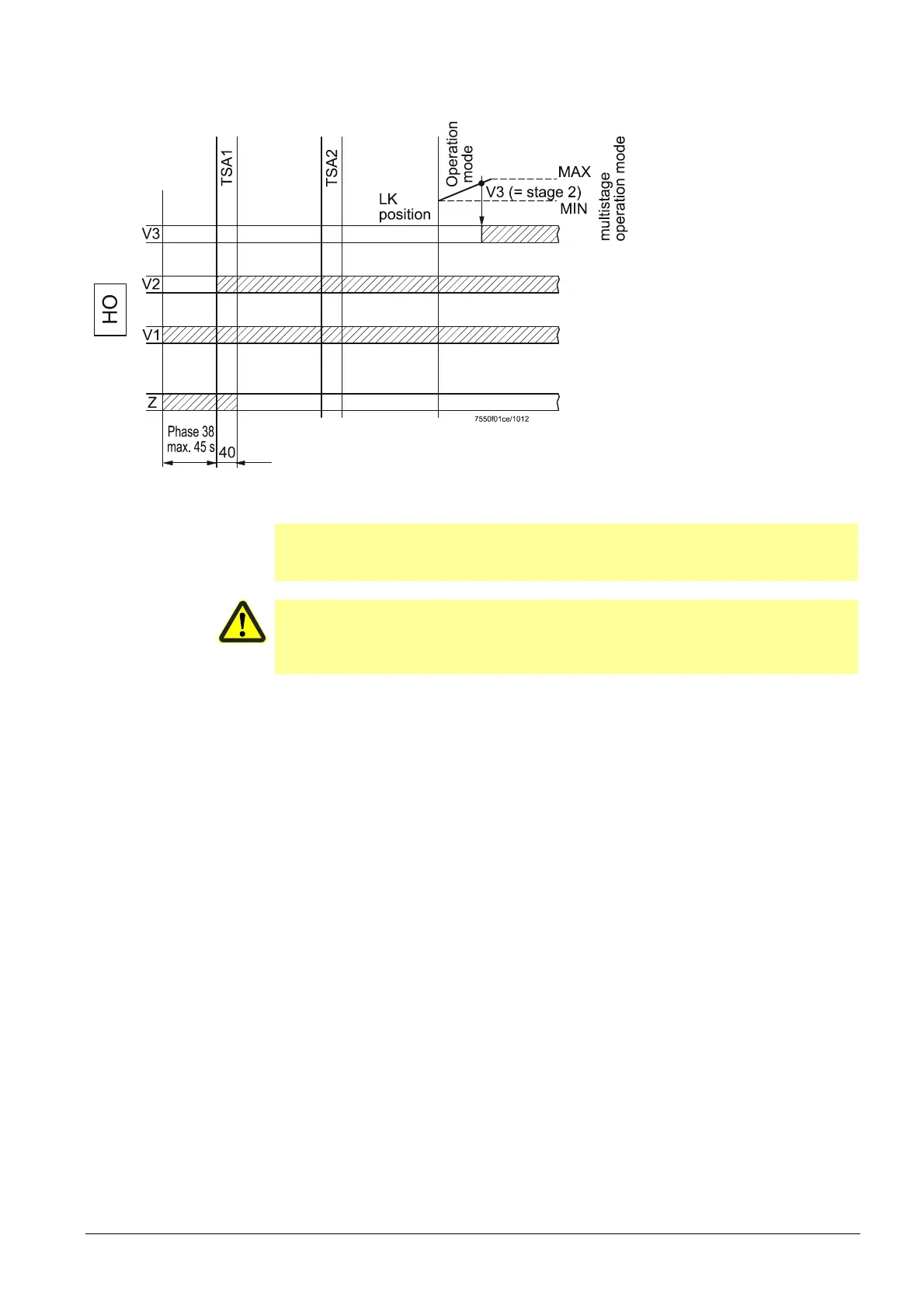

Figure 19: Fuel train application – fuel valve control
Legend (fuel trains)
HO Heavy oil
LK Air damper
TSA Safety time
V Fuel valve
Z Ignition
Β
Note on dual-fuel burner!
Gas trains G, Gp1 and Gp2
1)
can be randomly combined with oil trains LO and HO
for operation with dual-fuel burners since these fuel trains operate independently.
Caution!
Oil trains LOgp and HOgp are designed for ignition with a gas pilot. They must
only be combined with a special gas train Gp2 for operation with a dual-fuel
burner.
1) With Gp2 permitted with hardware 01.C0 and software V01.40 or higher
Fuel valve control
