Siemens LOGO! 230RCL User Manual

151
LOGO! Manual
A5E00067781 01
8.1 Stairwell or Hall Lighting
8.1.1 Demands on Stairwell Lighting
The basic requirements for a stairwell lighting system in an
apartment block are as follows:
 When someone is using the stairs, the stairwell lights
should be on.
 If no-one is in the stairwell, the lights should go out in
order to save energy.
8.1.2 Previous Solution
Conventionally, there have been two ways to control such a
lighting system as follows:
 By means of a current impulse relay
 By means of automatic stairway lighting

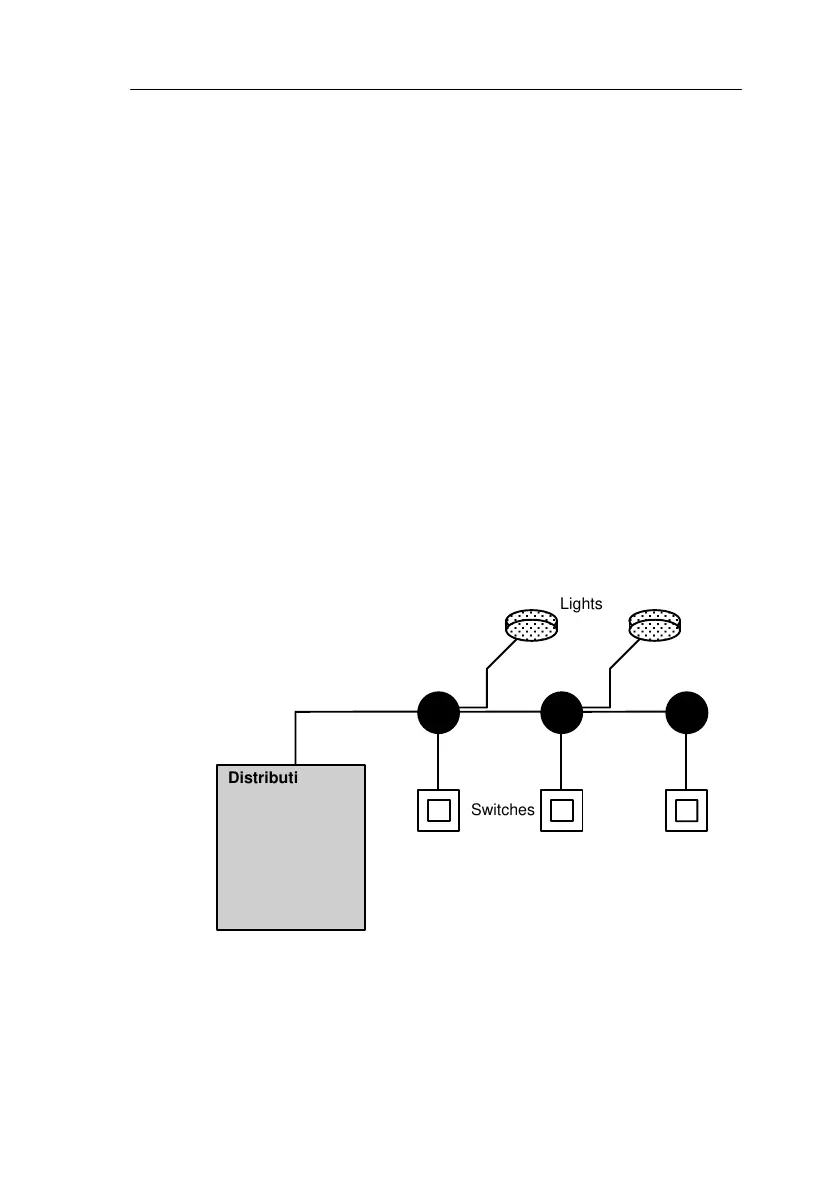

The wiring for the two lighting systems is identical.
ÎÎÎ
ÎÎÎ
ÎÎÎ
ÎÎÎ
ÎÎÎ
ÎÎÎ
ÎÎÎ
ÎÎÎ
Lights
Switches
Distribution by
means of current
impulse relay
or
automatic
stairway lighting
Distribution box
Components used
 Switches
 Automatic lighting device or current impulse relay
Applications

Siemens LOGO! 230RCL Specifications

General

Power Supply	230V AC
Input Voltage	230V AC
Digital Inputs	8
Analog Inputs	2
Programming Software	LOGO! Soft Comfort
Protection class	IP20
Mounting type	DIN rail
Digital Outputs	4
Operating Temperature	0°C to +55°C
Storage Temperature	-25°C to 70°C
