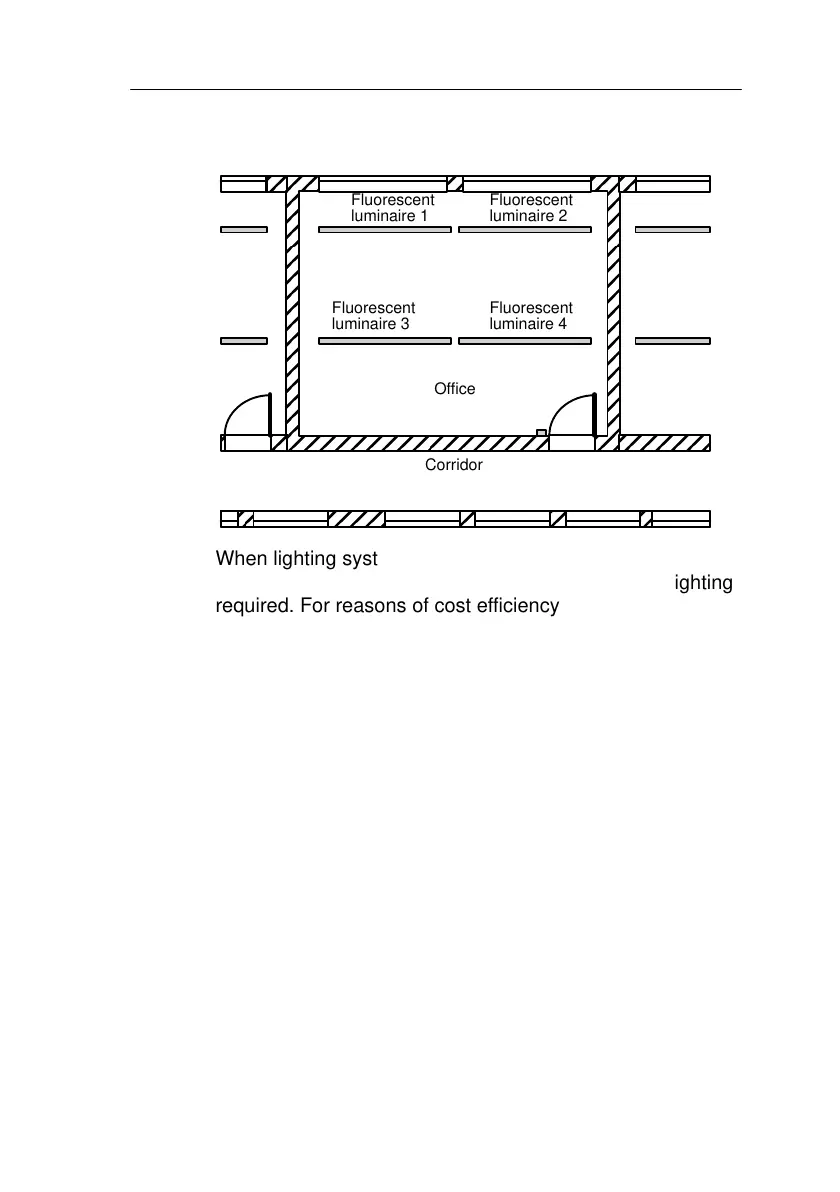

8.6 Fluorescent Luminaires
ÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉ
Fluorescent
luminaire 2
Fluorescent
luminaire 1
Fluorescent
luminaire 4
Fluorescent
luminaire 3
ÉÉÉ
ÉÉ
ÉÉ
É
É
ÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉ
Corridor
Office
When lighting systems are planned in companies, the type
and number of lamps used depends on the level of lighting
required. For reasons of cost efficiency, fluorescent lumin-
aires arranged in rows of tubes are often used. They are
subdivided into switching groups according to how the
room is used.
8.6.1 Demands on the Lighting System
 The fluorescent luminaires are switched on and off lo-
cally.
 If there is sufficient natural light, the luminaires on the
window side of the room are automatically switched off
by means of a brightness-sensitive switch.
 The lights are switched off automatically at 20.00.
 It must be possible at all times to switch the lights on
and off locally.
Applications

Siemens LOGO! 230RCL Specifications

General

Power Supply	230V AC
Input Voltage	230V AC
Digital Inputs	8
Analog Inputs	2
Programming Software	LOGO! Soft Comfort
Protection class	IP20
Mounting type	DIN rail
Digital Outputs	4
Operating Temperature	0°C to +55°C
Storage Temperature	-25°C to 70°C
