Siemens MPP 464 IE H User Manual

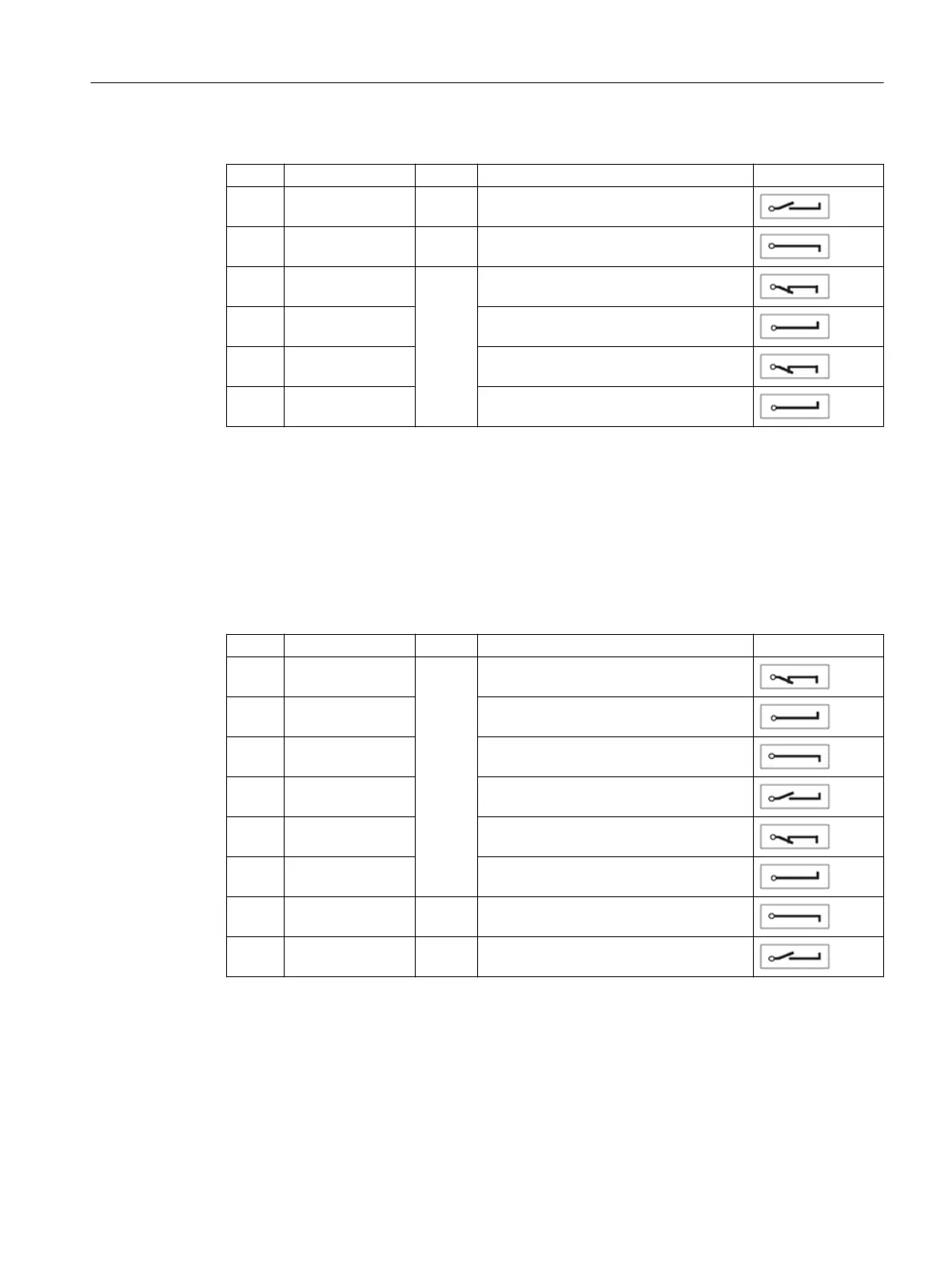

Table 3-9 Emergency stop contact blocks
Pin Signal Type Signal name Function
13 S_S13.13 NO contact S1, S13
14 BZ_S13.14 Reference potential S1, S13
31 OE_S13.21 I/O NC contact OE1, S13
32 BZ_S13.22 Reference pot. OE1, S13
21 OE_S13.31 NC contact OE2, S13
22 BZ_S13.32 Reference pot. OE2, S13
Emergency stop override S11
Button designation: S11
Button type: Pushbutton 3SU1000-0AB60-0AA0 with
holder 3SU1500-0AA10-0AA0 and
2 x 3SU1400-1AA10-1FA0 contact block 1 NC/1 NO positively driven
Pin Signal Type Signal name Function
61 OE_S11.61 NC contact OE2, S11
62 BZ_S11.62 Reference potential OE2, S11
34 BZ_S11.54 Reference potential S2, S11
33 S_S11.53 NO contact S2, S11
51 OE_S11.31 NC contact OE3, S11
52 BZ_S11.32 Reference potential OE3, S11
24 BZ_S11.44 Reference potential S3, S11
23 S_S11.43 NO contact S3, S11
3.4.2.2 COM board
Pin assignment
For details, see "Pin assignment of the interfaces" (Page 45) in the Section "Connecting".
Description
3.4 Interfaces
Machine Pushbutton Panel: MPP 464 IE H
Equipment Manual, 03/2021, A5E50810237B AA 25
