WARNING
Danger of death resulting from the premature emergency stop unlocking
If you shut down the system to be monitored, you can only release the emergency stop button
or put the system to be monitored back into operation if the condition that triggered the
emergency stop function has been corrected and a safe restart is ensured.
4.2 Front face


84
4
944
4444
4444
4444
)4)4)4)4
)4)4)4)4
)4)4)4)4

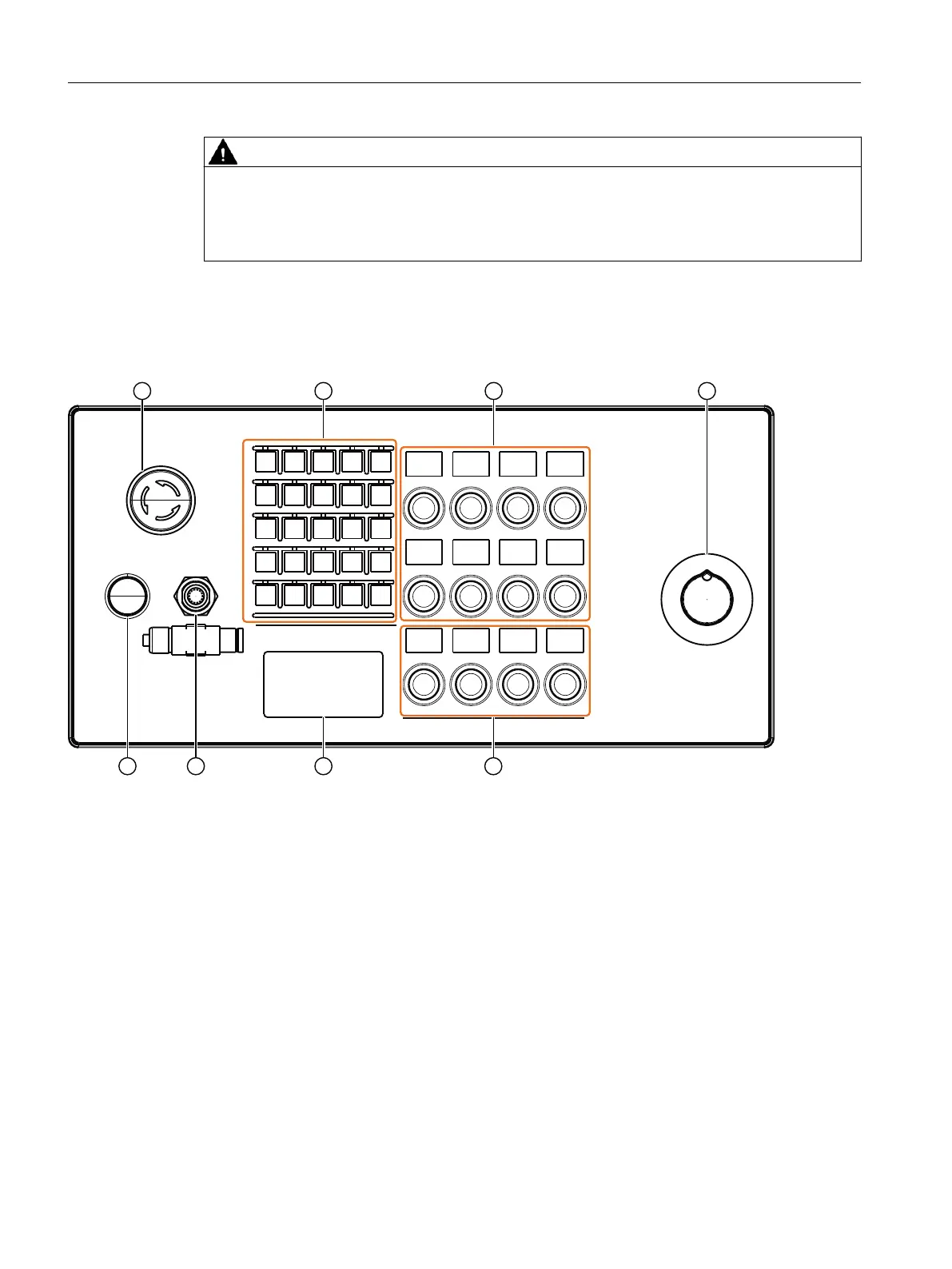

① Emergency stop button
② 25 function keys (Schlegel) with LED, slide-in labels
③ 8 customer keys (Schlegel) with LEDs, slide-in labels
④ Feedrate override switch
⑤ 4 extension keys (Schlegel) with LEDs, slide-in labels
⑥ Mounting space with blanking cover for EKS identi󹪝cation system
⑦ Handheld unit connection HT2/ HT8
⑧ Emergency stop override button
Figure 4-1 Standard version MPP 464 IE H
Operator control and display elements
4.2 Front face
Machine Pushbutton Panel: MPP 464 IE H
36 Equipment Manual, 03/2021, A5E50810237B AA
