Emergency stop circuit/ Ethernet connection
• Connection HGA - X1 to operator panel front (OP)
• Connection HGA - X2 via COM X20 and COM X21 to control (NC)












84
84
#1
#1#1
4
4
9
9
9
9
99
91PSU
91PSU
9
4444
#1
#1
#1
① PE
② KT X21
③ Handwheel 1
④ Handwheel 2
⑤ KT X20
⑥ KT X11
⑦ OP direct keys
⑧ PCU Ethernet
⑨ Emergency stop circuit 1
⑩ Emergency stop circuit 2
⑪ Emergency stop circuit without HGA
⑫ Emergency stop circuit with HGA
⑬ NC Ethernet
⑭ KT X25
⑮ KT X24
⑯ KT X23
⑰ KT X22
⑱ M24
⑲ P24

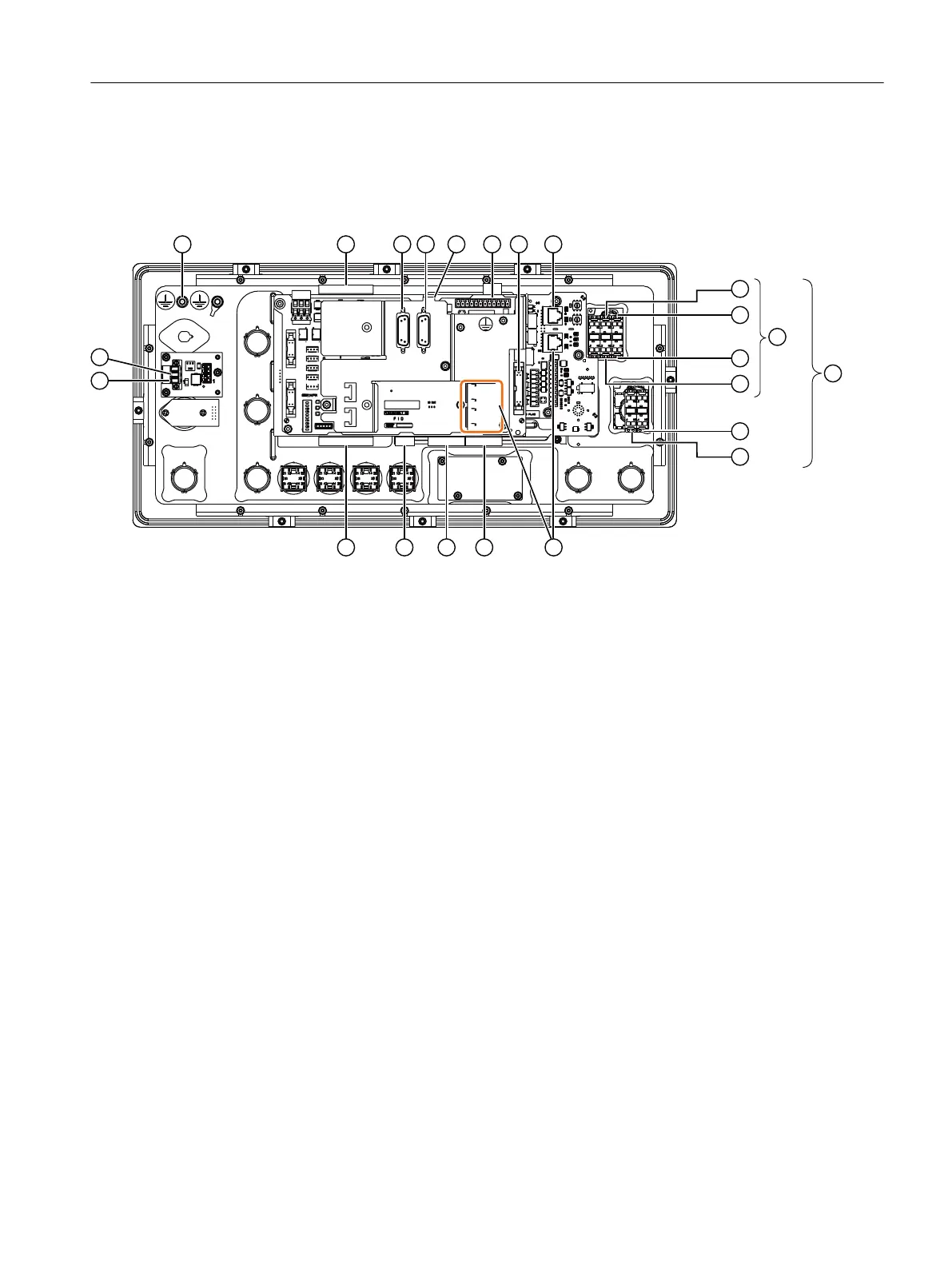

Figure 6-3 Connection overview
Connecting
6.2 General
Machine Pushbutton Panel: MPP 464 IE H
Equipment Manual, 03/2021, A5E50810237B AA 53
