Siemens OpenStage 15 Administration Manual

Administration
A31003-S2000-M102-2-76A9, 28/05/2009
3-68 OpenScape Voice - OpenStage Family, Administration Manual
administration.fm
Programmable Keys

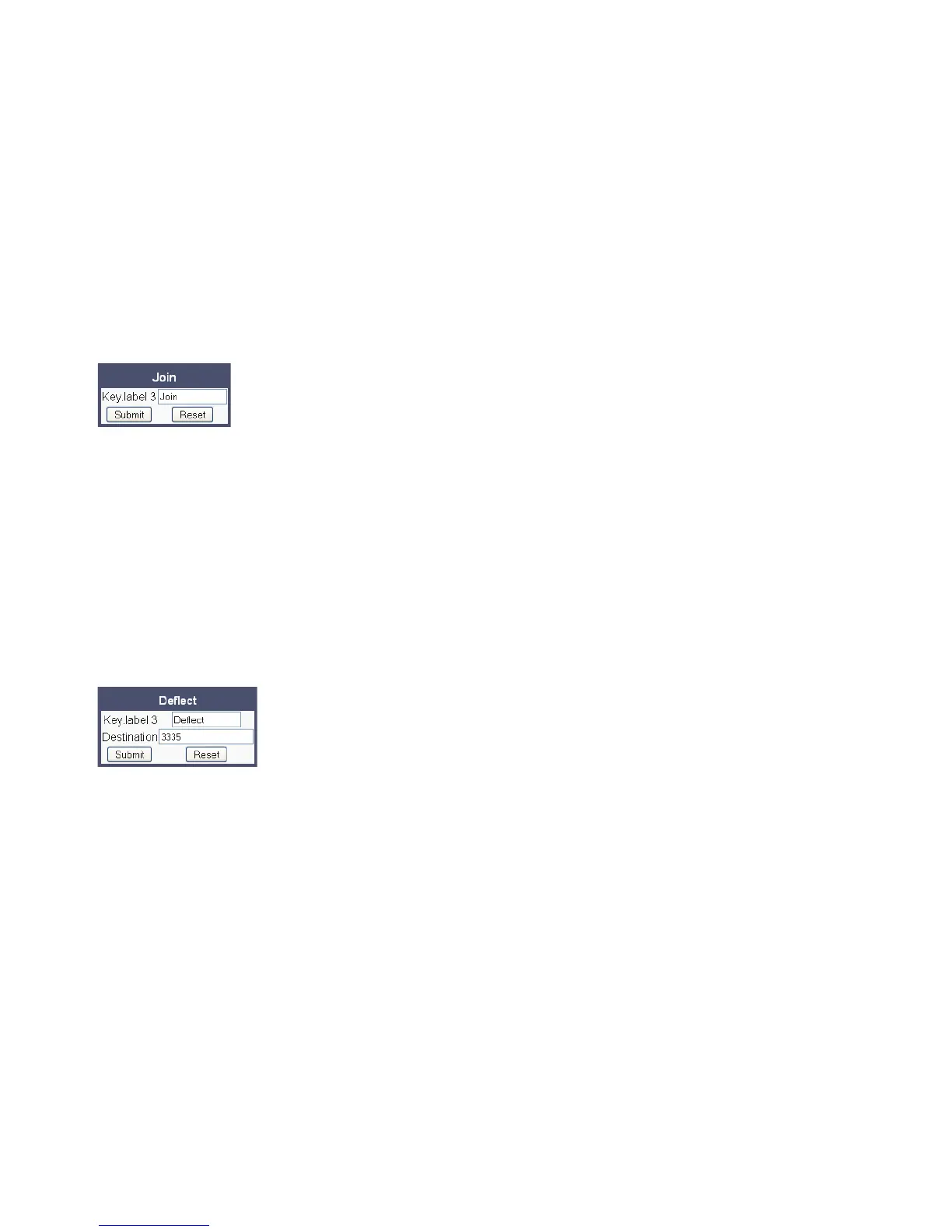

3.6.8 Join Two Calls
Call transfer, applicable when there is one active call and one call on hold. The active call and
the held call are connected to each other, while the phone that has initiated the transfer is dis-
connected.
The label displayed to the left of the key is defined in Key label <key number>.
Administration via WBM
System > Features > Program keys > Join
3.6.9 Deflect A Call
On key press, an incoming call is deflected to the specified destination.
The label displayed to the left of the key is defined in Key label <key number>.
The target destination is defined in the Destination parameter.
Administration via WBM
System > Features > Program keys > Deflect
3.6.10 Shift Level
Shift the level for the program keys. When activated, the functions assigned to the shifted level
are available on the program keys.
The label displayed to the left of the key is defined in Key label <key number>.
Administration via WBM
System > Features > Program keys > Shift

Siemens OpenStage 15 Specifications

General

Type	IP Phone
Connectivity	Ethernet
Power over Ethernet (PoE)	Yes
Speakerphone	Yes
Keys	Fixed function keys
Headset Port	Yes
Protocols	SIP
Display	Monochrome display
Audio	G.711, G.729
Power Supply	PoE or external power adapter
