Siemens OpenStage 15 Administration Manual

administration.fm
A31003-S2000-M102-2-76A9, 28/05/2009
OpenScape Voice - OpenStage Family, Administration Manual
3-71
Administration
Programmable Keys

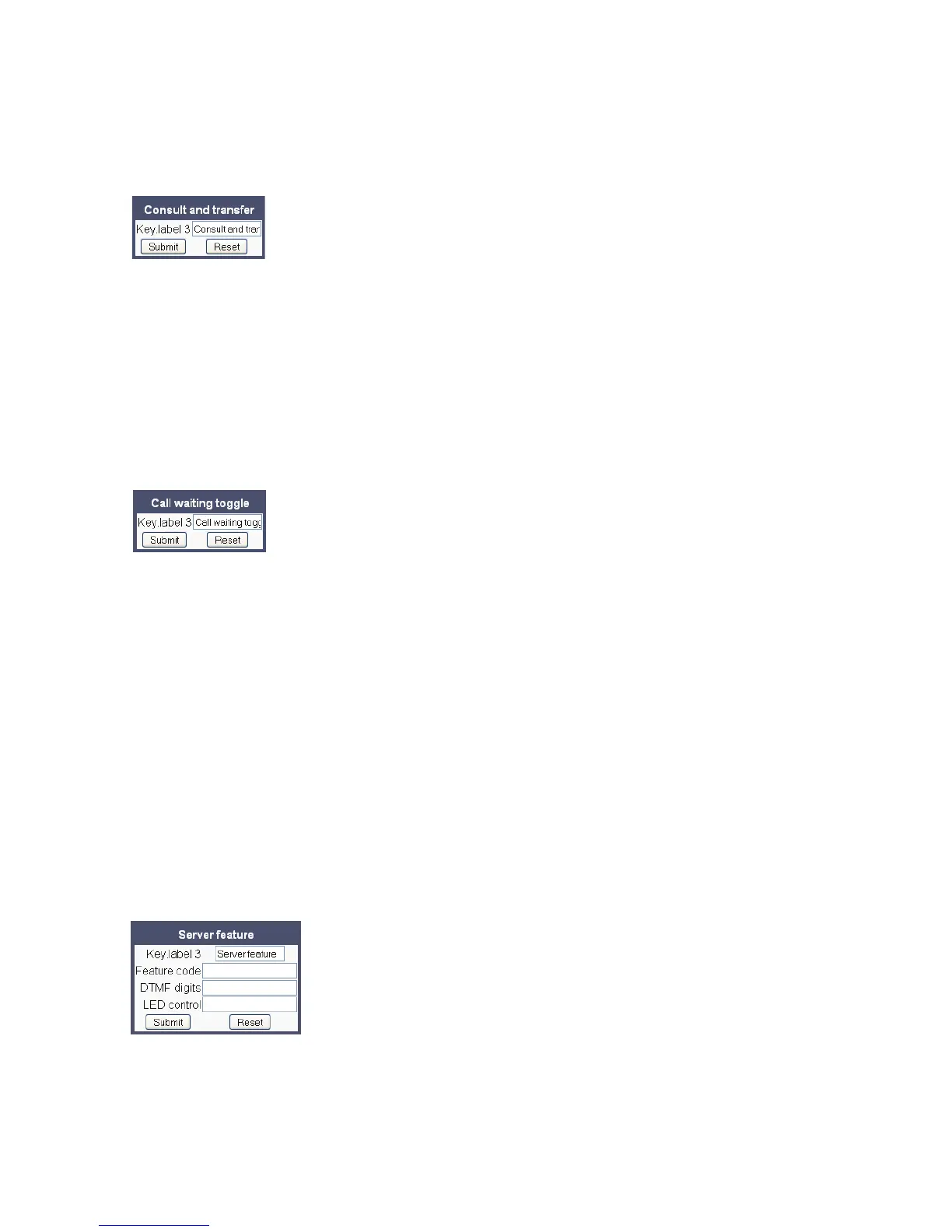

Administration via WBM
System > Features > Program keys > Consult and transfer
3.6.16 Toggle Call Waiting
Enables or disables the call waiting feature. If enabled, calls from a third party are allowed dur-
ing an active call.
The label displayed to the left of the key is defined in Key label <key number>.
Administration via WBM
System > Features > Program keys > Call waiting toggle
3.6.17 Server Feature
Invokes a feature on the SIP server. The status of the feature can be monitored via the LED
associated to the key.
The label displayed to the left of the key is defined in Key label <key number>.
The code entered in Feature code will be sent in a SIP INVITE to the SIP server.
The code entered in DTMF digits will be sent to the SIP server as a DTMF signal. As a pre-
condition, an audio path routed via the SIP server must exist.
The SIP URI configured in LED control will receive the status notifications (SIP NOTIFY) from
the SIP server. The LED is switched on or off accordingly.
Administration via WBM
System > Features > Program keys > Server feature

Siemens OpenStage 15 Specifications

General

Type	IP Phone
Connectivity	Ethernet
Power over Ethernet (PoE)	Yes
Speakerphone	Yes
Keys	Fixed function keys
Headset Port	Yes
Protocols	SIP
Display	Monochrome display
Audio	G.711, G.729
Power Supply	PoE or external power adapter
