Fail-Safe Modules
7.5 4/8 F-DI DC24V PROFIsafe Digital Electronic Module
ET 200S Distributed I/O System - Fail-Safe Modules
Installation and Operating Manual, 08/2008, A5E00103686-07
107
Terminal Assignment

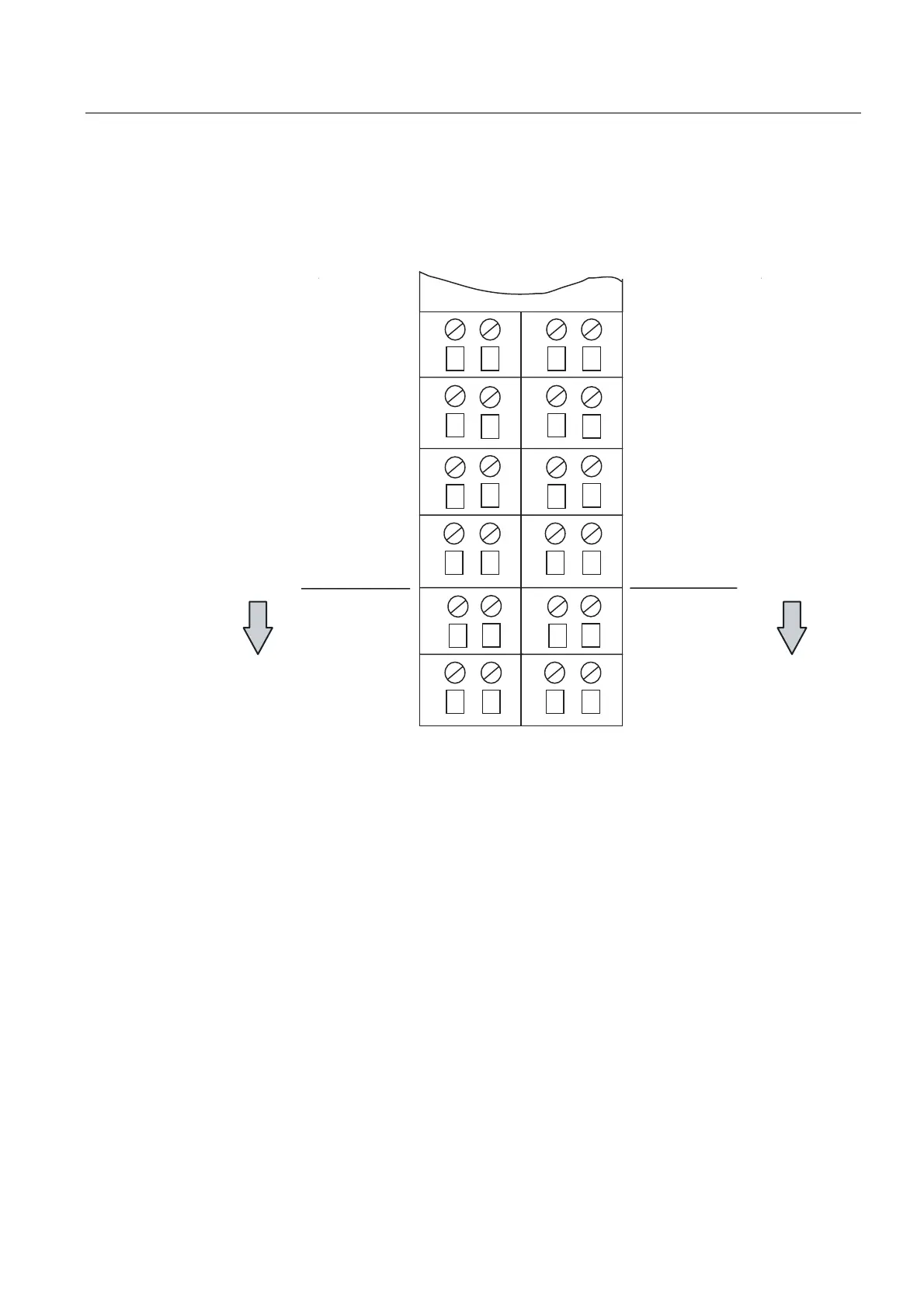

The figure below shows the terminal assignment of the EM 4/8 F-DI DC24V PROFIsafe for
the supported terminal module TM-E30S44-01, TM-E30C44-01, TM-E30S46-A1 and TM-
E30C46-A1.
$8;$8;3(
$8;$8;3(
',',
9V9V
9V9V
',',
',',
',',
9V9V
9V9V
$
$
$
$
$
$
$
$
$8;$8;3(
$8;$8;3(
70($
70($
DI Fail-safe digital input
Vs1 Internal sensor power supply 1 for DI 0 to DI 3
Vs2 Internal sensor power supply 2 for DI 4 to DI 7
For TM-E...46-A1 AUX 1 bus implemented. Connection to terminals A3 through A16 for any
connection of PE (individual grouping of sensor supplies possible)
Figure 7-16 Terminal assignment TM-E...44-01/TM-E...46-A1 for EM 4/8 F-DI DC24V PROFIsafe
