Product Overview
1.3 Using ET 200S Fail-Safe Modules
ET 200S Distributed I/O System - Fail-Safe Modules
Installation and Operating Manual, 08/2008, A5E00103686-07
15
● For the central use of the fail-safe ET 200S modules with distributed safety, you require
an IM 151-7 F-CPU or IM 151-8 PN/DP F-CPU.
When using fail-safe ET 200S I/O modules in F-systems, the information contained in the
following manuals applies:
●
ET 200S distributed I/O system
●
Safety Engineering in SIMATIC S7
●
S7 Distributed Safety, Configuring and Programming or S7 F/FH Systems, Configuring
and Programming
F-System with ET 200S

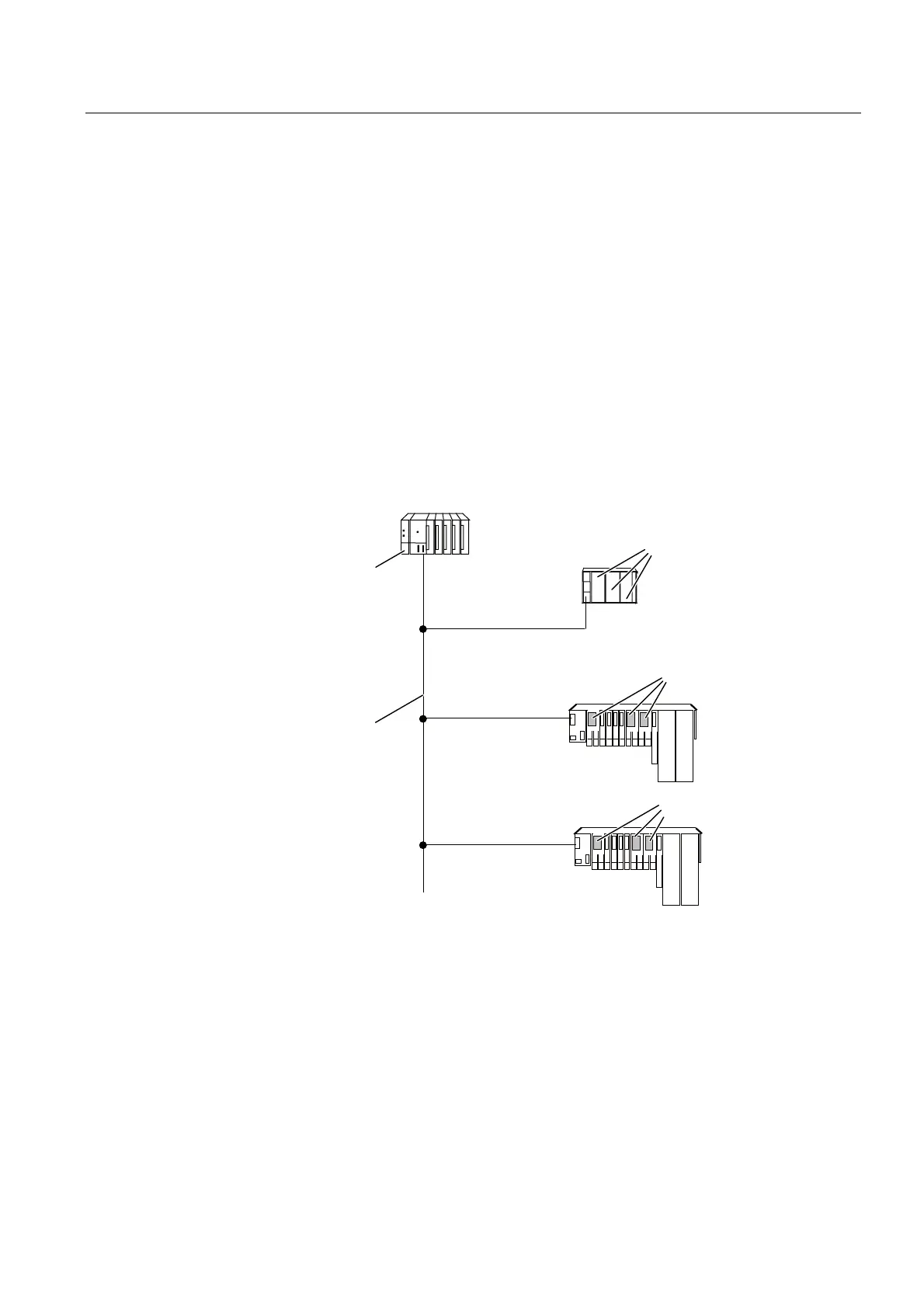

The following figure presents an example configuration for an S7 Distributed Safety F-
system including an ET 200S on PROFIBUS DP/PROFINET IO.
The fail-safe DP master/IO controller exchanges safety-related and non-safety-related data
with the fail-safe and standard ET 200S modules, etc.
(7SUR
(76

(76

352),%86'3
352),1(7,2
6)6)(76)&38
HJ&38'3
)DLOVDIH
PRGXOHV
)DLOVDIH
PRGXOHV
)DLOVDIH
PRGXOHV
Figure 1-1 S7 Distributed Safety Fail-Safe Automation System (Example Configuration)
