Siemens POLYCOOL RWR470.10 User Manual

2 Operation

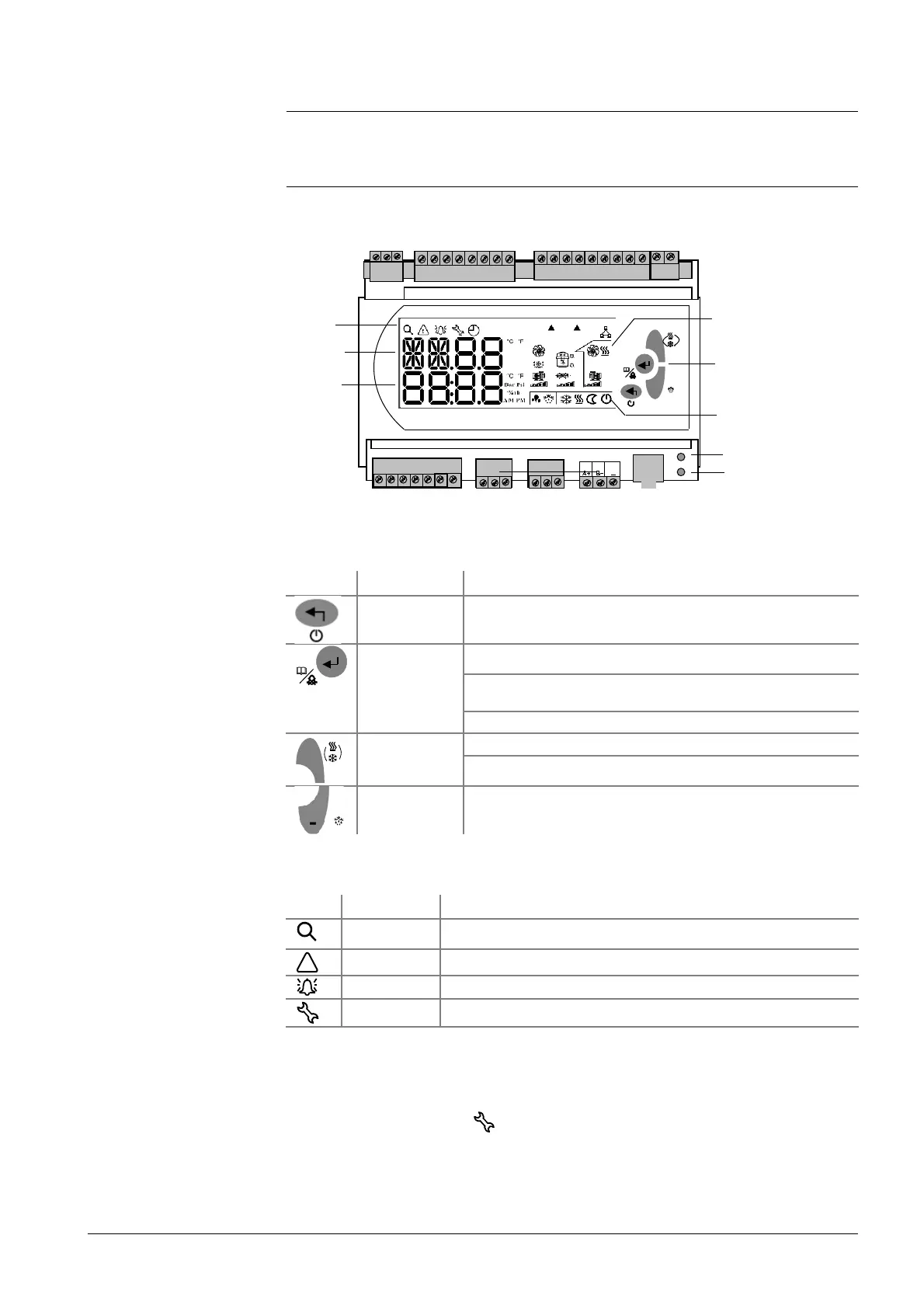

LCD Display
Operation of RWR470.10 is fully driven by buttons and menus.
Operation
buttons
System
Modes
SIEMENS
RWR4 7 0.10
PolyC o o l
Y2Y1 G0
Q84Q74Q23
PE
X1
GND
X2 X3
GND
X4
GND
X5
X6
+24V+5V
Q64Q54Q 44Q34Q24Q14Q13
D1 M D2 D3 M D4 D5 MG G0
RS485
GND
+
-
RJ45
LED 1
Display 2
(Value)
Display 1
(Parameter)
Menus
LED 2
Devices
Button Name Use
<Esc> In Menu /parameter setting mode, press it to return to the previous menu
level, or to reject the value entered
<Enter> Press down it for more than 2 seconds and release it to enter the Menu
mode
In Menu/parameter setting mode, press it to confirm the selected menu
level, or the value entered
Press it to acknowledge/reset warnings and alarms
+
<Plus> Press it for 2 seconds to activate the System Mode in stop mode
Or, press it to select the menu level, or to increase the value in
Menu/parameter setting mode
<Minus> Press it to select the menu level, or to decrease the value in
Menu/parameter setting mode
Icon Meaning Function
Query/view Actual values of all temperature
!
Warning Existence of warning, and the latest 10 warnings
Alarm Existence of alarm and the latest 20 alarms
Parameters Set parameters and values (see also Menu Tree)
The unit of compressor and pump running time is 100 hours.
As for how to access the Query/Warning/Alarm/Parameter menus above, see also
<Chapter 4.2 Accessing the Menus>
Parameters listed under the menu vary with the password privileged user.
3/28
Siemens Building Technologies SIEMENS Controller HEAT PUMP controller
HVAC Products 27.11.2006
Operating buttons
Legend for menus
Note
Notes
