Siemens PS2 User Manual

Dyna-Flo Control Valve Services Ltd.
Phone: 780 • 469 • 4000 | Toll Free: 1 • 866 • 396 • 2356 | www.dynafl o.com
P-PS2Q0619A
10
NEW LINEAR MOUNTING INSTRUCTIONS

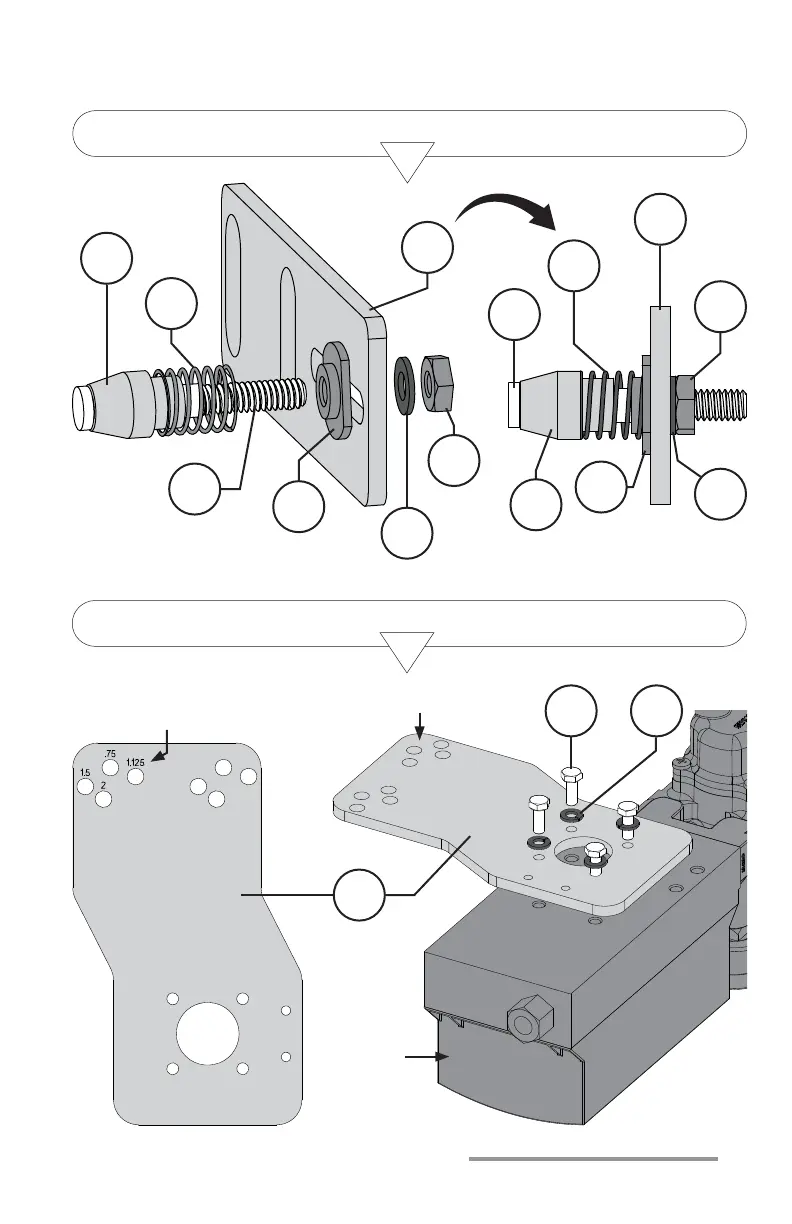

Figure 4B Sliding Pin Assembly Diagram
Figure 4C Yoke Bracket Mounting
FRONT OF BRACKET
TRAVEL MARKINGS
910
8
BACK OF BRACKET
PS2
1
7
6
4
2
3
5
6
7
1
5
4
3
2

Siemens PS2 Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Hazardous Area Certification	ATEX, IECEx, FM, CSA
Type	Electropneumatic
Input Signal	4 to 20 mA
Enclosure Rating	IP66/NEMA 4X
Communication	HART
