Siemens RD150 - Adjustment System

22
MAN-100472RD150 - Operating Instructions
57030-EN-180717

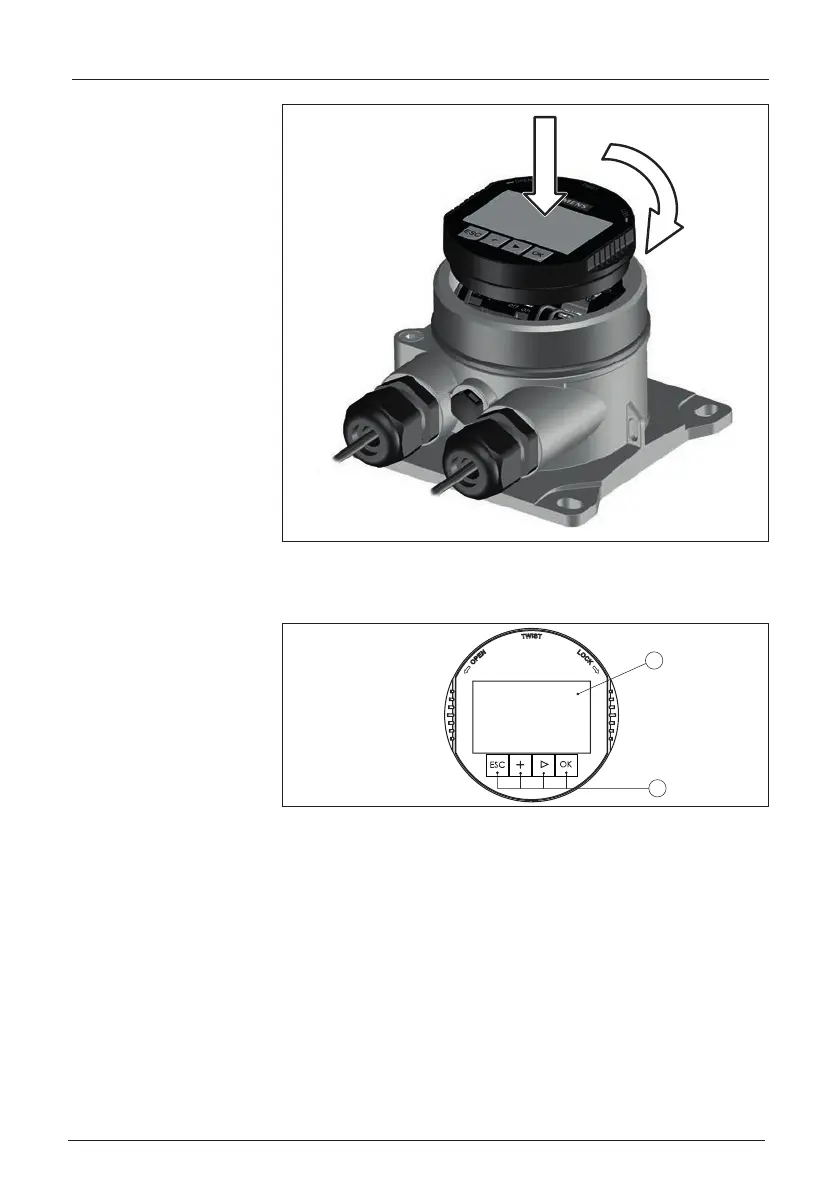

Fig. 16: Mounting of the display and adjustment module
6.3 Adjustment system
1
2
Fig. 17: Display and adjustment elements
1 LC display
2 Adjustment keys
•
[OK] key:
– Move to the menu overview
– Conrmselectedmenu
– Edit parameter
– Save value
•
[->] key:
– Change measured value presentation
– Select list entry
– Select menu items in the quick setup menu
– Select editing position
•
[+] key:
Key functions
