3 Product description
3.1 Conguration
Thetypelabelcontainsthemostimportantdataforidenticationand
use of the instrument:
2
3
1
5
6
4
7
11
10
9
8

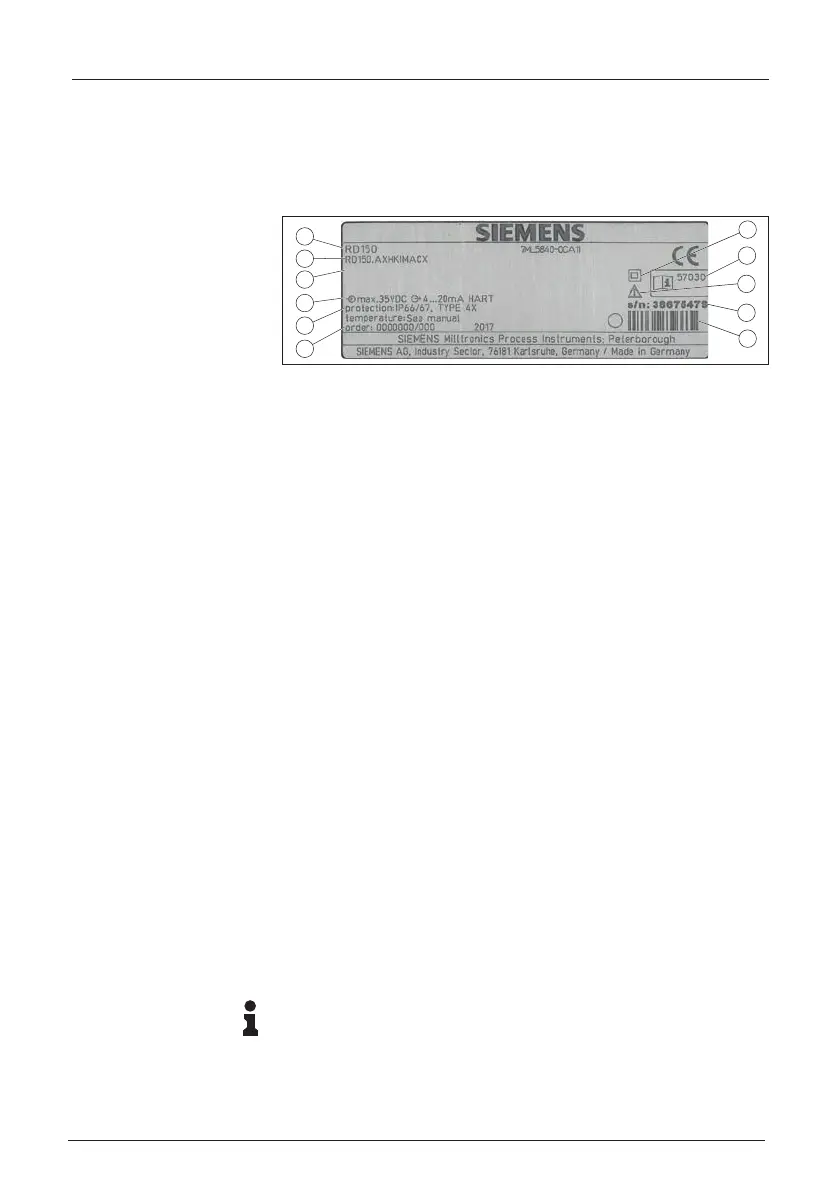

Fig. 1: Layout of the type label (example)
1 Instrument type
2 Product code
3 Field for approvals
4 Electronics/Voltage supply
5 Protection rating
6 Order number
7 Identicationcode
8 Serial number of the instrument
9 Reminder to observe the instrument documentation
10 ID number, instrument documentation
11 Device protection class
TheRD150isavailableindierenthousingmaterials,seechapter
"Technical data".
The instrument is optionally available with or without display and
adjustment module.
This operating instructions manual applies to the following instrument
versions:
•
Software from 1.10.00
•
Hardware from 1.00.00
The scope of delivery encompasses:
•
RD150
•
Display and adjustment module (optional)
•
Mounting accessories (optional)
•
Documentation
– This operating instructions manual
– Ex-specic"Safety instructions" (with Ex versions)
– Ifnecessary,furthercerticates
Information:
In this operating instructions manual, the optional instrument features
are also described. The actual range of functions is determined by the
orderspecication.
Type label
Instrument versions
Scope of this operating
instructions manual
Scope of delivery
