MAN-100472 RD150 - Operating Instructions
57030-EN-180717

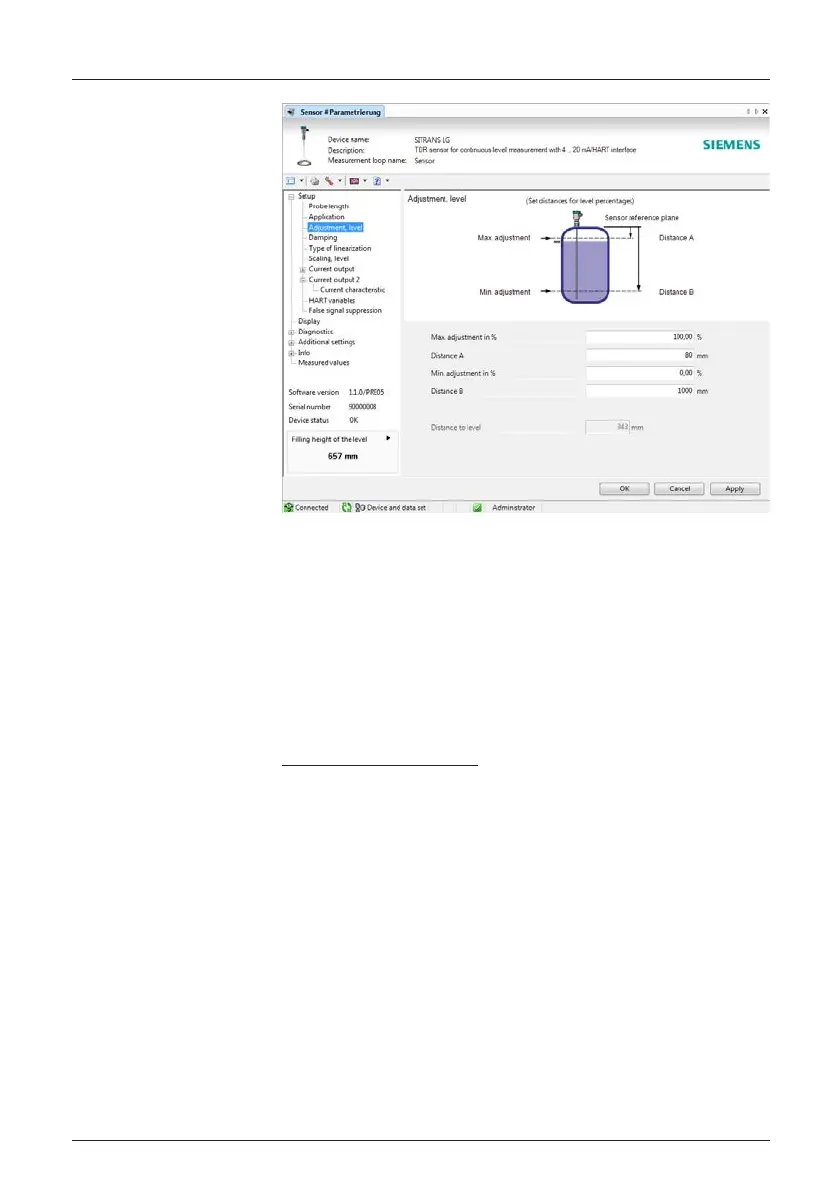

Fig. 20: Example of a DTM view
ThedeviceDTMincludesanassistantforsimpleprojectconguration
simplifying also the adjustment considerably. You can save and print
your project documentation as well as import and export projects.
You can also save measured value and echo curves in the DTM.
Furthermore a tank calculation program as well as a multiviewer for
indication and analysis of the saved measured value and echo curves
are available.
The supplied DVD includes the respective device DTM. How-
ever, you can also download the DTM from our homepage
www.siemens.com/sitranslg.
7.3 Saving the parameterisation data
We recommend documenting or saving the parameterisation data via
PACTware. That way the data are available for multiple use or service
purposes.
Device DTMs
