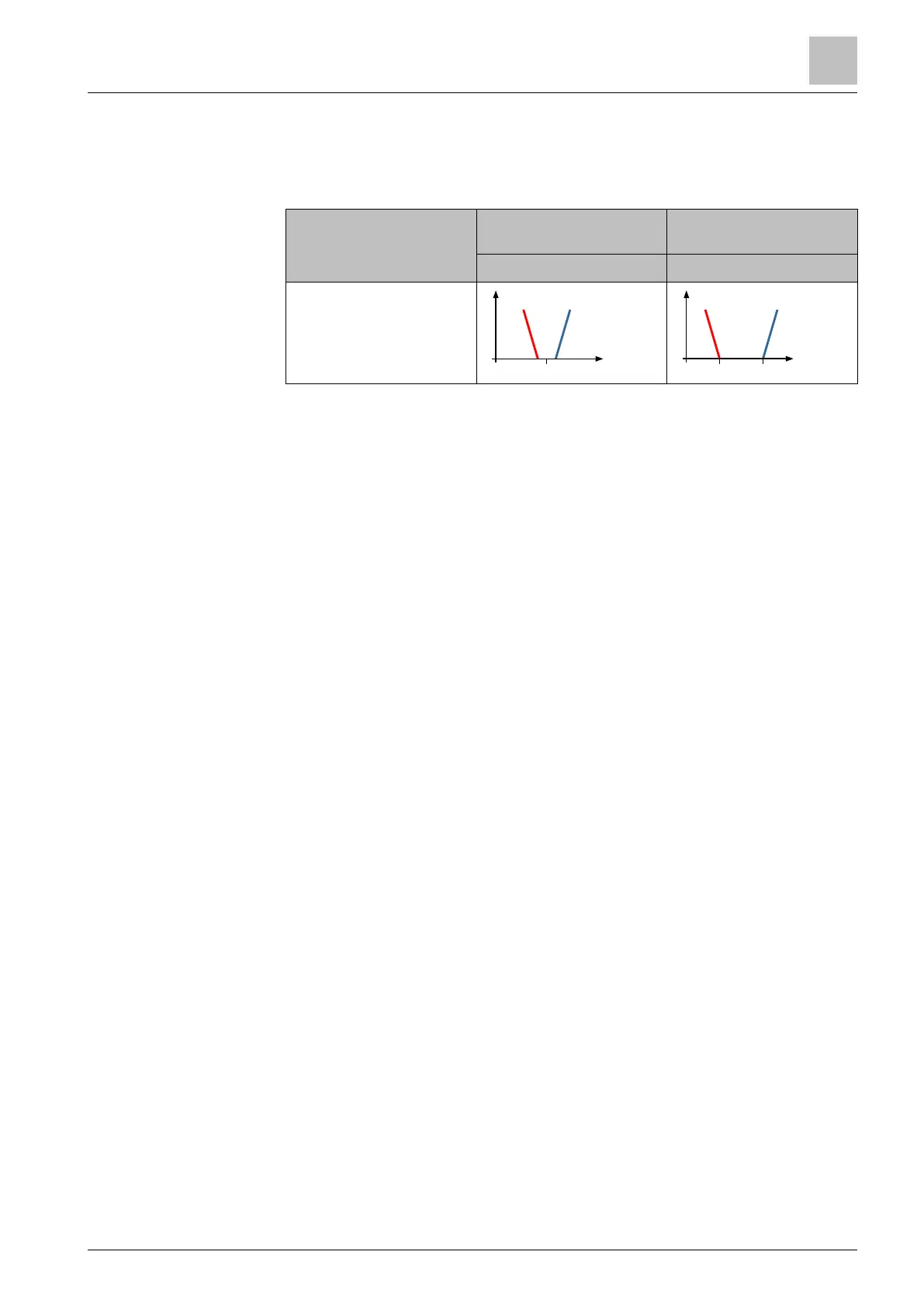

4-pipe applications
In 4-pipe applications, the Comfort setpoint (W) is in the middle of the dead
zone, between the heating and cooling sequence.
The dead zone can be defined via parameter P05.
Application
Comfort mode
Standby (Economy)
mode
Heating and cooling
Heating and/or cooling
4-pipe
W
Setpoint for Comfort mode, P64
W
HeatEco/
Heating setpoint for Standby (Economy) mode, P06
W
CoolEco/
Cooling setpoint for Standby (Economy) mode, P07
E1
Electric heater sequence
Y
W
T
Y
W
CoolEco
T
W
HeatEco
