4 Applications
4.1 Overview
The RDB160BN BACnet MS/TP room thermostats support the following
applications. The applications can be configured using the local parameter
setting or via the system.

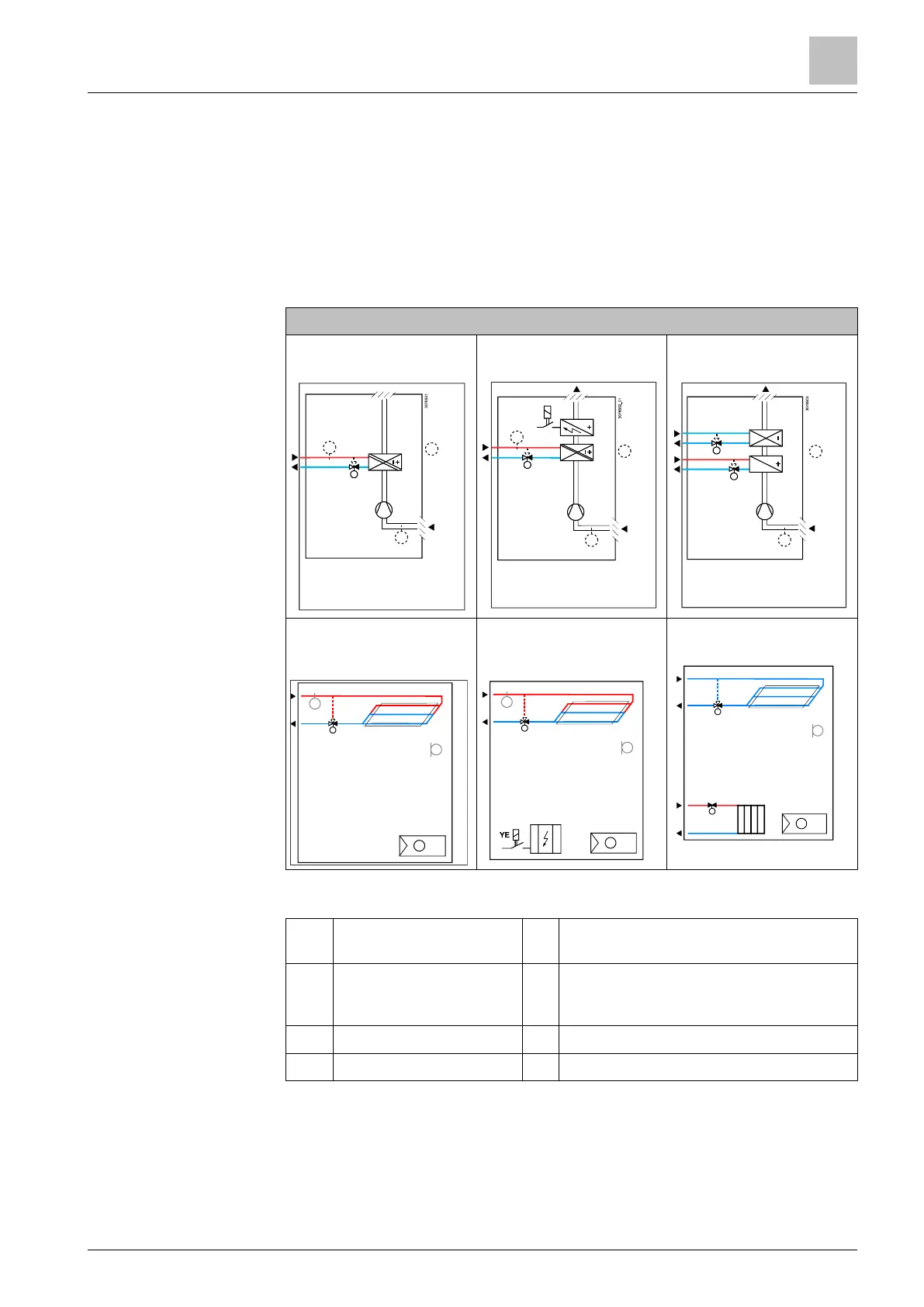

Applications, control outputs
●
2-pipe fan coil
●
2-pipe fan coil with
electric heater
●
4-pipe fan coil
●
Chilled/heated
ceiling
●
Chilled/heated
ceiling with electric
heater
●
Chilled ceiling with
radiator
YHC
Heating/cooling valve
actuator
M1
1-speed, 2-speed or 3-speed fan
YH
Heating valve actuator
B1
Return air temperature sensor or
external room temperature sensor
(optional)
YC
Cooling valve actuator
B2
Changeover sensor (optional)
YE
Electric heater
(B1)
M1
YHC
T
B2
T
T
(B1)
YHC
M1
T
YE
T
(B1)
T
(B1)
B2
T
YC
YH
M1
(B1)
T
(B1)
3191S11
N1
T
B1
T
B2
T
YHC
3191S12
N1
T
B1
T
B2
T
YHC
31
91
S
13
N1
T
B1
T
YC
YH
