Overview
Integration via KNX bus
2
20 | 186
A6V11545892_en--_e
Synco 700
Building automation and control system (BACS)
Gateway
Connection of meters via Modbus
OZW
Web server, connection of Synco, RDG/RDF & GAMMA
RMB
Central control, RDG/RDF integration
RDG/RDF
Thermostats for room climate control
Gamma Instabus
For lighting control and other room electrical applications
The RDG2..KN thermostats can be integrated into the Siemens building
automation and control systems (BACS) Desigo or into third-party systems. Either
S-Mode (group addressing) or individual addressing can be used for integration.

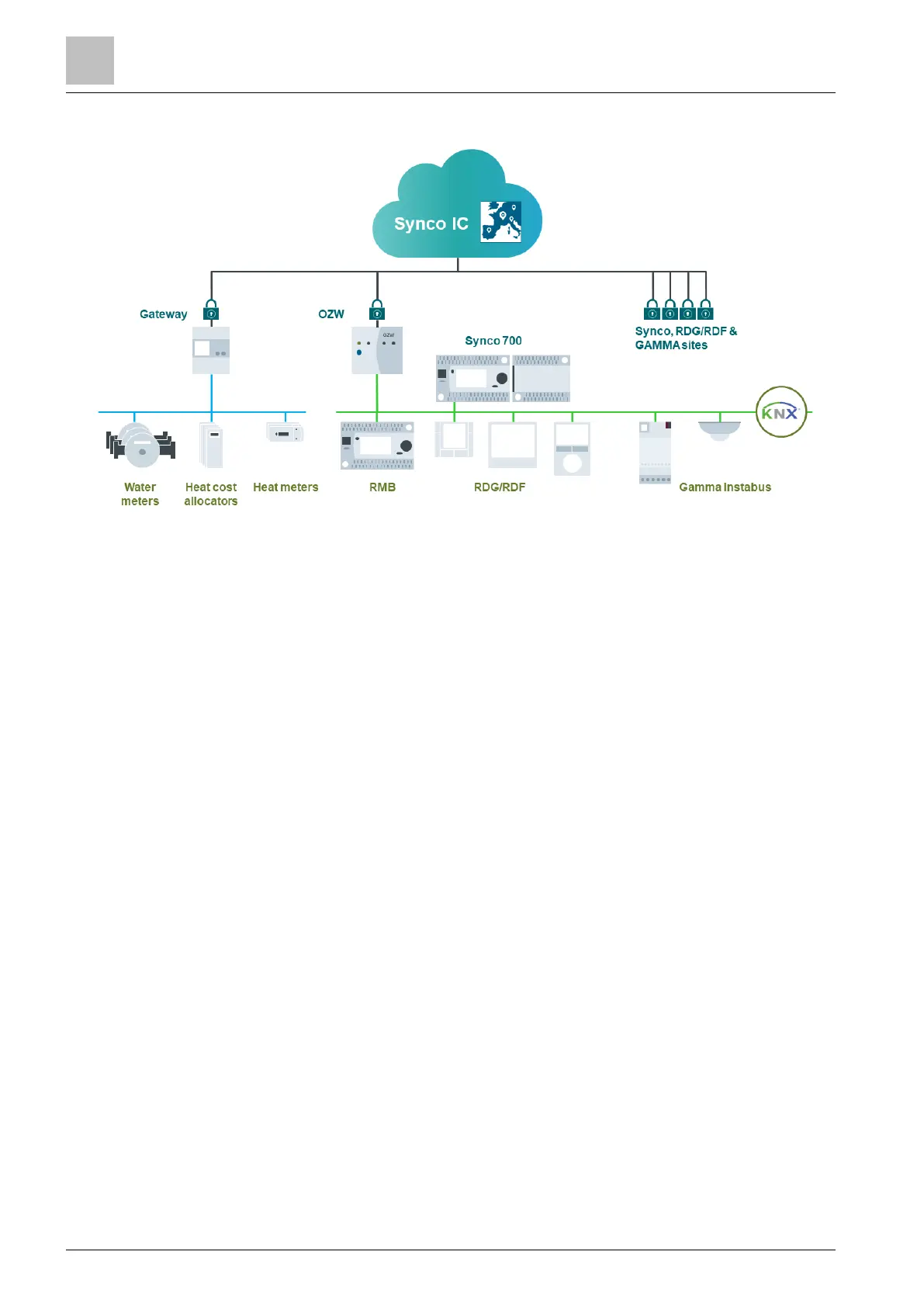

Synco topology
Legend
Desigo and third-party
systems
