4.7.6.2 4-pipe/2-stage heating and cooling (RDG2..KN)
In 4-pipe/2-stage applications, the thermostat controls max. 4 valves in heating and
cooling mode or heating/cooling mode by manual selection. Heating and cooling
mode (P001 = 4) is factory-set.
The 1
st
stage is activated when the acquired temperature is below (heating) or
above (cooling) the setpoint.
The 2
nd
stage is activated when the acquired room temperature exceeds the
"setpoint differential" value.
In heating and cooling mode, the 1
st
and 2
nd
stage for heating or cooling can be
activated at same time.
For applications with only 1-stage heating or 1-stage cooling, the number of
controlled outputs can be set to 3 via P200 (limit number of heating/cooling
sequence) accordingly.

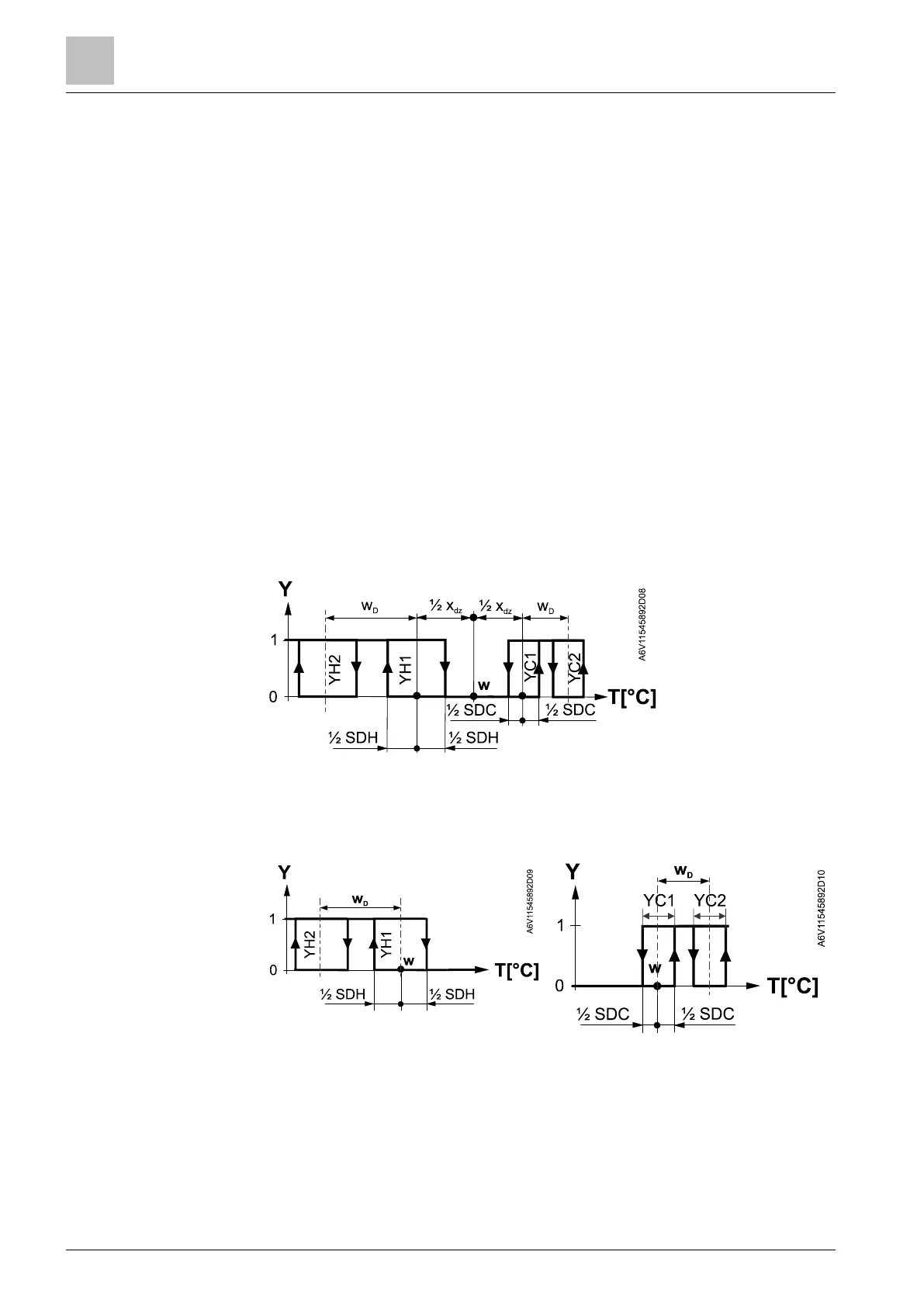

The diagrams below show the control sequence for On/Off control.
RDG26..KN can not be set as On/Off control output and is fixed as DC control
output.
Heating and cooling mode (P001 = 4)
Heating mode with manual selection
(P001 = 3) or
save energy (P010 = 2 & P014) in
heating sequence
Cooling mode with manual selection
(P001 = 3) or
save energy (P010 = 2 & P015) in
cooling sequence
T[°C] Room temperature
YH1, YC1 Control command
"Valve" stage 1
w Room temperature setpoint
YH2, YC2 Control command
"Valve" stage 2
X
dz
Dead zone (P055)
SDH Switching differential "Heating"
(P051)
w
D
Setpoint differential (P056)
SDC Switching differential "Cooling"
(P053)
