Functions
Control sequences
4
94 | 186
A6V11545892_en--_e

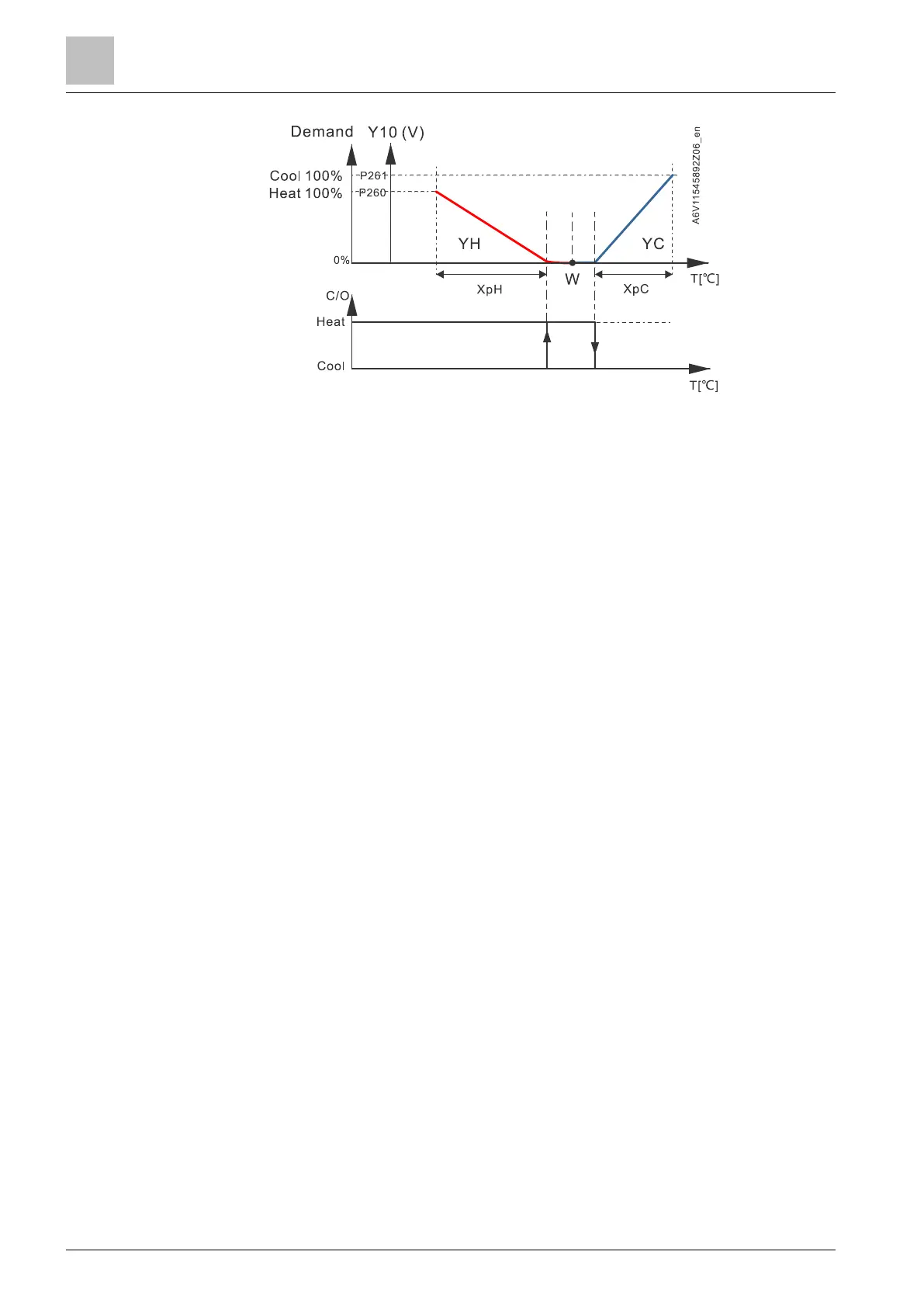

T[℃]
Room temperature
Y10
DC 0…10 V signal
W
Room temperature setpoint
YH
Control command "Valve"
(heating)
YC
Control command "Valve"
(cooling)
P260
Flow limitation function for
heating only
P261
Flow limitation function for
cooling only
The connection diagram for 4-pipe applications with PICV and 6-port ball valve as
changeover is available in Connection diagrams [➙ 163].
