4.7 Control sequences
4.7.1 Applications and sequences
Application VAV Sequences
Single-duct
h ( \ ), c ( / )
Single-duct & electric heater
el.h + c ( 7\ / )
Single-duct & radiator
rad + c ( r\ / ),
Single-duct with heat/cool coil
h + c ( \ / )

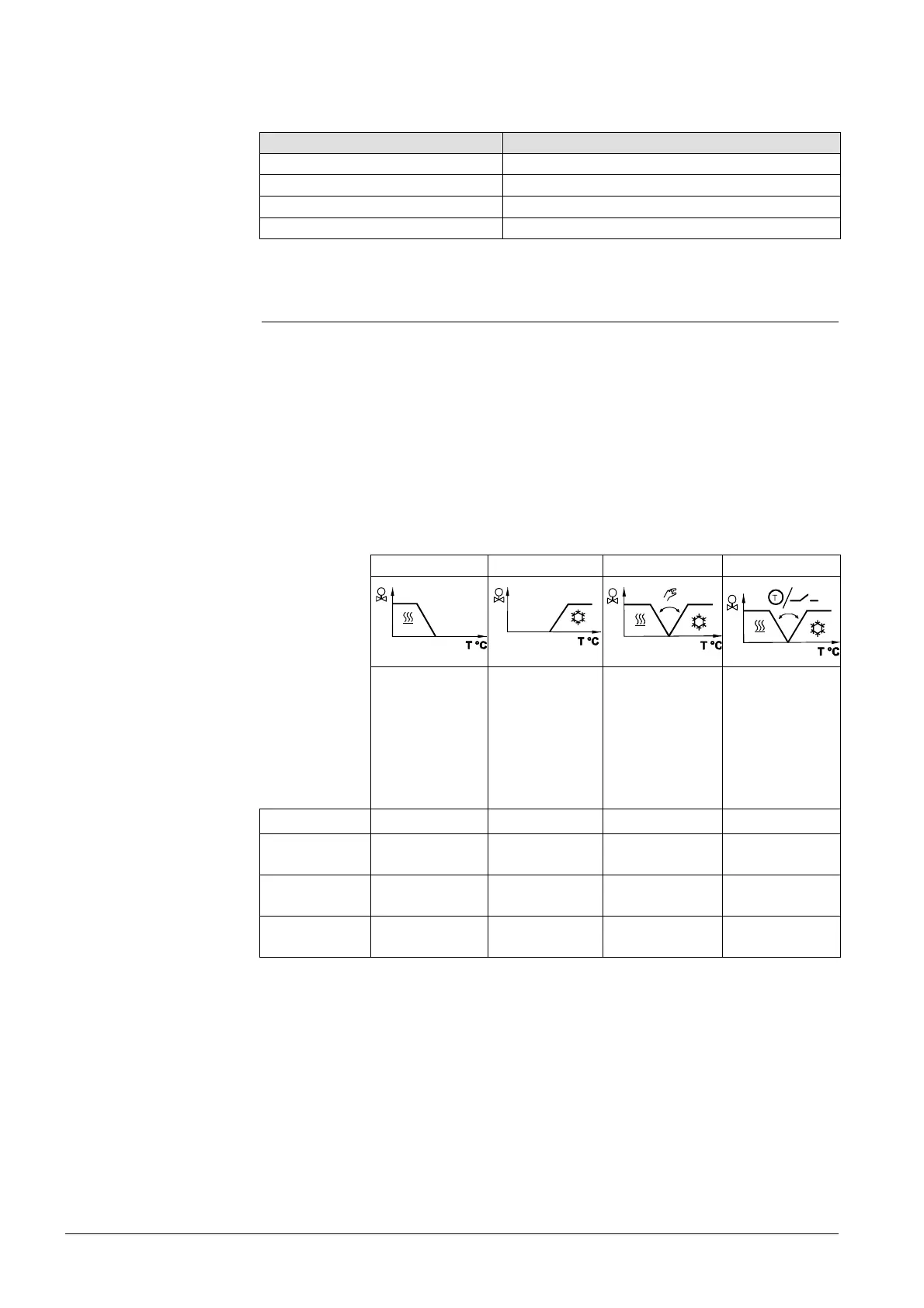

4.7.2 Sequences overview (setting via parameter P01)
The sequence can be set via parameter P01, if available.
The thermostats can be used in systems featuring:
· Heating only (P01 = 0)
· Cooling only (P01 = 1)
· Manual heating/cooling changeover (P01 = 2)
· Automatic heating/cooling changeover (P01 = 3)
· Heating and cooling mode (e.g. 4-pipe system) (P01 = 4)
The available modes depend on the application
(selected via DIP switches, see section 4.5).
Parameter
P01 = 0
P01 = 1
P01 = 2
P01 = 3
Sequence
Mode
Available for:
ê
Heating mode Cooling mode
Manually select
heating or cooling
mode
Automatic
heating/cooling
changeover via
external water
temperature
sensor or remote
switch
Single-duct
ü ü
ü
1)
ü
1)
Single-duct &
electric heater
3) 3) 3) 3)
Single-duct &
radiator
3) 3) 3) 3)
Single-duct with
heat/cool coil
ü
ü
ü
2)
ü
2)
1)
Changeover air
2)
Changeover water; heating/cooling coil
3)
The thermostat operates in heating AND cooling mode. P01 is not available
Notes:
