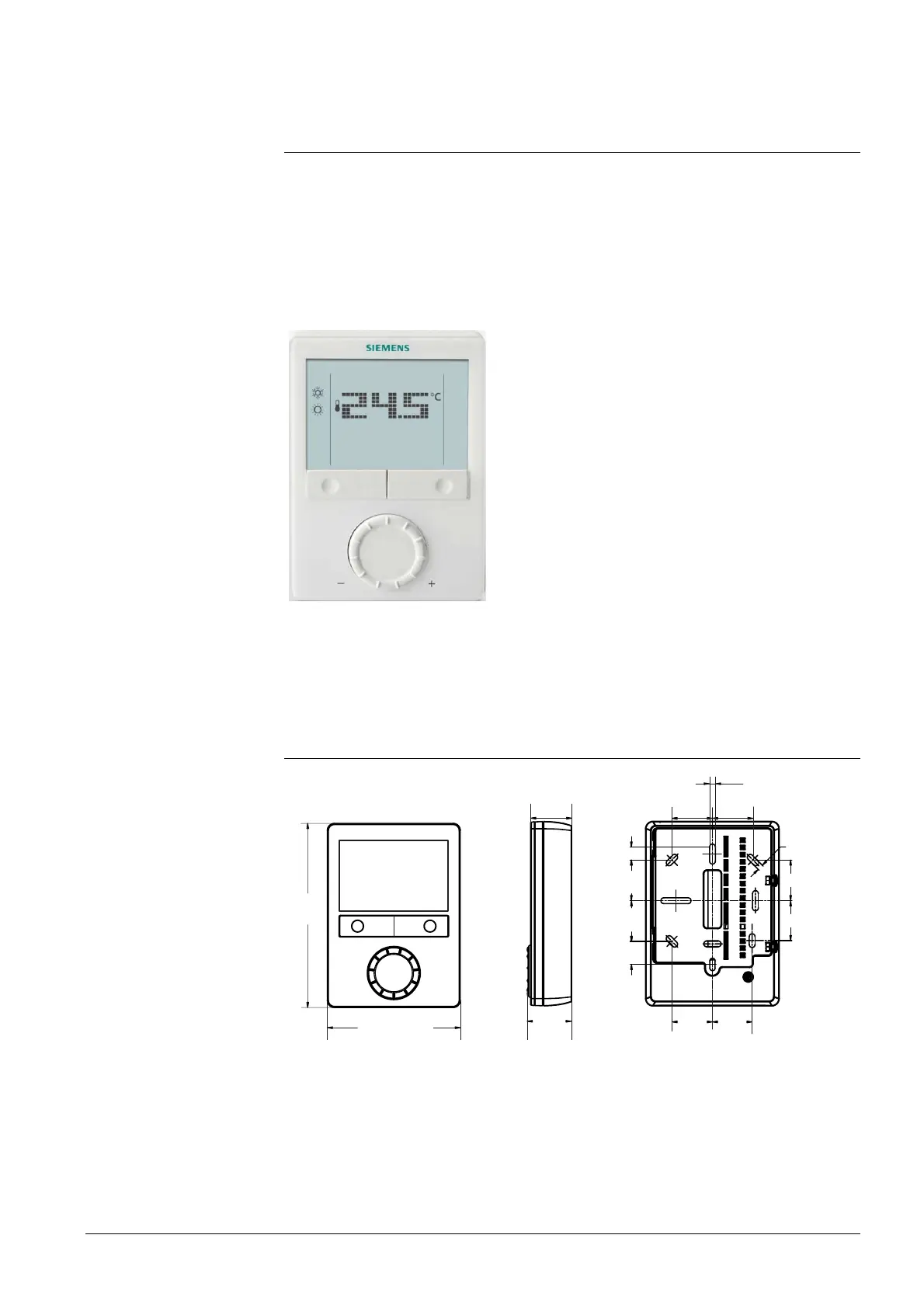

7 Mechanical design
7.1 General
The room thermostat consists of 2 parts:
· Plastic housing which accommodates the electronics, the operating elements
and the temperature sensor
· Mounting plate with the screw terminals
The housing engages in the mounting plate and is secured with 2 screws on the
left side.
For operation details, refer to section 5.2.
7.2 Dimensions
128.0
(5.04’’)
93.0 (3.66’’)
28.2
(1.11’’)
27.8
(1.09’’)
28.5
(1.12’’)
16.0
(0.63’’)
9.0
(0.35’’)
28.3
(1.11’’)
27.7(1.09’’)
4.0
(0.16’’)
4.0(0.16’’)
30.8
(1.21’’)
28.3(1.11’’)
28.3
(1.11’’)
28.3
(1.11’’)
28.3
(1.11’’)
mm (inch)
..
