Communication Ports
The RUGGEDCOM RMC20 can be equipped with various types of communication ports to enhance its abilities and
performance.

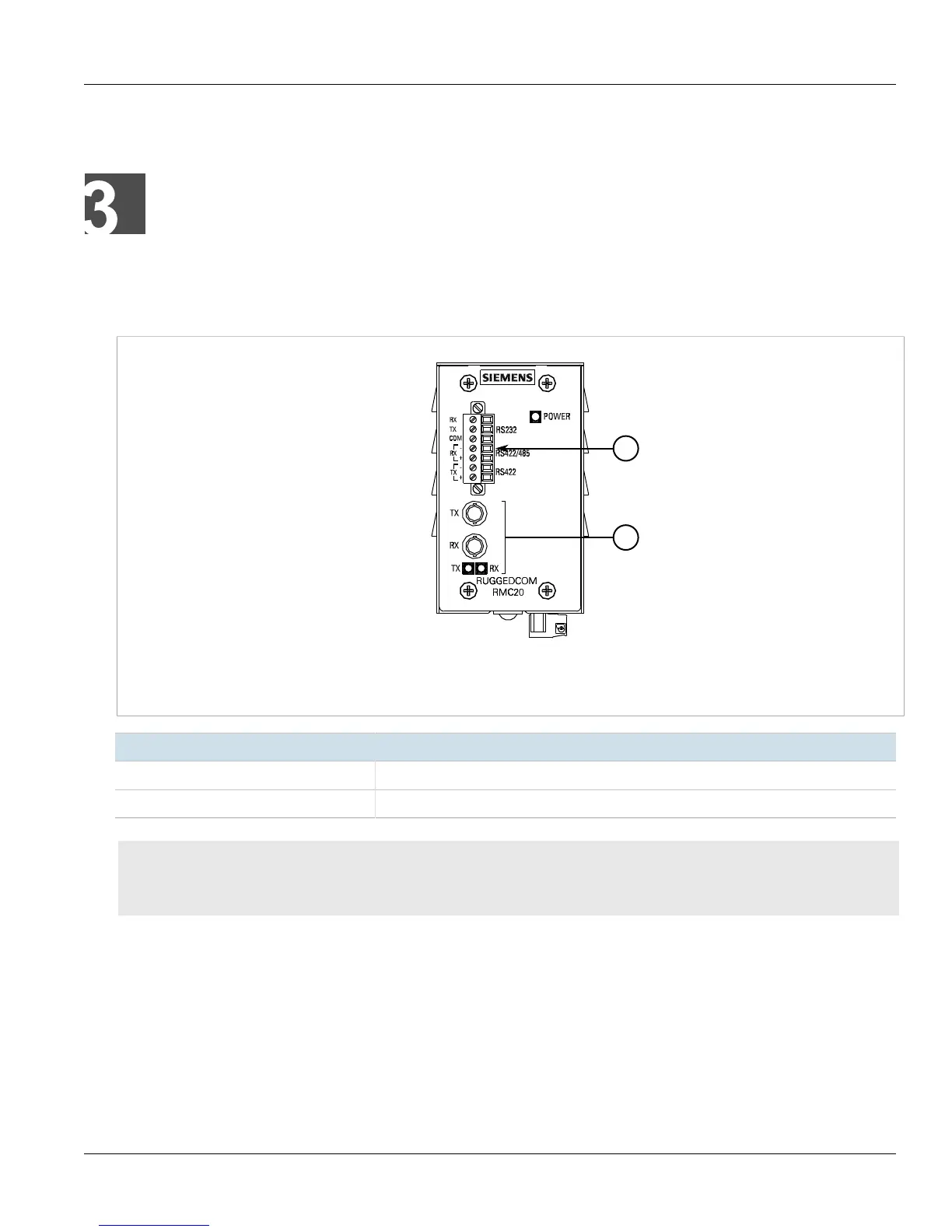

Figure10:Port Assignment
1.Port 1 2.Port 2
Port Type
1 RS232/RS485/RS422 Serial Terminal
2 Multi-Mode Fiber Optic Port
CONTENTS
• Section3.1, “Fiber Optic Ports”
• Section3.2, “Serial Terminal”
Section3.1
Fiber Optic Ports
Fiber optic ports are available with ST (Straight Tip) connectors. Make sure the Transmit (Tx) and Receive (Rx)
connections of each port are properly connected and matched to establish a proper link.
