Siemens RUGGEDCOM RMC30 - Connecting Power

RUGGEDCOM RMC30
Installation Guide
Chapter 2
Installing the Device
Mounting the Device to a Panel 7
Section2.1.2
Mounting the Device to a Panel
To mount the device to a panel, do the following:
1. Place the panel adapter against the panel and secure it with screws.
113
12
4
4
5
1

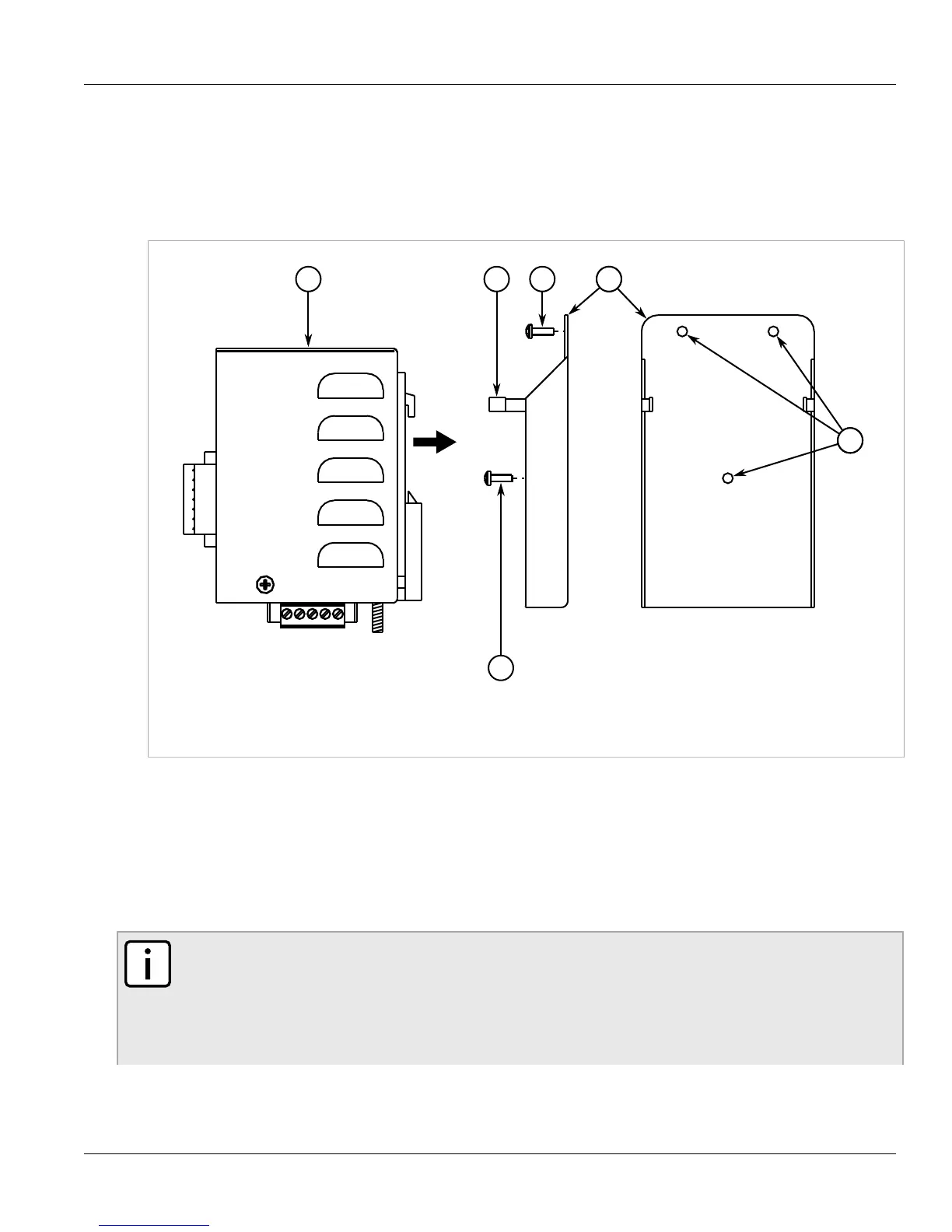

Figure3:Panel Mounting
1. RUGGEDCOM RMC30  2.Panel Adapter 3.Mounting Holes 4.Screw 5.Metal Clips
2. Insert the device into the adapter. Make sure the device is secured between the two metal clips.
Section2.2
Connecting Power
The RUGGEDCOM RMC30 supports a single integrated high AC/DC or low DC power supply
NOTE
• For 110/230 VAC rated equipment, an appropriately rated AC circuit breaker must be installed.
• For 125/250 VDC rated equipment, an appropriately rated DC circuit breaker must be installed.
• Use only #16 gage copper wiring when connecting terminal blocks.
• Equipment must be installed according to applicable local wiring codes and standards.
