RUGGEDCOM RS900
Installation Guide
2 Description
• Hazardous Location Certification: Class I Division 2
• -40 to 85 °C (-40 to 185 °F) ambient operating temperature (no fans)
• 20 AWG Galvanized Steel
• DIN or panel mounting options provide secure mechanical reliability
• [Optional] Conformal coated printed circuit boards
Universal Power Supply Options
• Fully integrated power supply
• Universal high-voltage range:
▫ 125-250 VDC or 100-240 VAC (Hazardous Environments)
▫ 88-300 VDC or 85-264 VAC (Non-Hazardous Environments)
• Dual low-voltage DC inputs: 24 or 48 VDC
• Terminal blocks for reliable maintenance free connections
• CSA/UL 60950-1 safety approved to 85 °C (185 °F)
Section1.2
Description
The RUGGEDCOM RS900 features various ports, controls and indicator LEDs on the front panel for connecting,
configuring and troubleshooting the device.
6
2
3
1
5
4
4
7
8
9

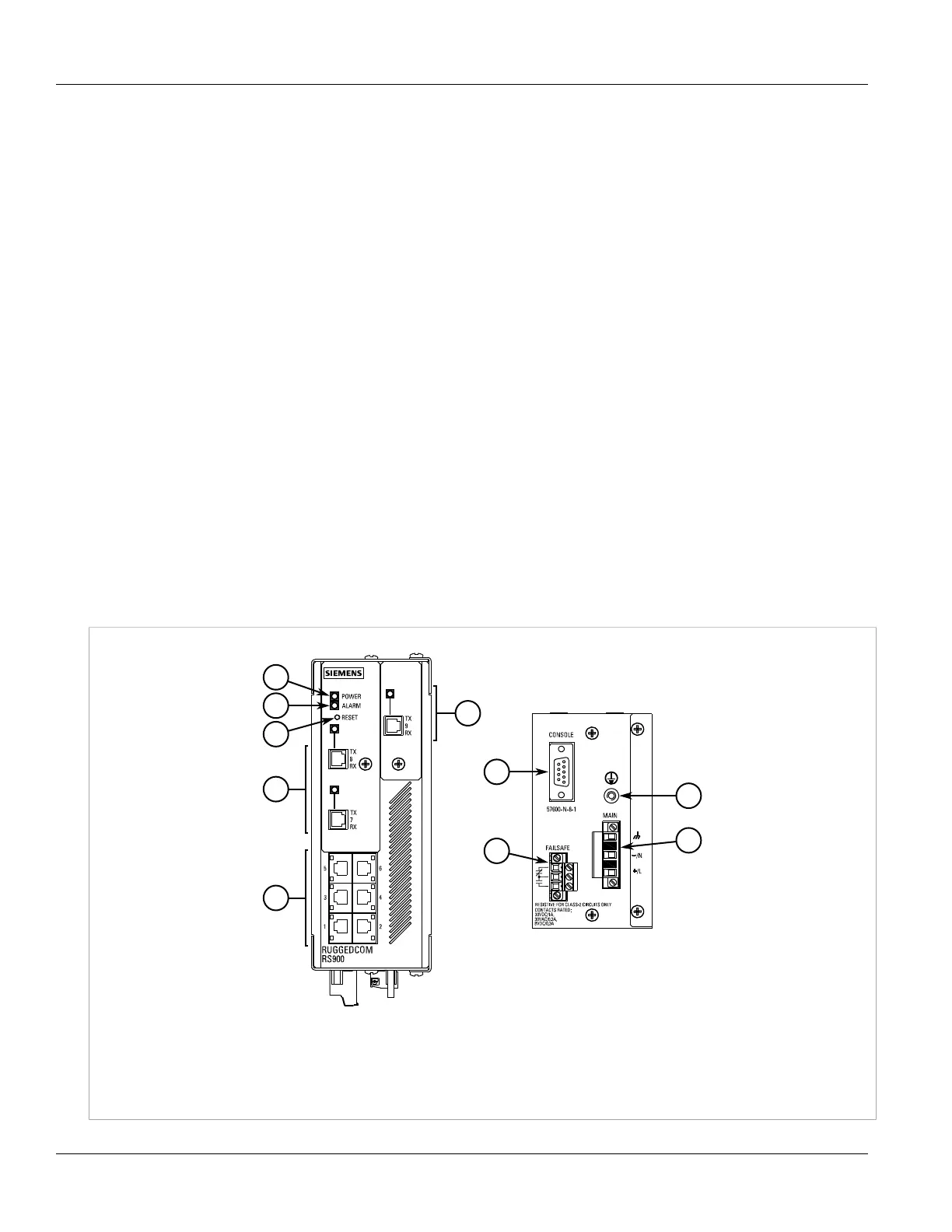

Figure1:RUGGEDCOM RS900
1.POWER LED 2.ALARM LED 3.RESET Button 4.[Optional] Copper (10/100Base-TX) or Fiber Optic (100Base-FX) Ethernet Ports
5.Copper (10/100Base-TX) Ethernet Ports 6.RS232 Console Port (Serial) 7.Failsafe Alarm Relay 8.Chassis Ground Connection
9.Power Supply Terminal Block
