Siemens RUGGEDCOM RS900 Installation Guide

RUGGEDCOM RS900
Installation Guide
Chapter 2
Installing the Device
Mounting the Device to a Panel 9
1
1
2

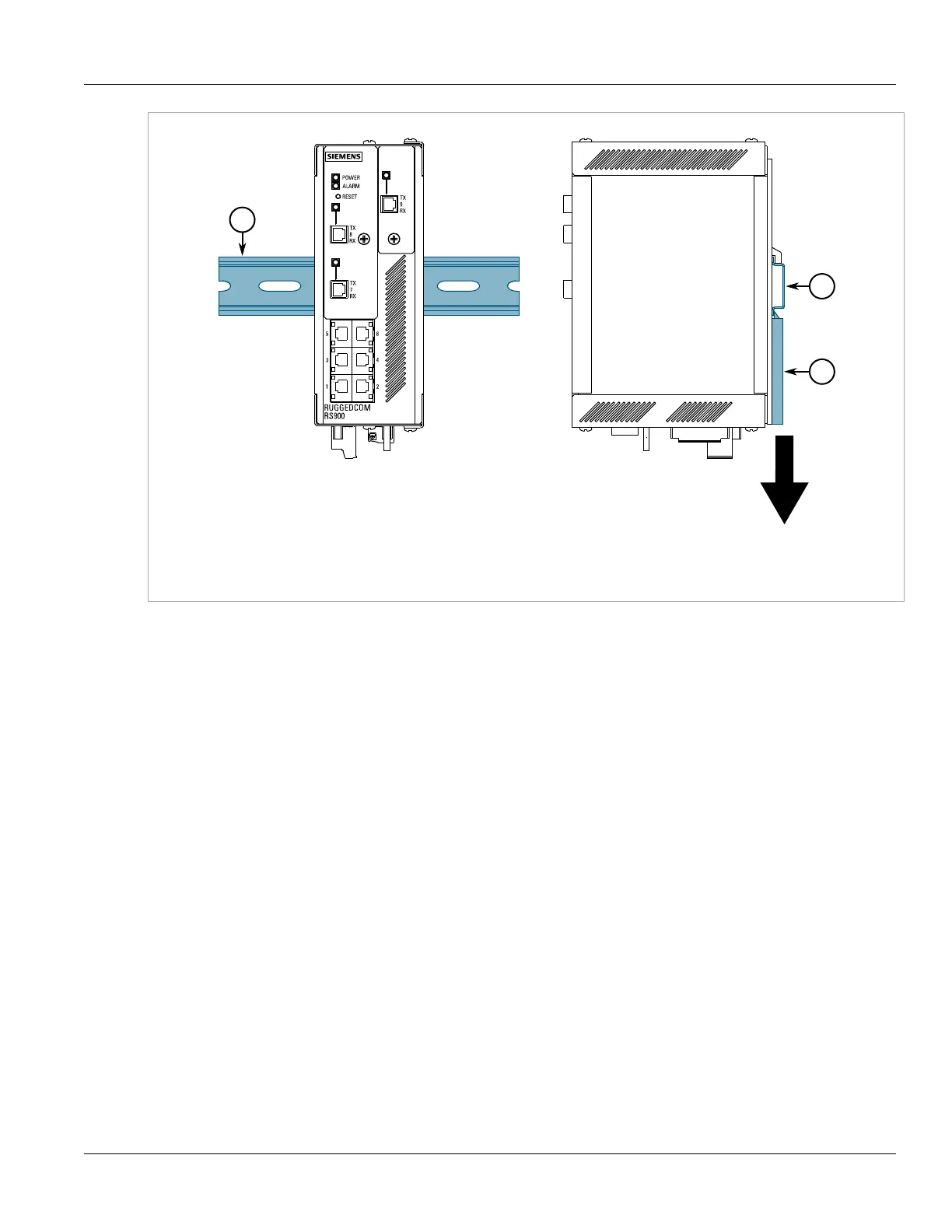

Figure3:DIN Rail Mounting
1.DIN Rail 2.DIN Rail Bracket
2. Pull the release on the bracket down and slide the device onto the DIN rail. Let go of the release to lock the
device in position. If access to the release is limited, use a slotted screwdriver or a similar tool to reach the
release.
Section2.4.2
Mounting the Device to a Panel
For panel installations, the RUGGEDCOM RS900 can be equipped with panel adapters pre-installed on the top and
bottom of the chassis. The adapters allow the device to be attached to a panel using screws.
To mount the device to a panel, do the following:
1. Prepare mounting holes in the panel where the device is to be installed.
2. Place the device against the panel and align the adapters with the mounting holes.
