Chapter 4
Communication Ports
Copper Ethernet Ports 19
Communication Ports
The RUGGEDCOM RS900 can be equipped with various types of communication ports to enhance its abilities and
performance.
1
2
3

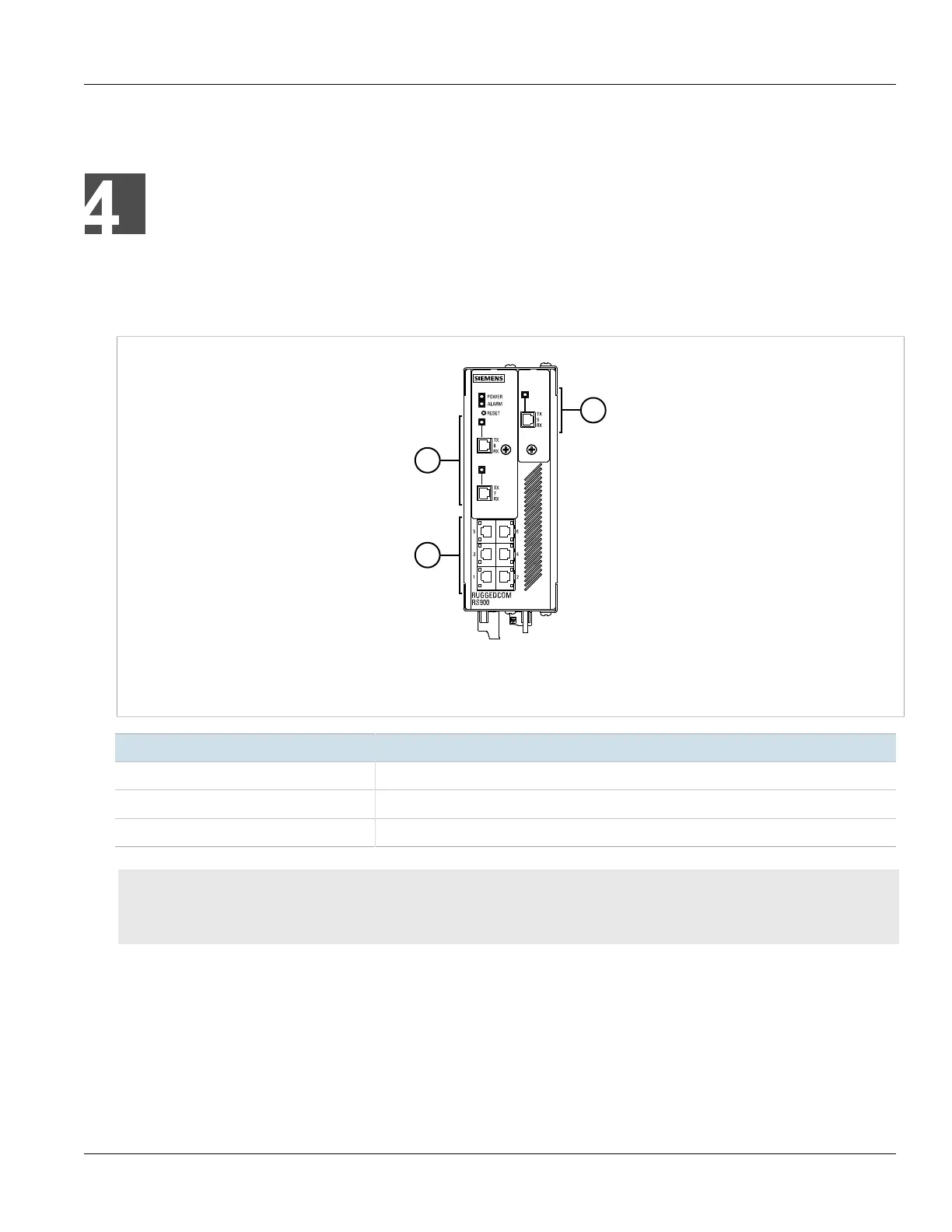

Figure11:Port Assignment
1.Ports 1 to 6 2.Ports 7 and 8 3.Port 9
Port Type
1 to 6 Copper Ethernet Ports (10/100Base-TX)
7 and 8 Copper (10/100Base-TX) or Fiber Optic (100Base-FX) Ethernet Ports
9 Fast Ethernet Port (10/100Base-TX or 100Base-FX)
CONTENTS
• Section4.1, “Copper Ethernet Ports”
• Section4.2, “Fiber Optic Ethernet Ports”
Section4.1
Copper Ethernet Ports
The RUGGEDCOM RS900 supports multiple 10/100Base-TX Ethernet ports that allow connection to standard
Category 5 (CAT-5) shielded or unshielded twisted-pair cables with RJ45 male connectors.
