Siemens S7 Series User Manual

4 Configuration and Project Engineering
Communication with S7 CPU via KNX Gateway
Entry ID: 109739689, V1.0, 06/2017
19
 Siemens AG 2017 All rights reserved
4.4 Gateway: Editing configuration files
This chapter provides a detailed description of the structure and editing of the
gateway configuration files.
You can edit the files directly in the integrated web server or download the files,
edit them with a text editor (for example, Notepad++) and then upload them back to
the gateway.
Chapter 3.3 Correlation of the gateway configuration files provides you with an
overview of how the configuration files correlate.
4.4.1 Editing in the integrated web server
The following instructions describe how to edit the configuration files directly in the
integrated web server.

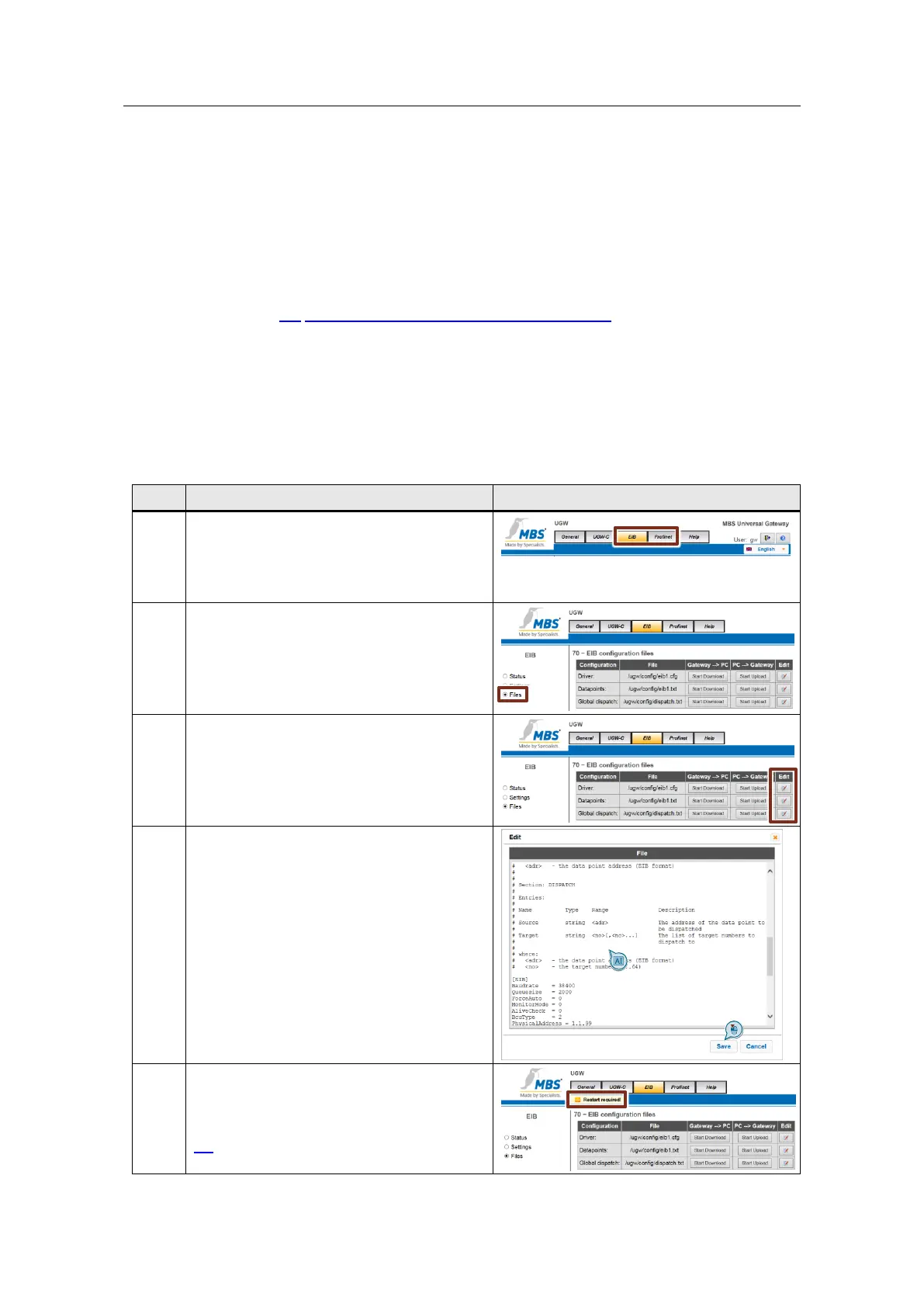

Table 4-4: Editing in the integrated web server
No.
Action
Comment
1.
From the top menu bar, select “EIB” to edit the
configuration files for the KNX protocol.
Alternative: From the top menu bar, select
“Profinet” to edit the files of the PROFINET
protocol.
2.
From the left menu bar, select “Files”.
3.
Click the Edit icon of the configuration file you
want to edit.
4.
A new window opens where you can make the
changes.
Click “Save” to save the changes.
5.
After saving, the window closes automatically
and the “Restart required!” message appears.
Restart the gateway as described in Chapter
4.6.
