4 Configuration and Project Engineering
This chapter describes the configuration in STEP 7 (TIA Portal) and the
programming of the gateway configuration files.
If you want to use the sample configuration of this application example without any
changes, you can download the STEP 7 project directly to the S7-1200 CPU and
the gateway configuration to the gateway (see Chapter 5.3.1 Commissioning the
gateway).

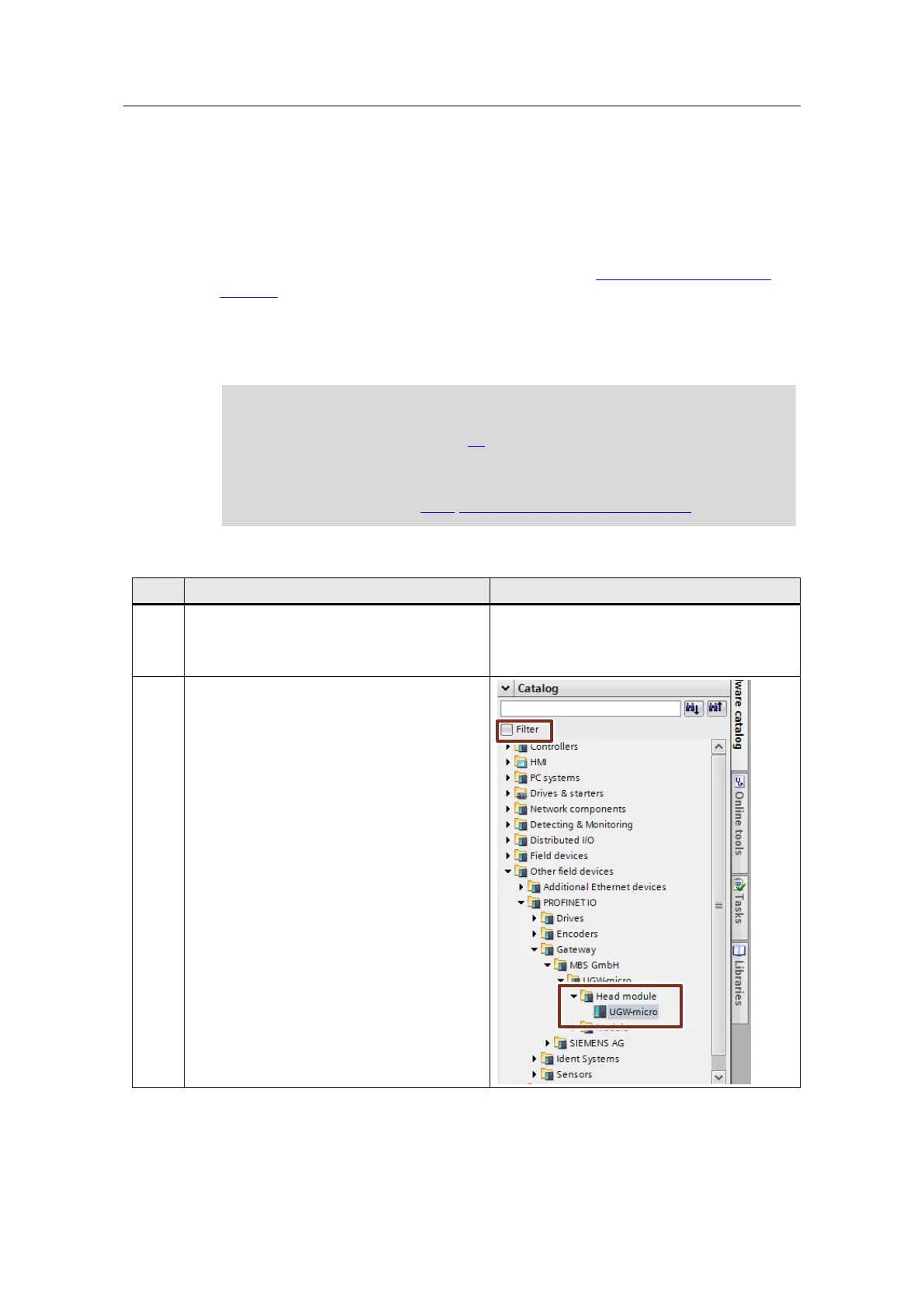

4.1 STEP 7 (TIA Portal) device configuration
Note
Before you can configure the gateway in STEP 7 (TIA Portal), you must install
the gateway’s GSD file. The GSD file can be found on the gateway’s web user
interface, “Profinet > GSDML file”. \6\ provides a description of how to install a
GSD file in TIA Portal.
When you open the supplied “MBS_KNX” STEP 7 project, the GSD file is
installed automatically, see 5.3.2 Commissioning the S7-1200 CPU.
Table 4-1: Device configuration in STEP 7 (TIA Portal)
No.
Action
Comment
1.
Create a STEP 7 (TIA Portal) project and
insert an S7-1200 CPU (S7-1214C DC/DC/DC
FW4.2).
Requirement: You have STEP 7 (TIA Portal)
V14 or higher installed on your computer.
2.
In “Devices & networks”, open the “Network
view”.
In the hardware catalog, navigate to “Head
module”, “UGW-micro”.
Make sure that the firmware version (V2.31) is
correct.

Siemens S7 Series Specifications

General

CPU	Varies by model (e.g., S7-300, S7-400, S7-1200, S7-1500)
Memory	Varies by model (e.g., 64 KB to 20 MB)
Communication Interfaces	PROFINET, PROFIBUS, Ethernet, MPI
I/O Modules	Digital Input (DI), Digital Output (DO), Analog Input (AI), Analog Output (AO)
Programming	STEP 7 (TIA Portal) programming software. Supports various programming languages and provides tools for configuration, diagnostics, and commissioning.
Power Supply	24 V DC, 120/230 V AC. Integrated or external power supply, depending on the CPU and system configuration.
Operating Temperature	Typically 0 to 60 °C (horizontal mounting), -20 to 60°C (vertical mounting), depending on the specific module.
Product Type Designation	S7-300, S7-400, S7-1200, S7-1500
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Digital Inputs	Varies by module (e.g., 8, 16, 32 channels)
Digital Outputs	Varies by module (e.g., 8, 16, 32 channels)
Analog Inputs	Varies by module (e.g., 2, 4, 8 channels)
Analog Outputs	Varies by module (e.g., 2, 4, 8 channels)
Operating Voltage	24V DC or 120/230V AC (varies by model)
CPU Processing Speed	Varies by model (e.g., 0.1 ms to 5 ns per instruction)
Real-time Clock	Integrated (varies by model)
Mounting Type	DIN rail mounting.
Protection Class	IP20
