Siemens S7 Series User Manual

5 Installation and Commissioning
Communication with S7 CPU via KNX Gateway
Entry ID: 109739689, V1.0, 06/2017
32
 Siemens AG 2017 All rights reserved
No.
Action
Comment
6.
Acknowledge the download dialogs and set
the S7-1200 CPU to RUN.
After the download, the devices have also
been assigned their PROFINET IP addresses.
-
7.

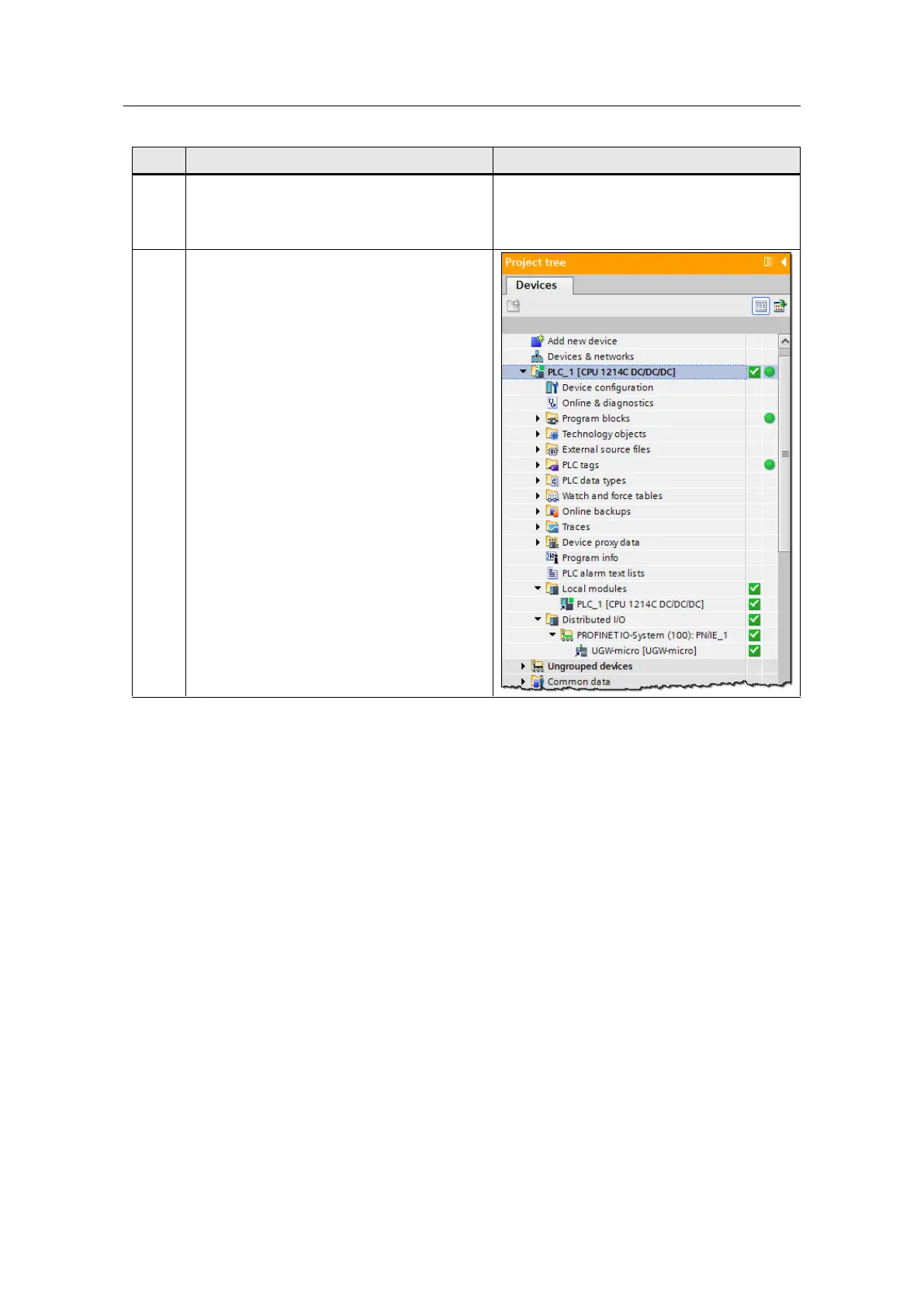

In the project tree, select the S7-1200 (PLC_1)
and in the menu bar, click “Go online”.
If everything was parameterized and
downloaded correctly, all icons are green.

Siemens S7 Series Specifications

General

CPU	Varies by model (e.g., S7-300, S7-400, S7-1200, S7-1500)
Memory	Varies by model (e.g., 64 KB to 20 MB)
Communication Interfaces	PROFINET, PROFIBUS, Ethernet, MPI
I/O Modules	Digital Input (DI), Digital Output (DO), Analog Input (AI), Analog Output (AO)
Programming	STEP 7 (TIA Portal) programming software. Supports various programming languages and provides tools for configuration, diagnostics, and commissioning.
Power Supply	24 V DC, 120/230 V AC. Integrated or external power supply, depending on the CPU and system configuration.
Operating Temperature	Typically 0 to 60 °C (horizontal mounting), -20 to 60°C (vertical mounting), depending on the specific module.
Product Type Designation	S7-300, S7-400, S7-1200, S7-1500
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Digital Inputs	Varies by module (e.g., 8, 16, 32 channels)
Digital Outputs	Varies by module (e.g., 8, 16, 32 channels)
Analog Inputs	Varies by module (e.g., 2, 4, 8 channels)
Analog Outputs	Varies by module (e.g., 2, 4, 8 channels)
Operating Voltage	24V DC or 120/230V AC (varies by model)
CPU Processing Speed	Varies by model (e.g., 0.1 ms to 5 ns per instruction)
Real-time Clock	Integrated (varies by model)
Mounting Type	DIN rail mounting.
Protection Class	IP20
