Siemens SCALANCE XP-200 - Device View of a SCALANCE XP216 and SCALANCE XP216 EEC

Description of the device
2.2 Device views
SCALANCE XP-200
26 Operating Instructions, 05/2016, C79000-G8976-C428-01
2.2.3
Device view of a SCALANCE XP216 and SCALANCE XP216EEC

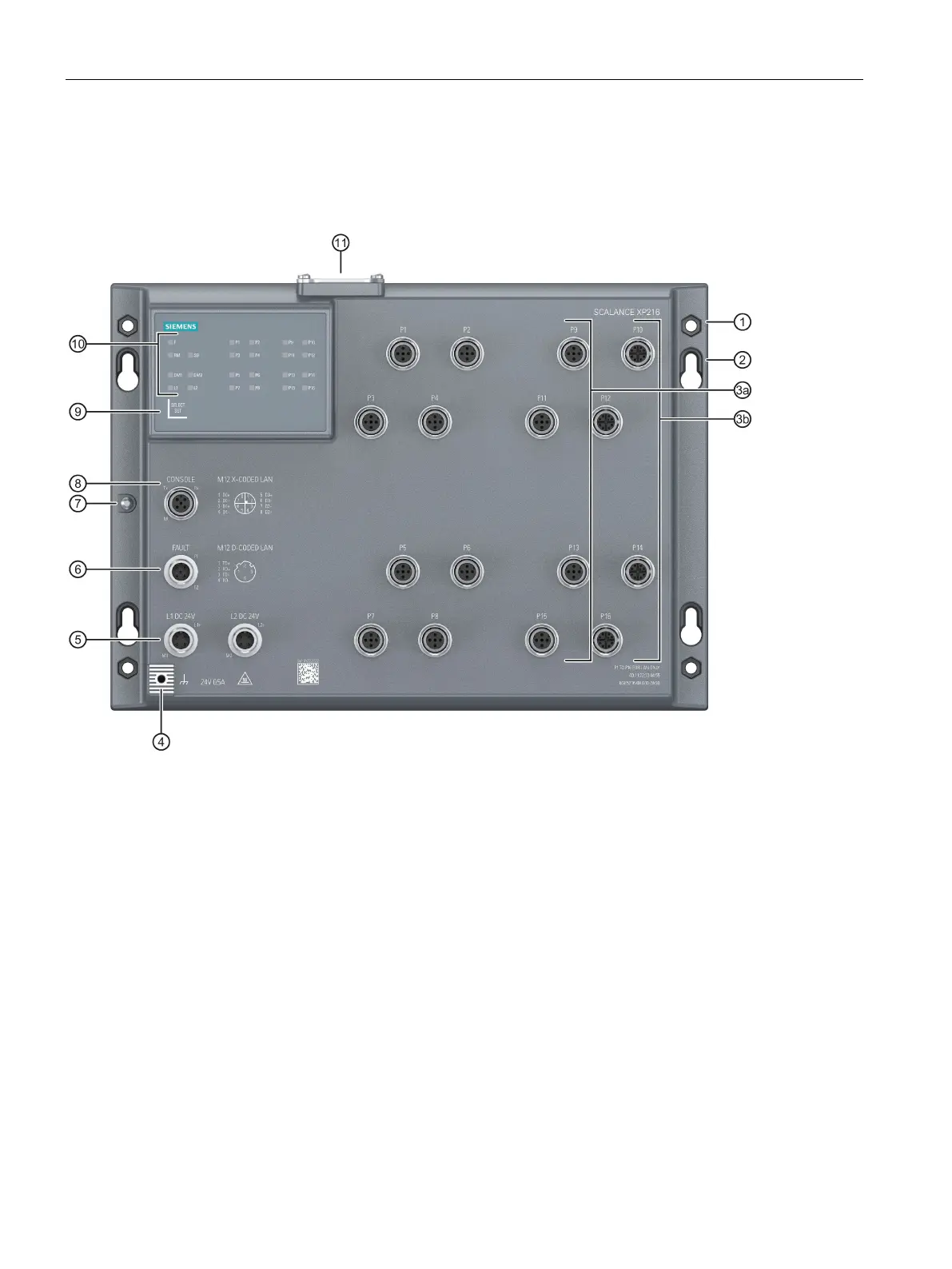

The following figure shows an overview of the components of the SCALANCE XP216 and
SCALANCE XP216EEC.
①
Cutout for hexagonal nuts
②
Keyhole hang-up mechanism
③
a
Ethernet ports for Fast Ethernet (P1 - P8, P9, P11, P13 and P15)
b
Ethernet ports for Gigabit Ethernet (P10, P12, P14 and P16)
④
Grounding point
⑤
Power supply (redundant)
⑥
Signaling contact
⑦
Securing point for covering the serial interface
⑧
Serial interface
⑨
"SELECT / SET" button
⑩
LED display
⑪
Cover for:
• C-PLUG slot
• "RESET" button
